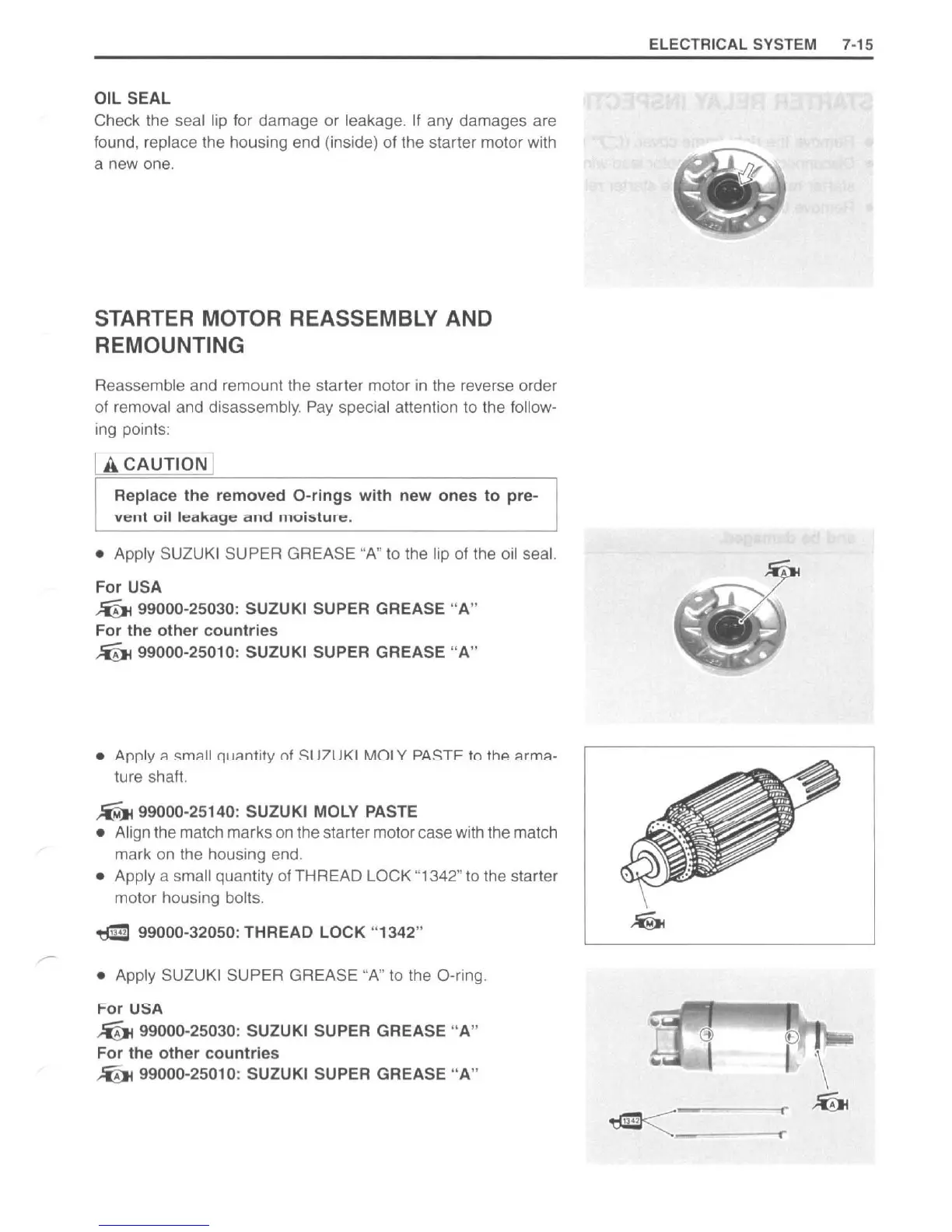

OIL SEAL
Check the seal lip for damage or leakage. If any damages are
found. replace the housing end (inside) of the starter motor with
a new one.
STARTER MOTOR REASSEMBLY AND
REMOUNTING
Reassemble and remount the starter motor in the rever se order
of removal and disassembly. Pay special attention to the follow-
ing points:
I ACAUTION l
Replace the removed a - rings with new ones to pre-
vent oil leak a ge a nd m oi~ture.
• Apply SUZUKI SUPER GREASE "A" to the lip of the oil seal.
For USA
~ 99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
~ 99000-25010: SUZUKI SUPER GREASE " A"
• Arrly ~ ~m~11 'l"~ntity nf ~1171 IK I MOl Y PA ~ TF tn thl'> ~rm,,
ture shaft.
~ 99000-25140: SUZUKI MOLY PASTE
• Align
the match mar ks on the starter motor case with the mat ch
mark on the housing end.
• Apply a small quantity of THREAD LOCK "1342" to the starter
motor housing
bolts.
~ 99000-32050: THREAD LOCK "1342"
• Apply SUZUKI
SUPER GREASE "A" to the a-ring .
For
USA
~ 99000-25030: SUZUKI SUPER GREASE " A"
For the other countries
~ 99000-25010: SUZUKI SUPER GREASE "A"
ELECTRICAL SYSTEM 7- 15
~ ------- ---- ~;
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
