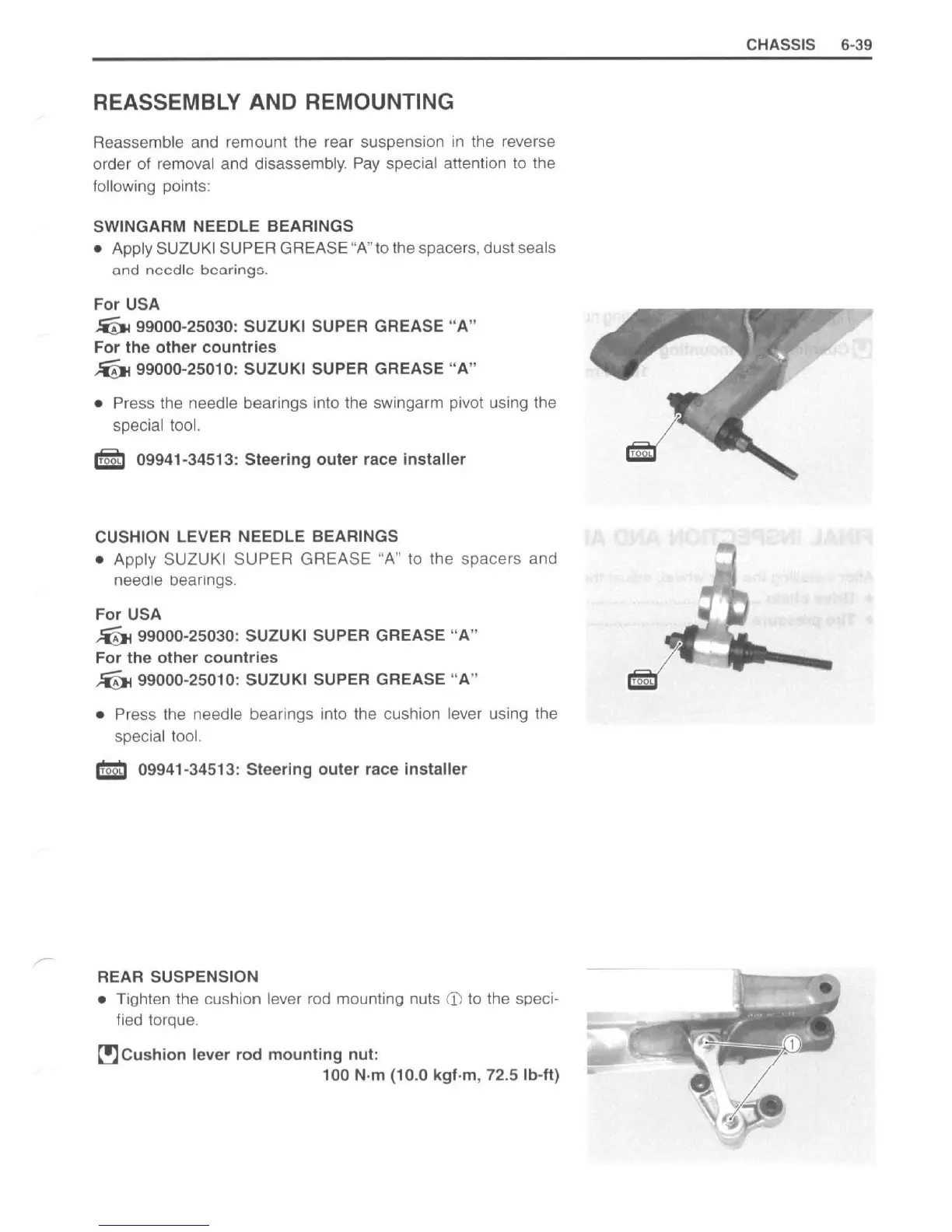

REASSEMBLY AND REMOUNTING
Reassemble and remount the rear suspension in the reverse
order of
removal and disassembly. Pay special attention to the
following points:
SWINGARM NEEDLE BEARINGS
• Apply SUZUKI SUPER GREASE " A" to the spacers, dust seals
and needle bcoringo .
For USA
~ 99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
.0 99000-25010: SUZUKI SUPER GREASE "A"
• Press the needle bearings into the swingarm pivot using the
special tool.
S 09941-34513: Steering outer race installer
CUSHION LEVER NEEDLE BEARINGS
• Apply SUZUKI SUPER GREASE "A" to the spacers and
needle bearings.
For USA
.0 99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
.0 99000-25010: SUZUKI SUPER GREASE "A"
• Press the needle bearings into the cushion lever using the
special tool.
I!iiI 09941-34513: Steering outer race installer
REAR SUSPENSION
• Tighten the cushion lever rod mounting nuts CD to the speci-
fied torque.
(!) Cushion lever rod mounting nut:
100 N·m (10.0 kgj.m , 72.5 Ib-ft)
CHASSIS
6-39
