ENGINE 3-53

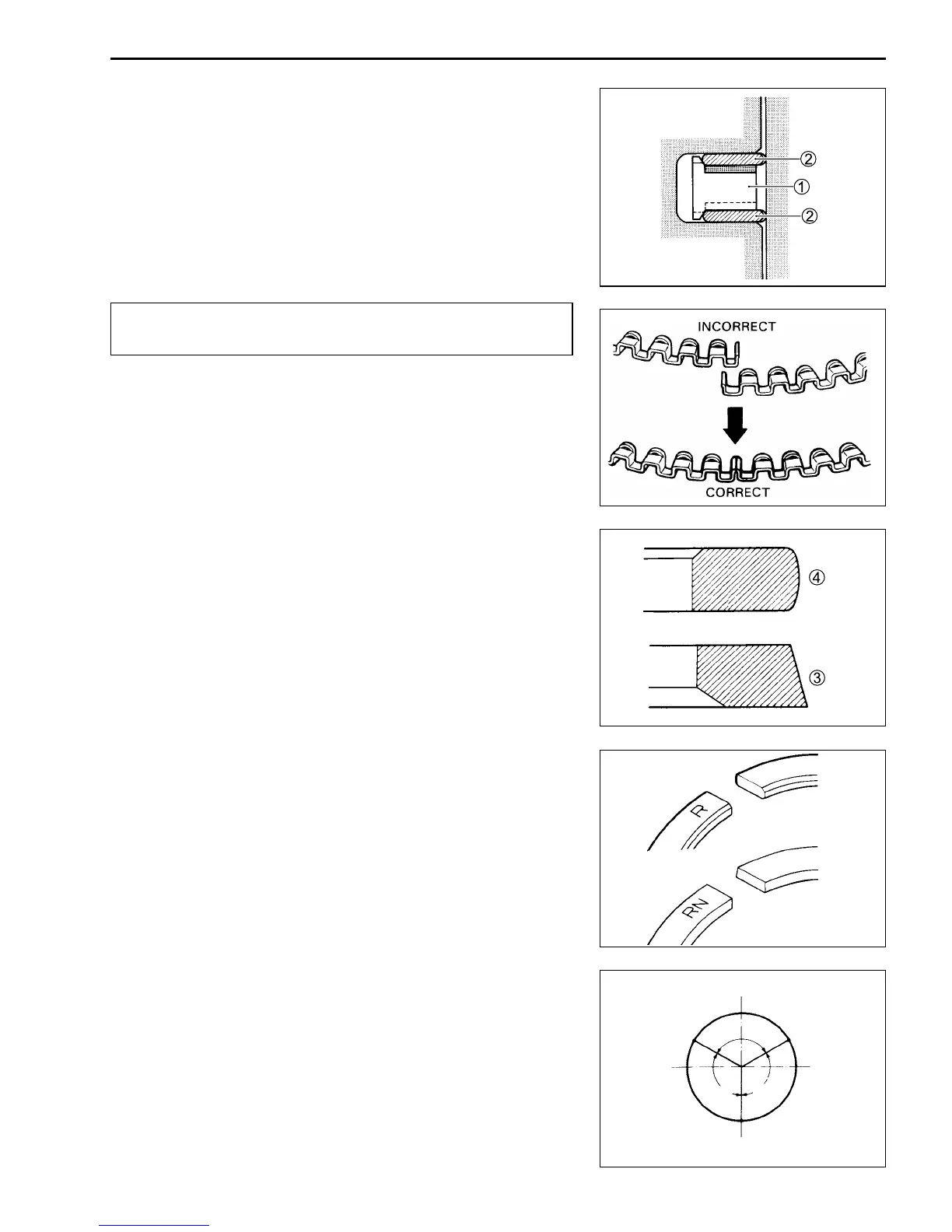

PISTON RING REASSEMBLY
• Install the piston rings in the order of oil ring, 2nd ring and 1st
ring.
• The first member to go into the oil ring groove is a spacer 1.
After placing the spacer, fit the two side rails 2.
NOTE:
Side designations, top and bottom, are not applied to the spacer
and side rails: you can position each either way.
#
When installing the spacer, be careful not to allow its
two ends to overlap in the groove.
• Install the 2nd ring 3 and the 1st ring 4.
NOTE:
1st ring and 2nd ring differ in shape.
• 1st ring and 2nd ring have letters “R” and “RN” marked on the
side. Be sure to bring the marked side to the top when fitting
them to the piston.
• Position the gaps of the three rings as shown. Before inserting
each piston into the cylinder, check that the gaps are so lo-
cated.
1st ring
2nd ring
• 2nd ring
• Lower side
rail
• Upper side
rail
• 1st ring
• Spacer
EX
IN
120°
120°
120°
