4-80 FI SYSTEM AND INTAKE AIR SYSTEM
THROTTLE POSITION SENSOR (TPS) SETTING
After all adjustments are completed, check or adjust the TPS set-
ting condition.
(Refer to page 4-28 for TPS setting procedure.)
THROTTLE CABLE ADJUSTMENT
NOTE:
Minor adjustment can be made by the throttle grip side adjuster.
(
2-16)

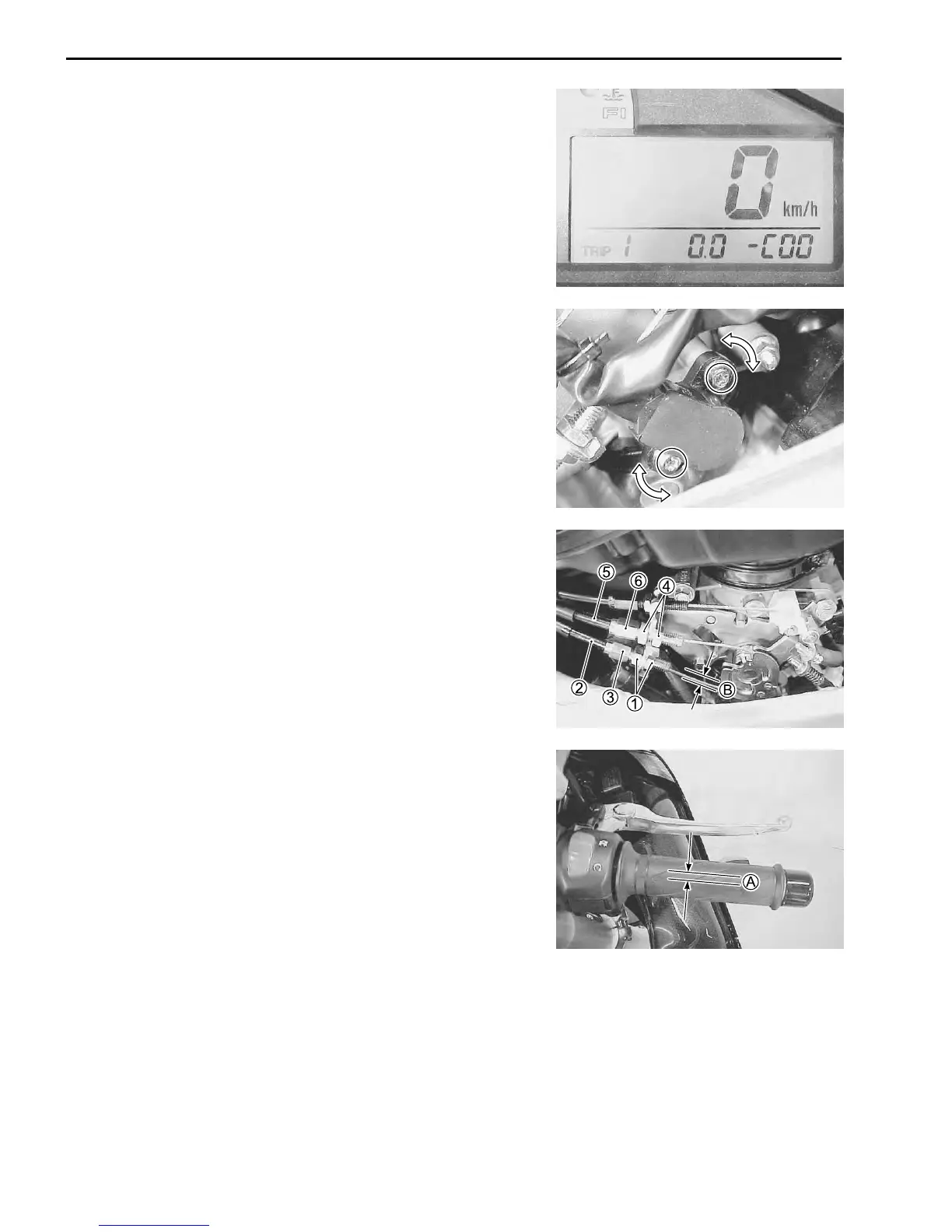

MAJOR ADJUSTMENT
• Loosen the lock nuts 1 of the throttle returning cable 2.
• Turn the returning cable adjuster 3 to obtain proper cable play.
• Loosen the lock nuts 4 of the throttle pulling cable 5.
• Turn the pulling cable adjuster 6 in or out until the throttle cable
play A should be 2.0 – 4.0 mm (0.08 – 0.16 in) at the throttle
grip.
• Tighten the lock nuts 4 securely while holding the adjuster 6.
• While holding the throttle grip at the fully closed position, slowly
turn the returning cable adjuster 3 to obtain a cable slack B of
1.0 mm (0.04 in).
• Tighten the lock nuts 1 securely.
To Next Page
