COOLING AND LUBRICATION SYSTEM 5-15
REASSEMBLY AND INSTALLATION

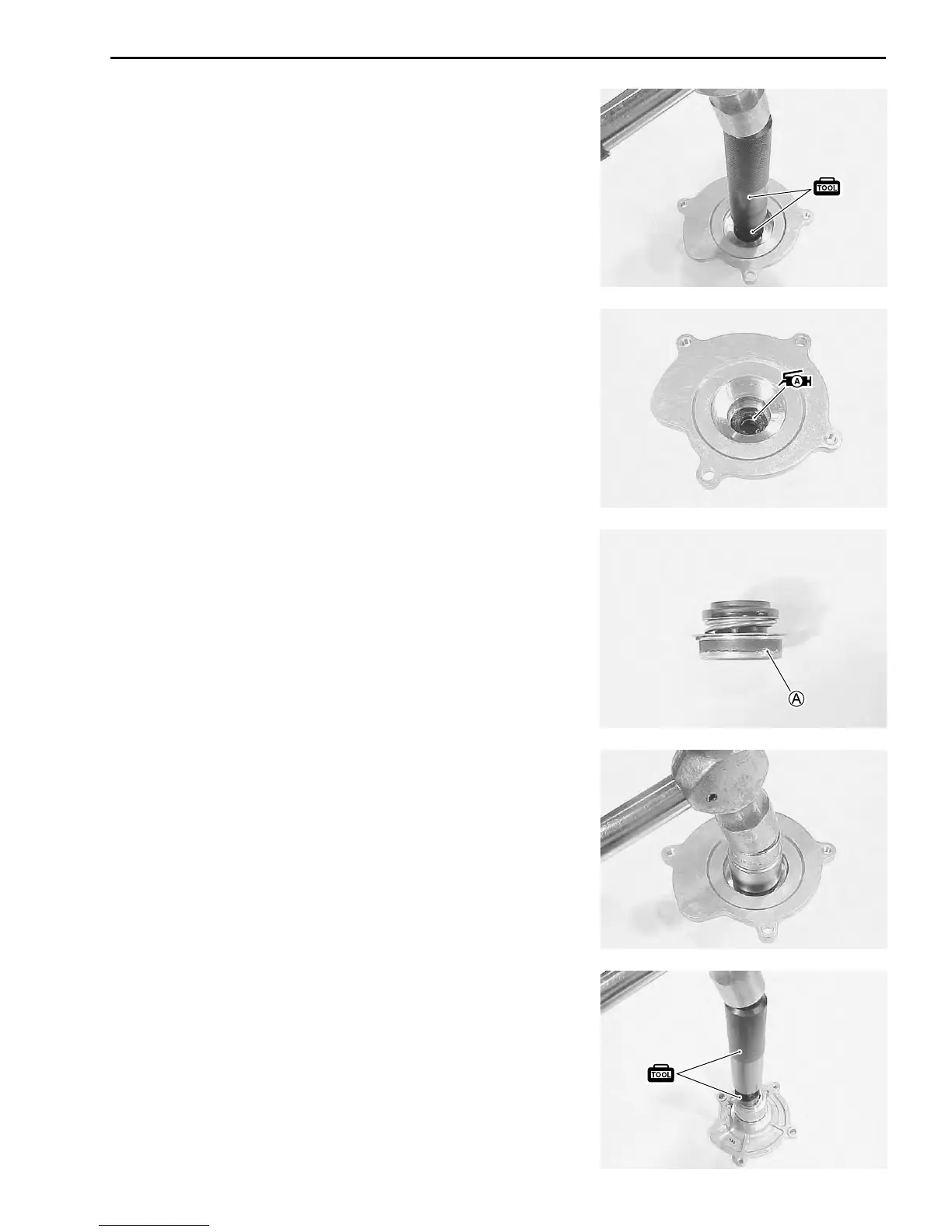

• Install the oil seal using the special tool.
[ 09913-70210: Bearing installer set (
φ
20)
NOTE:
The stamped mark on the oil seal faces outside.
• Apply a small quantity of the SUZUKI SUPER GREASE “A” to
the oil seal lip.
W 99000-25030: SUZUKI SUPER GREASE “A”
• Install the new mechanical seal using a suitable size socket
wrench.
NOTE:
The new mechanical seal has been applied the sealer
A
.
• Install the new bearing using the special tool.
[ 09913-70210: Bearing installer set (
φ
25)
NOTE:
The stamped mark on the bearing faces crankcase side.
To Next Page
