6-68 CHASSIS

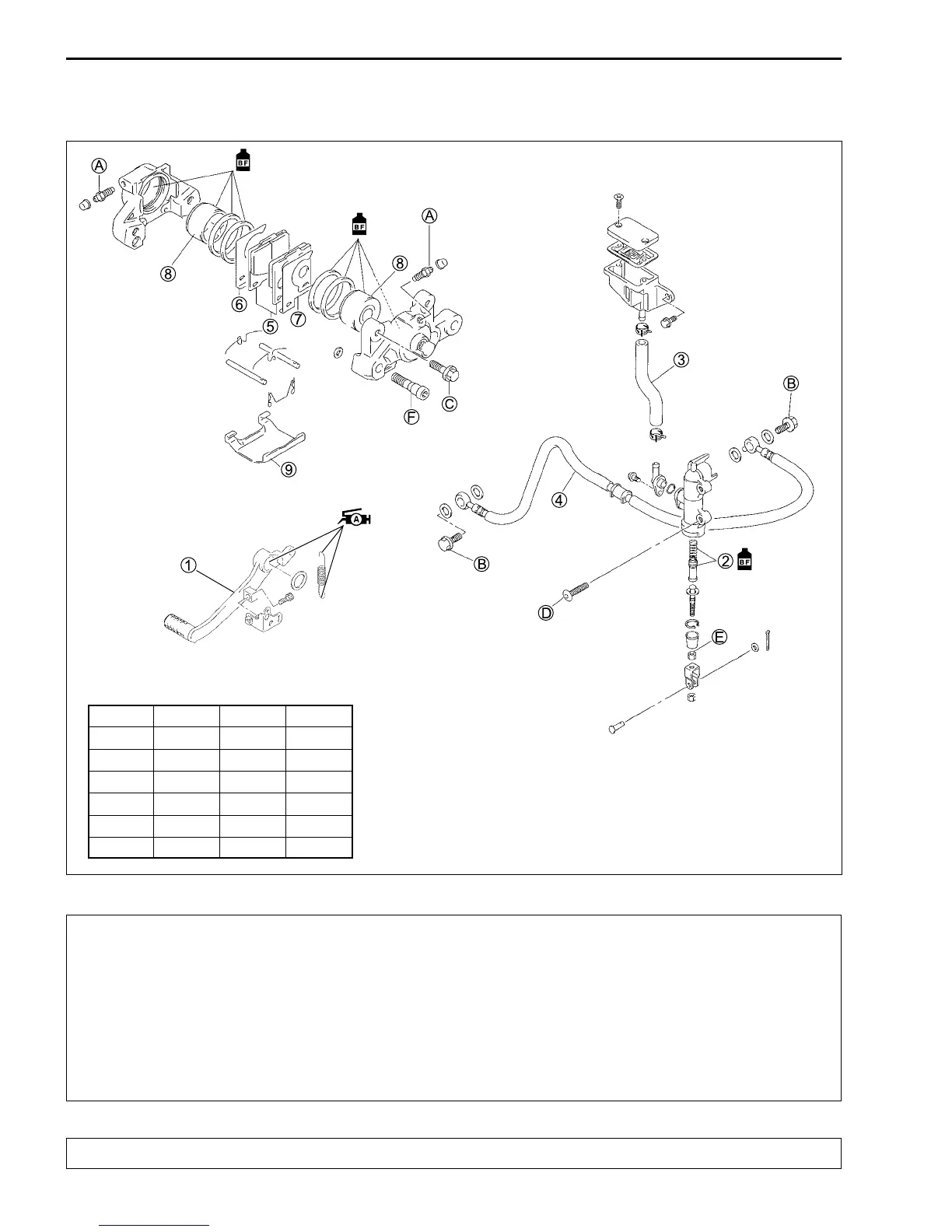

REAR BRAKE
CONSTRUCTION
!
ITEM N
.
m kgf
.
m lb-ft
A 8 0.8 6.0
B 23 2.3 16.5
C 25 2.5 18.1
D 10 1.0 7.0
E 18 1.8 13.0
F 30 3.0 21.5
"
* This brake system is filled with an ethylene glycol-based DOT 4 brake fluid. Do not use or mix
different types of fluid such as silicone-based or petroleum-based.
* Do not use any brake fluid taken from old, used or unsealed containers. Never reuse brake fluid
left over from the last servicing or stored for long periods.
* When storing the brake fluid, seal the container completely and keep away from children.
* When replenishing brake fluid, take care not to get dust into fluid.
* When washing brake components, use fresh brake fluid. Never use cleaning solvent.
* A contaminated brake disc or brake pad reduces braking performance. Discard contaminated
pads and clean the disc with high quality brake cleaner or neutral detergent.
#
Handle brake fluid with care: the fluid reacts chemically with paint, plastics, rubber materials etc.
1 Brake pedal
2 Piston/cup set
3 Reservoir tank hose
4 Brake hose
5 Pad
6 Inner shim
7 Outer shim
8 Piston
9 Brake pad cover
A Caliper air bleeder valve
B Brake hose union bolt
C Rear brake caliper mounting bolt
D Rear brake master cylinder mounting bolt
E Rear brake master cylinder rod lock nut
F Rear brake caliper housing bolt
