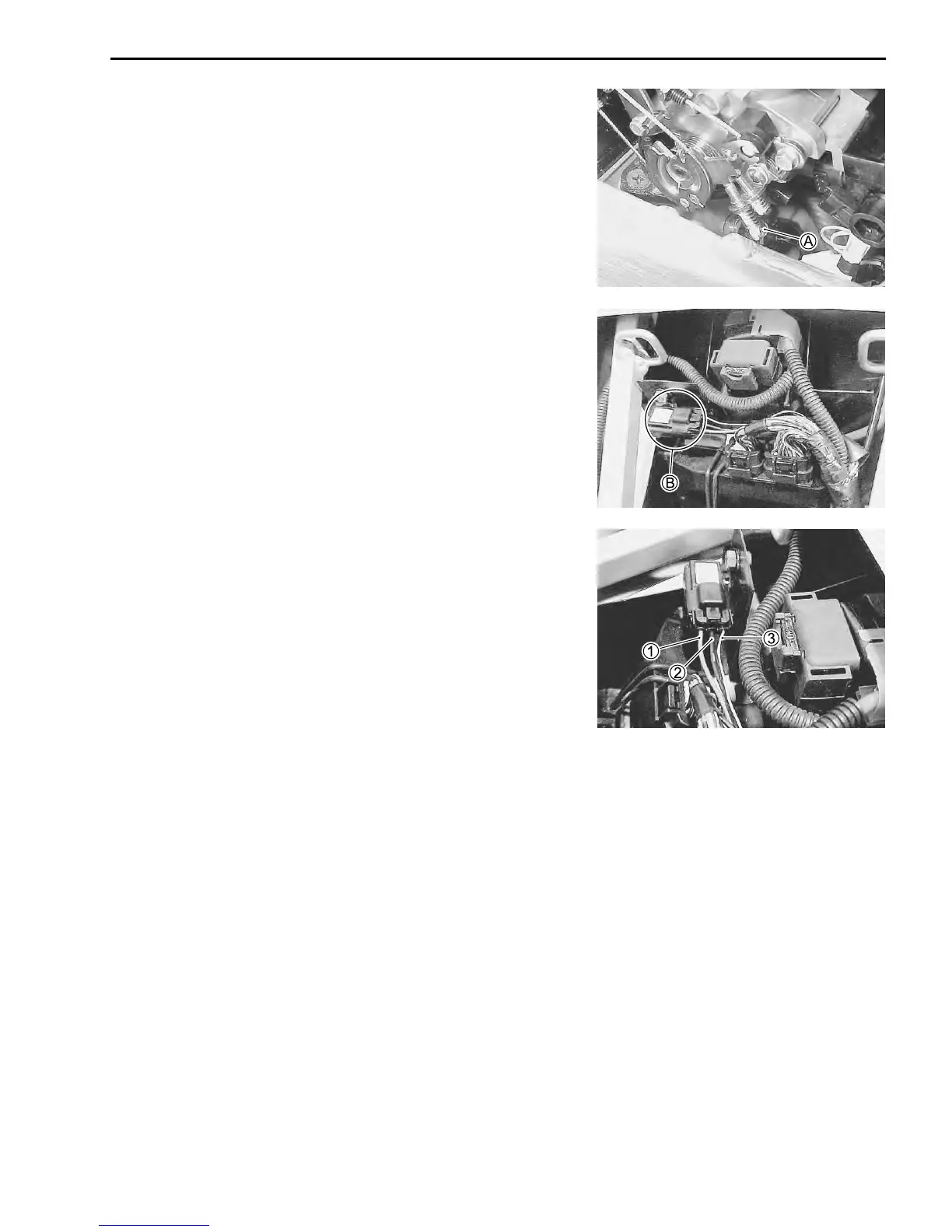

GSX-R750K1 (’01-MODEL) 10-15
THROTTLE STOP SCREW
The throttle stop screw A is installed on the No.1 throttle body.
• Remove the front seat.
• Lift and support the fuel tank.
• Ajust the engine idle speed. (2-15)
AP SENSOR
The AP sensor B (Atmospheric pressure sensor) is located over
the ECM.
AP SENSOR WIRE COLOR
1 R ............................ Input
2 G/Y or B................. Output
3 B/Br or B/W ........... Ground
NOTE:
R: Red, B: Black
G/Y: Green with Yellow tracer
B/Br: Black with Brown tracer
B/W: Black with White tracer
AP SENSOR INSPECTION 4-42
