PERIODIC MAINTENANCE 2-17
MAJOR ADJUSTMENT

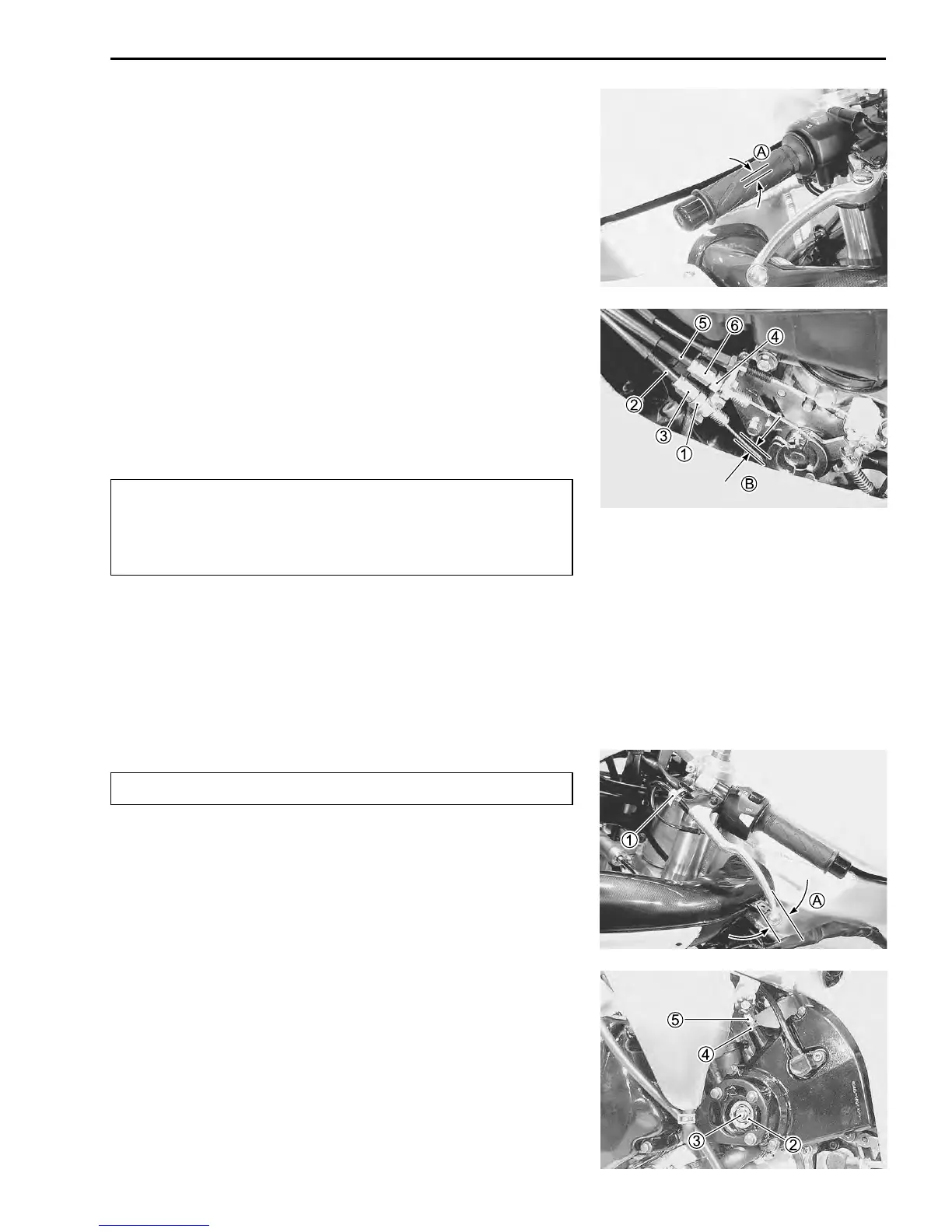

• Lift and support the fuel tank with its prop stay. ( 4-51)
• Loosen the lock nuts 1 of the throttle returning cable 2.
• Turn the returning cable adjuster 3 to obtain proper cable
play.
• Loosen the lock nuts 4 of the throttle pulling cable 5.
• Turn the pulling cable adjuster 6 in or out until the throttle
cable play A should be 2.0 – 4.0 mm (0.08 – 0.16 in) at the
throttle grip.
• Tighten the lock nuts 4 securely while holding the adjuster
6.
Throttle cable play A: 2.0 – 4.0 mm (0.08 – 0.16 in)
• While holding the throttle grip at the fully closed position, slowly
turn the returning cable adjuster 3 to obtain a cable slack B
of 1.0 mm (0.04 in).
• Tighten the lock nuts 1 securely.
"
After the adjustment is completed, check that handle-
bar movement does not raise the engine idle speed and
that the throttle grip returns smoothly and automati-
cally.
CLUTCH
Inspect Every 6 000 km (4 000 miles, 6 months).
• Remove the left under cowling. (6-5)
• Remove the engine coolant reservoir tank.
• Turn in the adjuster 1 all the way into the clutch lever assem-
bly.
• Remove the clutch release cover.
• Loosen the lock nut 2 and turn out the adjusting screw 3 two
or three rotations.
• From that position, slowly turn in the adjusting screw 3 to feel
resistance.
• From this position, turn out the adjusting screw 3 ¼ rotations,
and tighten the lock nut 2.
• Loosen the lock nut 4, and turn the cable adjuster 5 to ob-
tain 10 – 15 mm (0.4 – 0.6 in) of free play A at the clutch lever
end.
• Tighten the lock nuts 4.
Clutch lever play A: 10 – 15 mm (0.4 – 0.6 in)
Clutch release screw: ¼ turns out
