CHASSIS 6-11

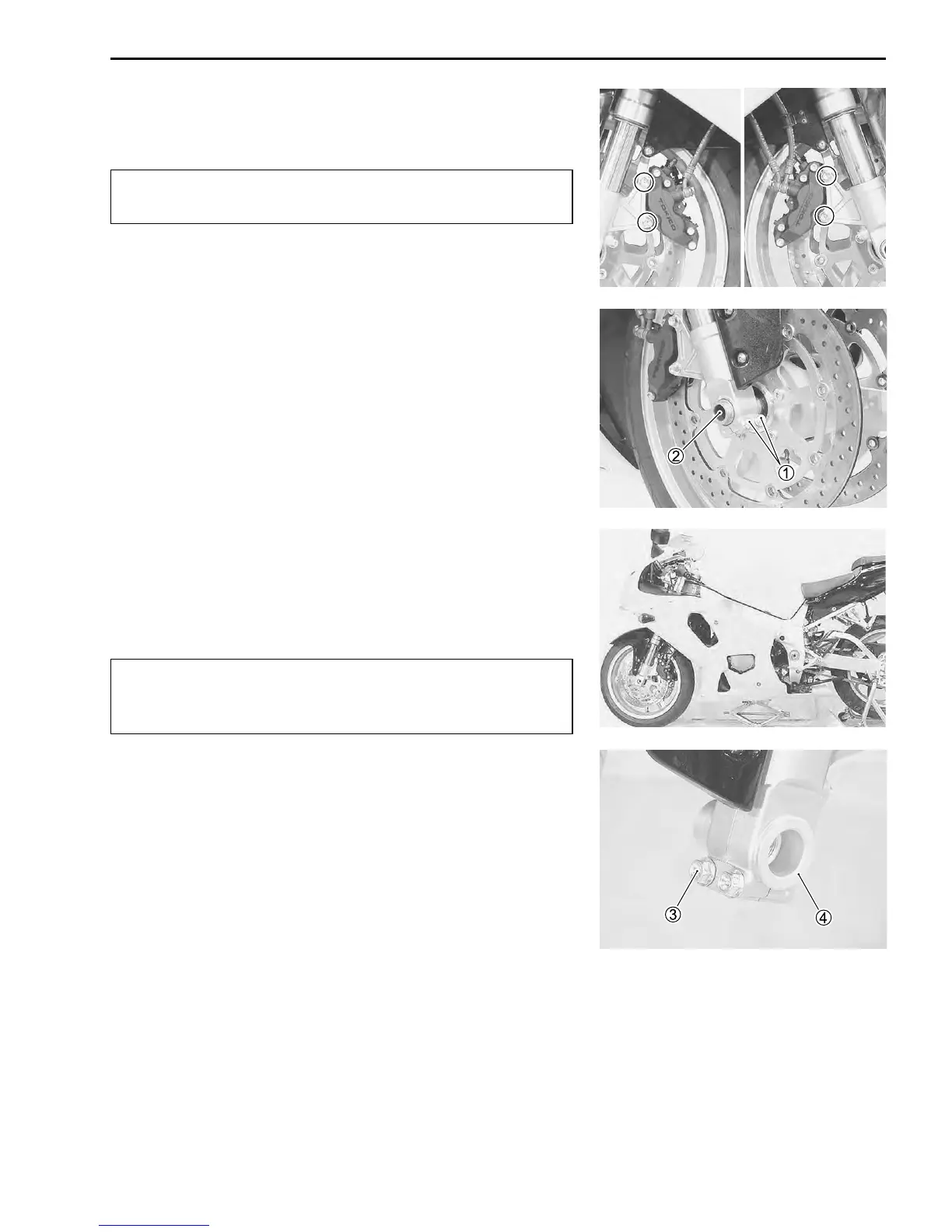

REMOVAL
• Remove the brake calipers, left and right.
#
Do not operate the brake lever while removing the cali-
pers.
• Loosen two axle pinch bolts 1 on the right front fork leg.
• Loosen the front axle 2.
• Raise the front wheel off the ground and support the motor-
cycle with a jack or a wooden block.
NOTE:
Remove the left and right under cowlings, if necessary. (
6-7)
#
Do not work by using side stand. Do not support the
motorcycle with exhaust pipe. Make sure that the motor-
cycle is supported securely.
• Remove the front axle and the front wheel.
NOTE:
After removing the front wheel, fit the calipers temporarily to the
original positions.
• Loosen two axle pinch bolts 3 on the left front fork leg and
remove the spacer nut 4.
To Next Page
