6-58 CHASSIS

• Assemble the cushion rod onto the swingarm. ( 6-58)

! Cushion rod mounting nut: 78 N

m (7.8 kgf

m, 56.5 lb-ft)

• Install the torque link and tighten the rear torque link nut.

! Torque link nut (Front): 28 N

m (2.8 kgf

m, 20.0 lb-ft)

REMOUNTING

Remount the swingarm in the reverse order of disassembly and

removal, and pay attention to the following points.

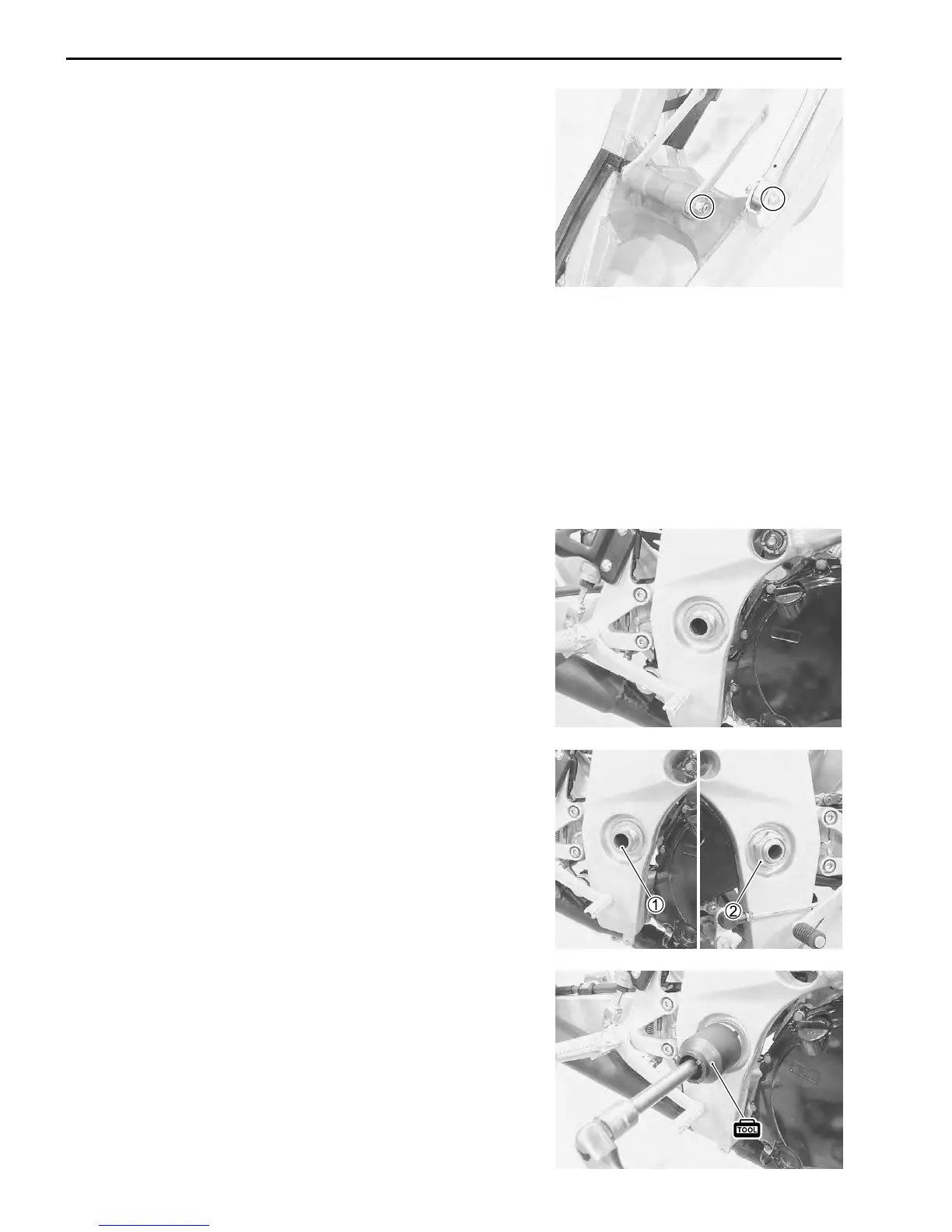

SWINGARM PIVOT THRUST CLEARANCE ADJUSTMENT

Adjust swingarm pivot thrust clearance as following procedure.

• Insert the swingarm pivot shaft and tighten it to the specified

torque.

! Swingarm pivot shaft: 15 N

m (1.5 kgf

m, 11.0 lb-ft)

• Hold the swingarm pivot shaft 1 with a 27 mm socket wrench

and tighten the swingarm pivot nut 2 with a 36 mm socket

wrench to the specified torque.

! Swingarm pivot nut: 100 N

m (10.0 kgf

m, 72.5 lb-ft)

• Tighten the swingarm pivot lock nut to the specified torque

with the special tool.

[[

[ 09940-14970: Swingarm pivot thrust adjuster lock nut

wrench

! Swingarm pivot lock nut: 90 N

m (9.0 kgf

m, 65.0 lb-ft)
