4-72 FI SYSTEM AND INTAKE AIR SYSTEM

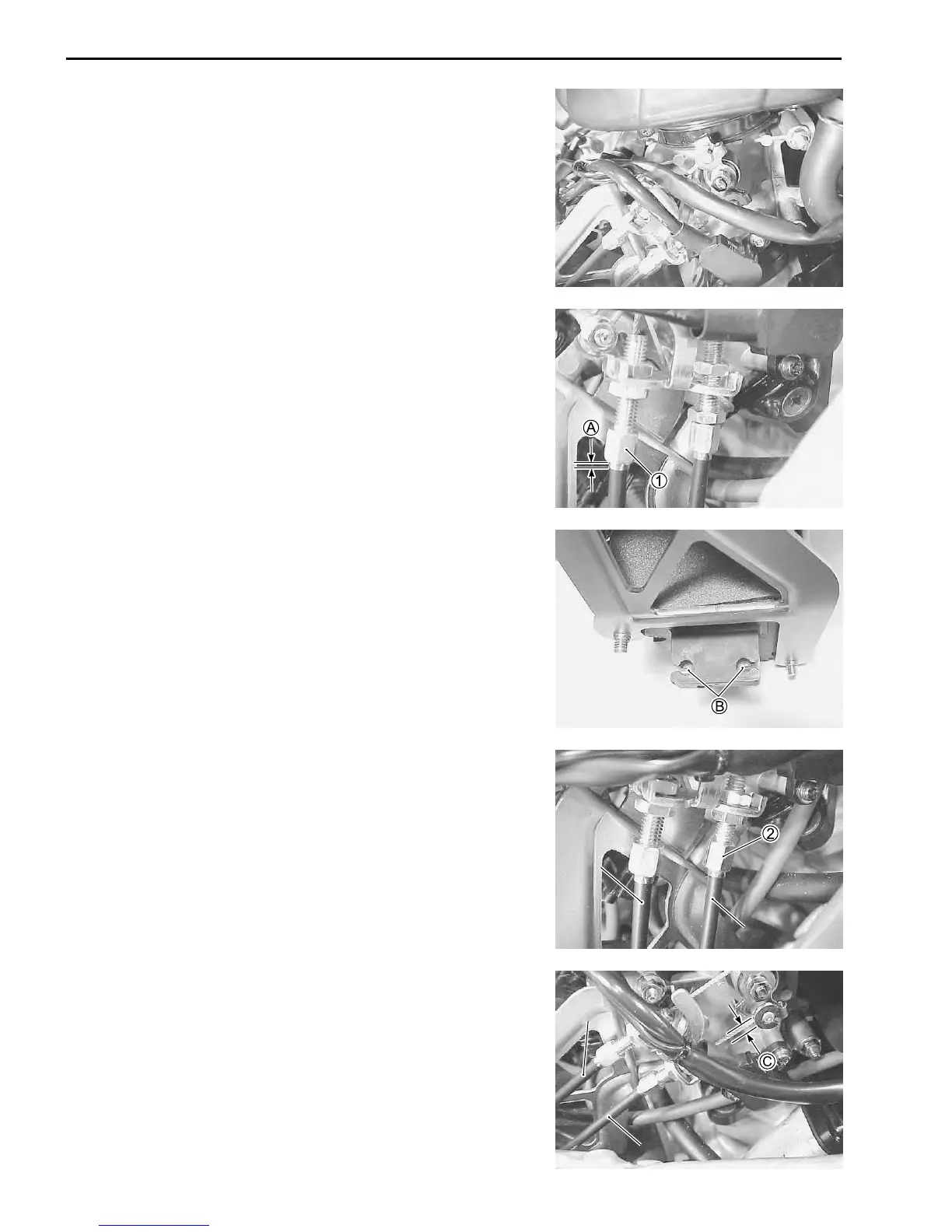

STV ACTUATOR ADJUSTMENT
1st step:
Set the STV actuator to adjustment position. (4-61)
2nd step:
Turn out the No.2 cable adjuster 1 until the outer cable play A
becomes zero.
NOTE:
Make sure that outer cable end is fixed into the rubber stopper
B
.
3rd step:
Turn out the No.1 cable adjuster 2 to obtain a cable slack C of
0 1.0 mm (0 0.04 in).
No.2 cable
No.1 cable
No.2 cable
No.1 cable
0 1.0 mm
(0 0.04 in)
0 1.0 mm
(0 0.04 in)
No.2
cable
No.1 cable
No.2
cable
No
.1 cable
