6-62 CHASSIS

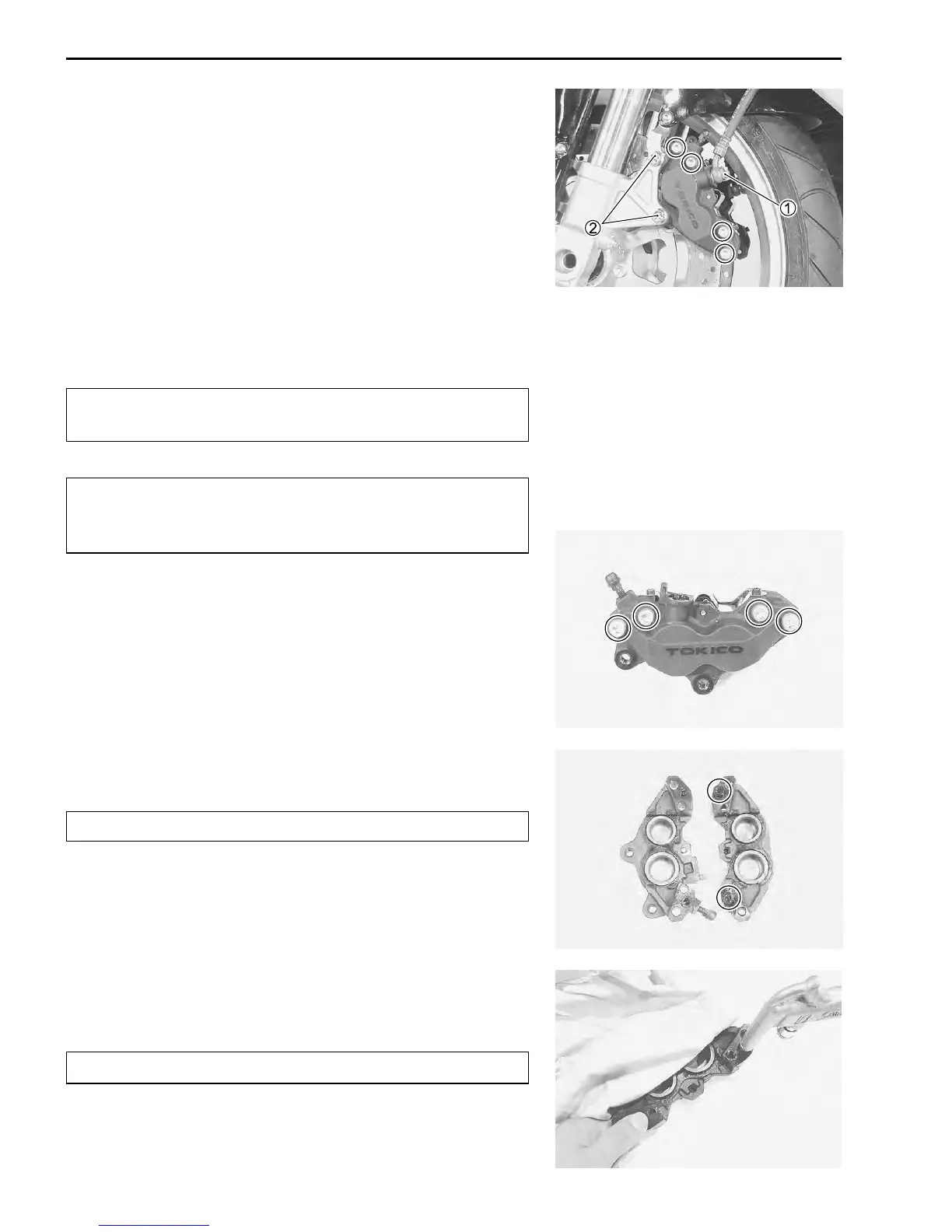

CALIPER REMOVAL AND DISASSEMBLY
• Remove the brake hose from the caliper by removing the union
bolt 1 and catch the brake fluid in a suitable receptacle.
NOTE:
Place a rag underneath the union bolt on the brake caliper to
catch any spilt brake fluid.
• Remove the brake caliper by removing the caliper mounting
bolts 2.
NOTE:
Slightly loosen the caliper housing bolts before removing the
caliper mounting bolts to facilitate later disassembly.
#
Never reuse the brake fluid left over from previous ser-
vicing and stored for long periods of time.
"
Brake fluid, if it leaks, will interfere with safe running
and discolor painted surfaces. Check the brake hose
and hose joints for cracks and fluid leakage.
• Remove the O-rings.
#
Replace the O-rings with new ones.
• Place a rag over the pistons to prevent it from popping out
and then force out the pistons using compressed air.
#
Do not use high pressure air to prevent piston damage.
• Remove the brake pads. ( 6-61)
• Separate the caliper halves by removing the caliper housing
bolts.
