GSX-R750K2 (’02-MODEL) 11-23
THROTTLE VALVE SYNCHRONIZATION
Check and adjust the throttle valve synchronization among four
cylinders.

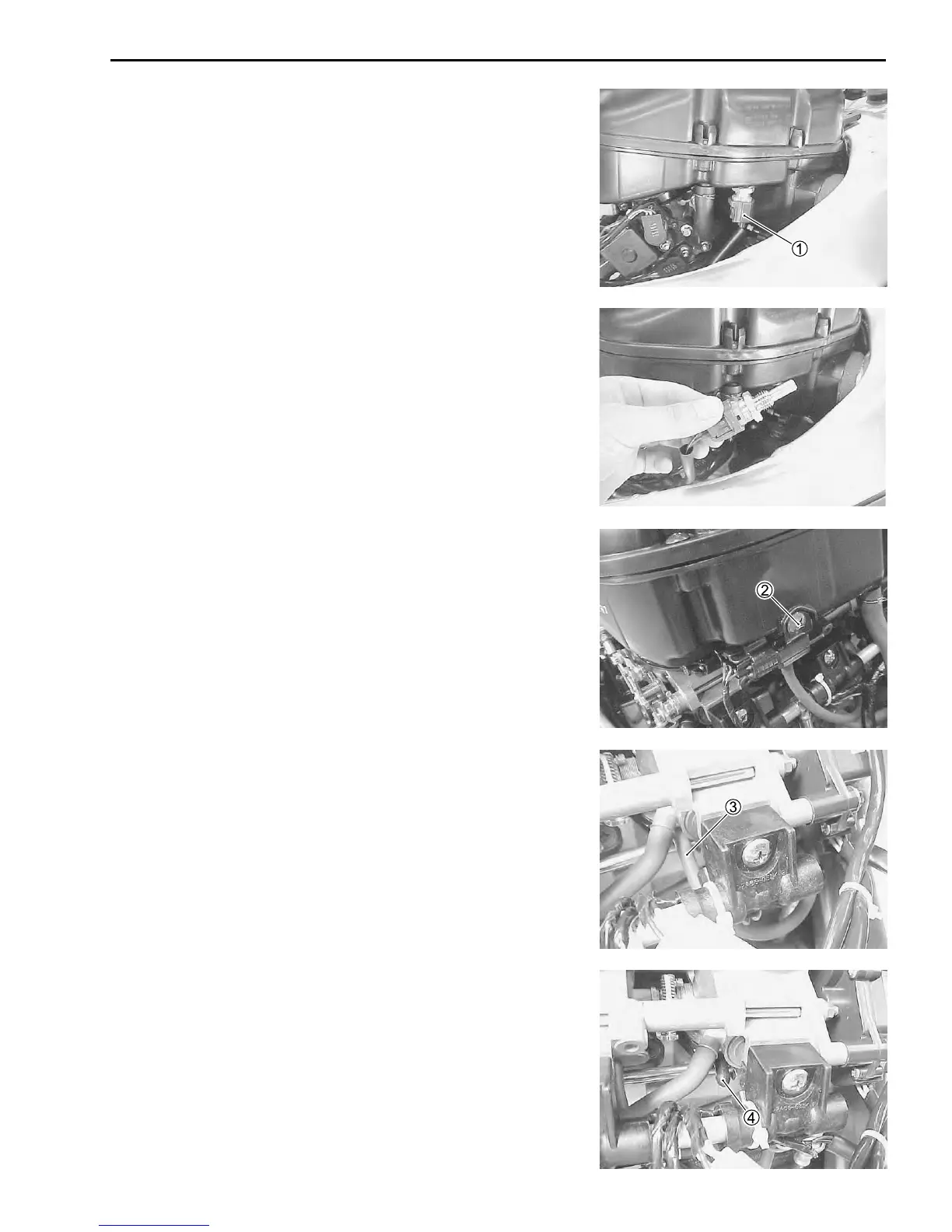

CALIBRATING EACH GAUGE
• Lift and support the fuel tank.
• Start up the engine and run it in idling condition for warming up.
• Stop the warmed-up engine.
• Disconnect the IAT sensor coupler 1 and remove the IAT sen-
sor from the air cleaner box.
• Connect the removed IAT sensor to its coupler and place it on
the frame.
• Remove the IAP sensor mounting screw 2.
• Remove the air cleaner box.
• Diconnect the PAIR vacuum hose 3 from the No. 4 throttle body.
• Connect a proper rubber cap 4 to the nipple on the No. 4 throttle
body.
To Next Page
