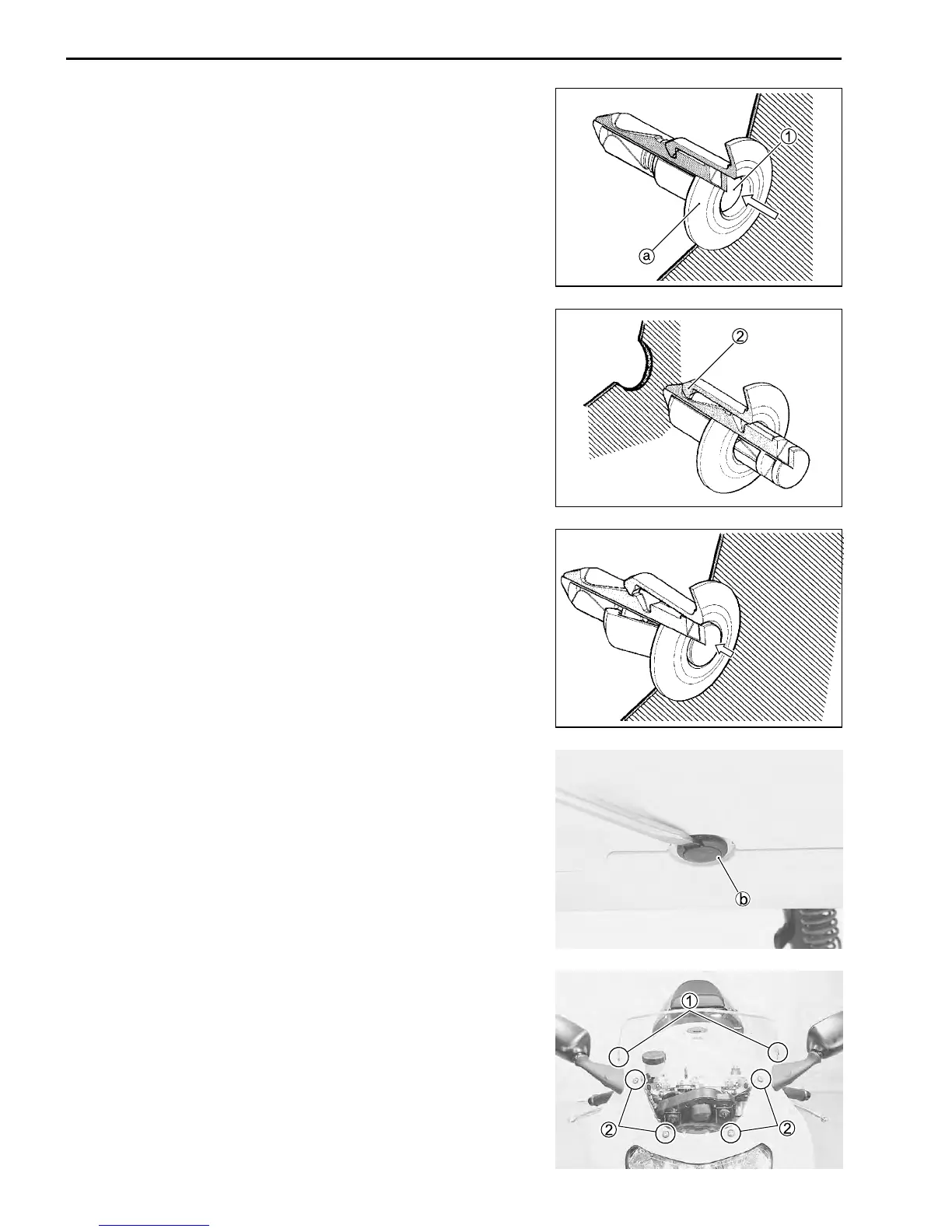

6-4 CHASSIS
FASTENER REMOVAL AND REINSTALLATION
FASTENER a
REMOVAL
• Depress the head of fasteners center piece 1.
• Pull out the fastener.
INSTALLATION
• Let the center piece stick out toward the head so that the pawls
2 close.
• Insert the fastener into the installation hole.
NOTE:
To prevent the pawl
2
from damage, insert the fastener all the
way into the installation hole.
• Push in the head of center piece until it becomes flush with the
fastener outside face.
FASTENER b
REMOVAL
• Pull the head of fastener center piece
• Pull out the fastener.
INSTALLATION
• Let the center piece stick out toward the head so that the pawls
close.
• Insert the fastener into the installation hole.
• Push in the head of center piece.
SCREEN
• Remove the bolts 1.
• With the bolts 2 loosened, take out the bolts and nuts, and
remove the screen.
