CHASSIS 6-17

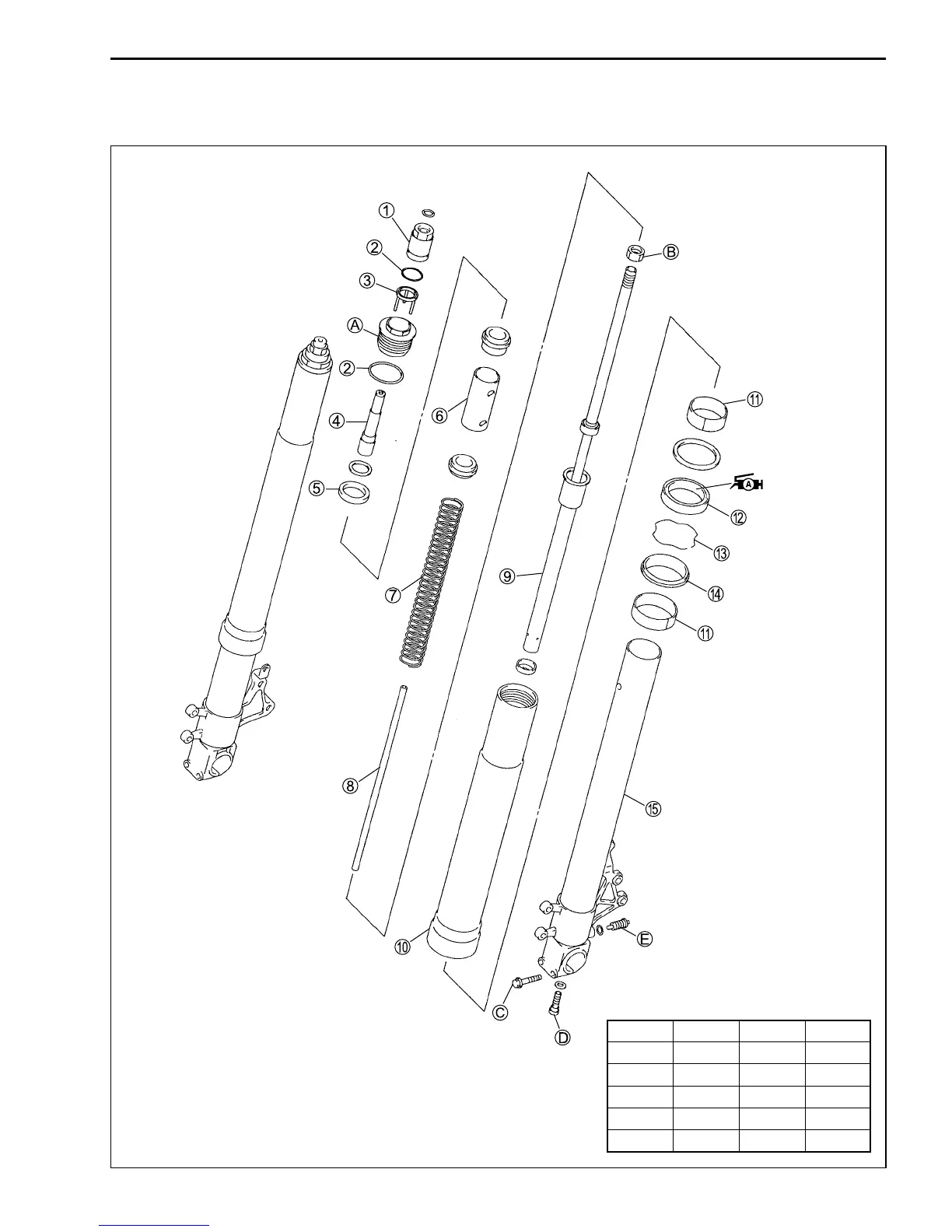

FRONT FORK

CONSTRUCTION

ITEM N

m kgf

m lb-ft

A 35 3.5 25.5

B 20 2.0 14.5

C 23 2.3 16.5

D 35 3.5 25.5

E 18 1.8 13.0

1 Spring adjuster bolt

2 O-ring

3 Spring adjuster

4 Rebound damping force adjuster

5 Rubber seat

6 Spacer

7 Spring

8 Oil flow pipe

9 Inner rod/damper rod (cartridge)

0 Outer tube

A Anti-friction metal

B Oil seal

C Oil seal stopper ring

D Dust seal

E Inner tube

A Front fork cap bolt

B Lock nut

C Front axle pinch bolt

D Damper rod bolt

E Compression damping force adjuster
