General Information: 0A-6
Component Location

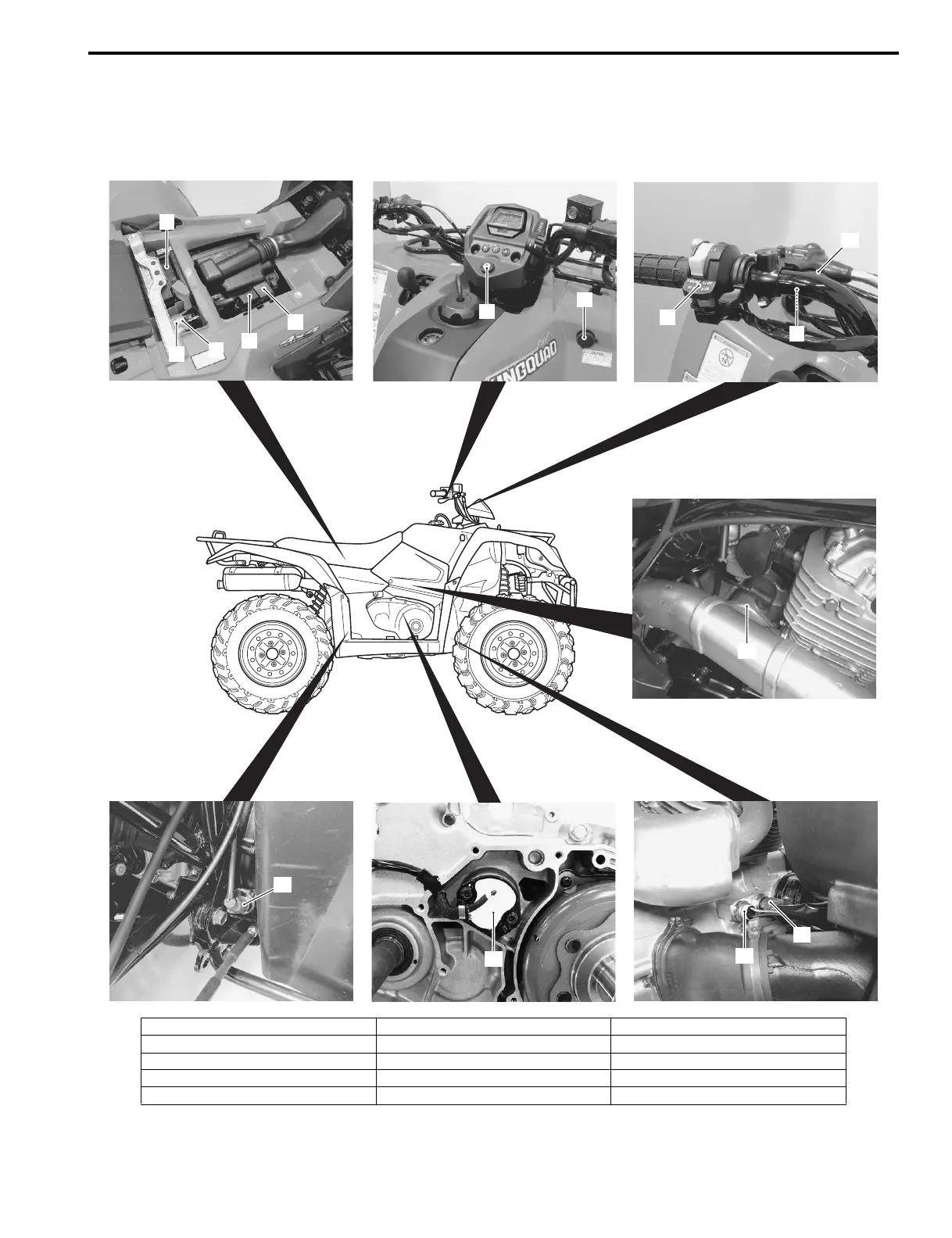

Electrical Components Location
B827H10103001
LT-A400/F
1
3
5
6
7
8
11
10
12
13
14
15
4
2
9
I827H1010007-01
1. Battery 6. Ignition switch 11. Starter motor
2. Main fuse 7. Output terminal 12. Brake light switch
3. Starter relay 8. Handlebar switch (LH) 13. Neutral switch
4. Neutral relay 9. Parking brake switch 14. Cooling fan thermo-switch
5. Fuse box 10. Brake light switch 15. Engine oil temperature switch
