Suzuki LT-F400F Service Manual

Differential: 3B-2
Repair Instructions

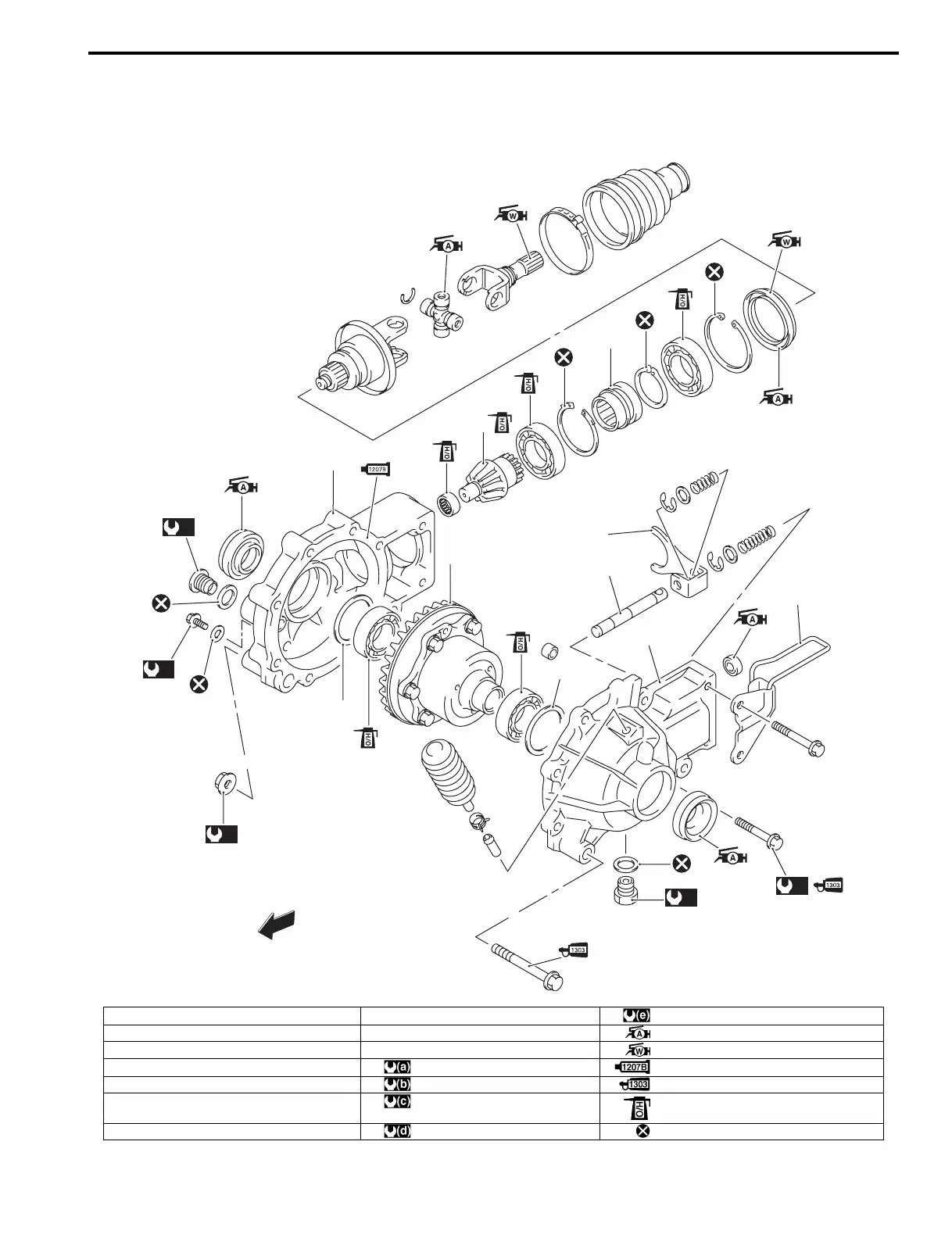

Front Drive (Differential) Components (LT-A400F, LT-F400F)
B827H13206001
FWD
FWD
(a)
(b)
(c)
(d)
(e)
1
2
3
6
7
8
5
9
4
10
I827H1320118-02
1. Front drive (differential) gear case 8. 2WD/4WD shifting fork shaft : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Shim(-s) (RH) 9. 2WD/4WD shifting cable guide : Apply grease.
3. Front differential gear assembly 10. Bevel pinion gear : Apply water resistant grease.
4. Shim(-s) (LH) : 35 N⋅m (3.5 kgf-m, 25.5 lb-ft) : Apply bond.
5. Front drive (differential) gear case cover : 8 N⋅m (0.8 kgf-m, 6.0 lb-ft) : Apply thread lock to the thread part.
6. 2WD/4WD shifting fork : 32 N⋅m (3.2 kgf-m, 23.0 lb-ft) : Apply hypoid gear oil.
7. 2WD/4WD shifting sleeve : 45 N⋅m (4.5 kgf-m, 32.5 lb-ft) : Do not reuse.
