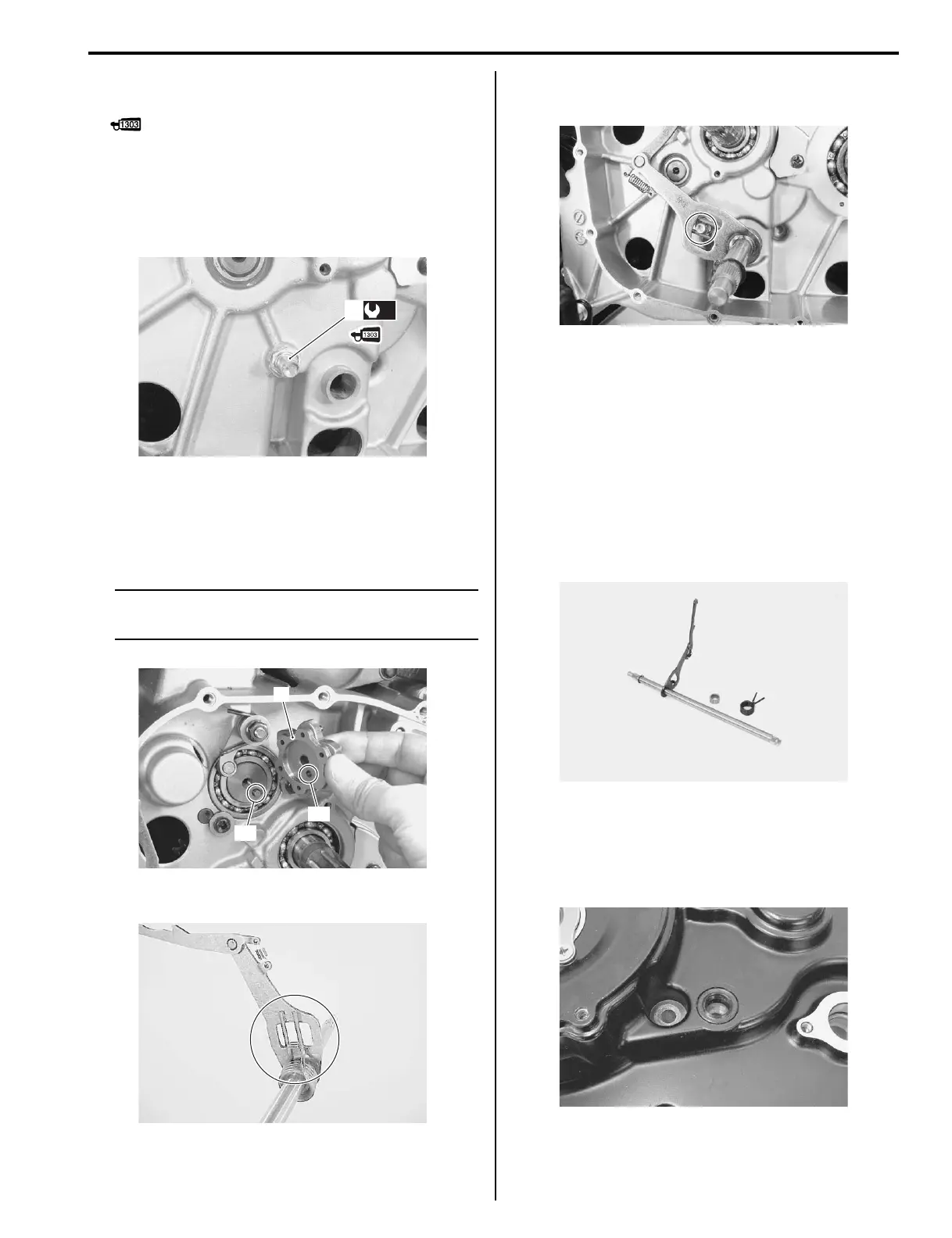

Manual Transmission: 5B-12
• Apply a small quantity of thread lock to the gearshift
shaft stopper (2) and tighten it to the specified torque.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
Tightening torque
Gearshift shaft stopper (b): 19 N·m (1.9 kgf-m,
13.5 lb-ft)
• Check the gearshift cam stopper moves smoothly.
• Make sure that the gearshift cam is in the neutral
position.
• Install the gearshift cam stopper plate (3).
NOTE
Align the gearshift cam pin “A” with the
gearshift cam stopper plate hole “B”.
• Install the spring to the gearshift cam shaft properly.
• Install the gearshift shaft assembly while aligning the
spring ends with the gearshift shaft stopper.
• Install the clutch cover. Refer to “Clutch Removal and
Installation (LT-F400/F) in Section 5C (Page 5C-3)”.
Gearshift Linkage Inspection (LT-F400/F)
B827H15206021
Refer to “Gearshift Shaft / Gearshift Cam Plate Removal
and Installation (LT-F400/F) (Page 5B-11)”.
Gearshift Shaft
Check the gearshift for bend or wear.
Check the return spring for damage or fatigue.
If any defects are found, replace the defective part(-s).
Gearshift Shaft Oil Seal
Inspect the gearshift shaft oil seal lip for damage or
wear. If any defect are found, replace the oil seal with a
new one.
(b)
2
I827H1520028-01
3
“A”
“B”
I827H1520038-01
I827H1520029-01
I827H1520030-01
I827H1520039-01
I827H1520040-01
