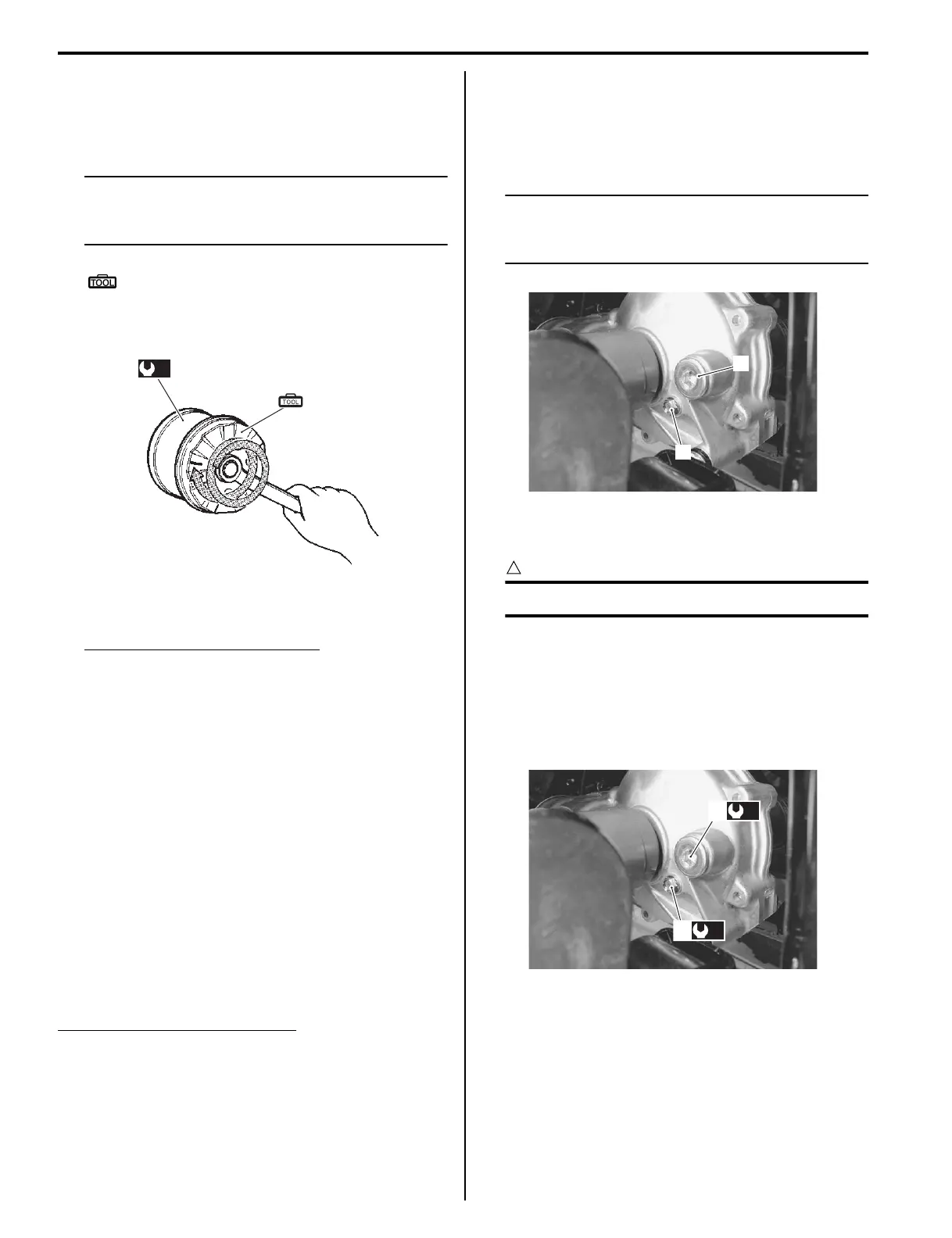

0B-9 Maintenance and Lubrication:
7) Install the new oil filter. Turn it by hand until you feel
that the oil filter O-ring contacts the oil filter mounting
surface. Then, tighten the oil filter two full turns (or to
the specified torque) using the special tool.
NOTE
To properly tighten the oil filter, use the
special tool. Never tighten the oil filter by
hand only.
Special tool
(A): 09915–40610 (Oil filter wrench)
Tightening torque
Oil filter (a): 20 N·m (2.0 kgf-m, 14.5 lb-ft)
8) Pour new oil through the oil filler. Use oil of SF/SG or
SH/SJ in API with MA in JASO.
Necessary amount of engine oil
LT-A400/F
Oil change: 2 900 ml (3.1/2.6 US/lmpqt)
Oil and filter change:3 100 ml (3.3/2.7 US/lmpqt)
Engine overhaul:3 400 ml (3.6/3.0 US/lmpqt)
LT-F400/F
Oil change: 3 000 ml (3.2/2.6 US/lmpqt)
Oil and filter change:3 200 ml (3.4/2.8 US/lmpqt)
Engine overhaul:3 500 ml (3.7/3.1 US/lmpqt)
9) Start up the engine and allow it to run for several
minutes at idling speed after tightening the oil filler
cap.
10) Check the oil level. Refer to “Oil Level Inspection:
(Page 0B-7)”.
11) Install the removed parts.
Front Differential Gear Oil Inspection (LT-A400F,
LT-F400F)
B827H10206009
Inspect front differential gear oil
Every 2 000 km (1 200 miles, 6 months)
Inspect the front differential gear oil level in the following
procedures:
1) Place the vehicle on level ground.
2) Remove the front under cover. Refer to “Exterior
Parts Removal and Installation in Section 9D
(Page 9D-3)”.
3) Remove the oil filler plug (1) and oil level plug (2). If
the oil level is below the level hole, add new oil
through the filler hole until the oil flows out from the
level hole. Use hypoid gear oil SAE #90, API grade
GL-5.
NOTE
Use hypoid gear oil SAE #80, API grade GL-5,
if the vehicle is ridden where the ambient
temperature is below 0 °C (32°F).
4) Tighten the oil level plug (2) and oil filler plug (1) to
the specified torque.
CAUTION
!
Replace the gasket washers with new ones.
Tightening torque
Front drive (differential) gear oil level plug (a): 8
N·m (0.8 kgf-m, 6.0 lb-ft)
Tightening torque
Front drive (differential) gear oil filler plug (b):
35 N·m (3.5 kgf-m, 25.5 lb-ft)
5) Install the front under cover. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.
(A)
(a)
1
I718H1020026-01
1
2
I827H1020012-01
(b)
1
(a)
2
I827H1020013-01
