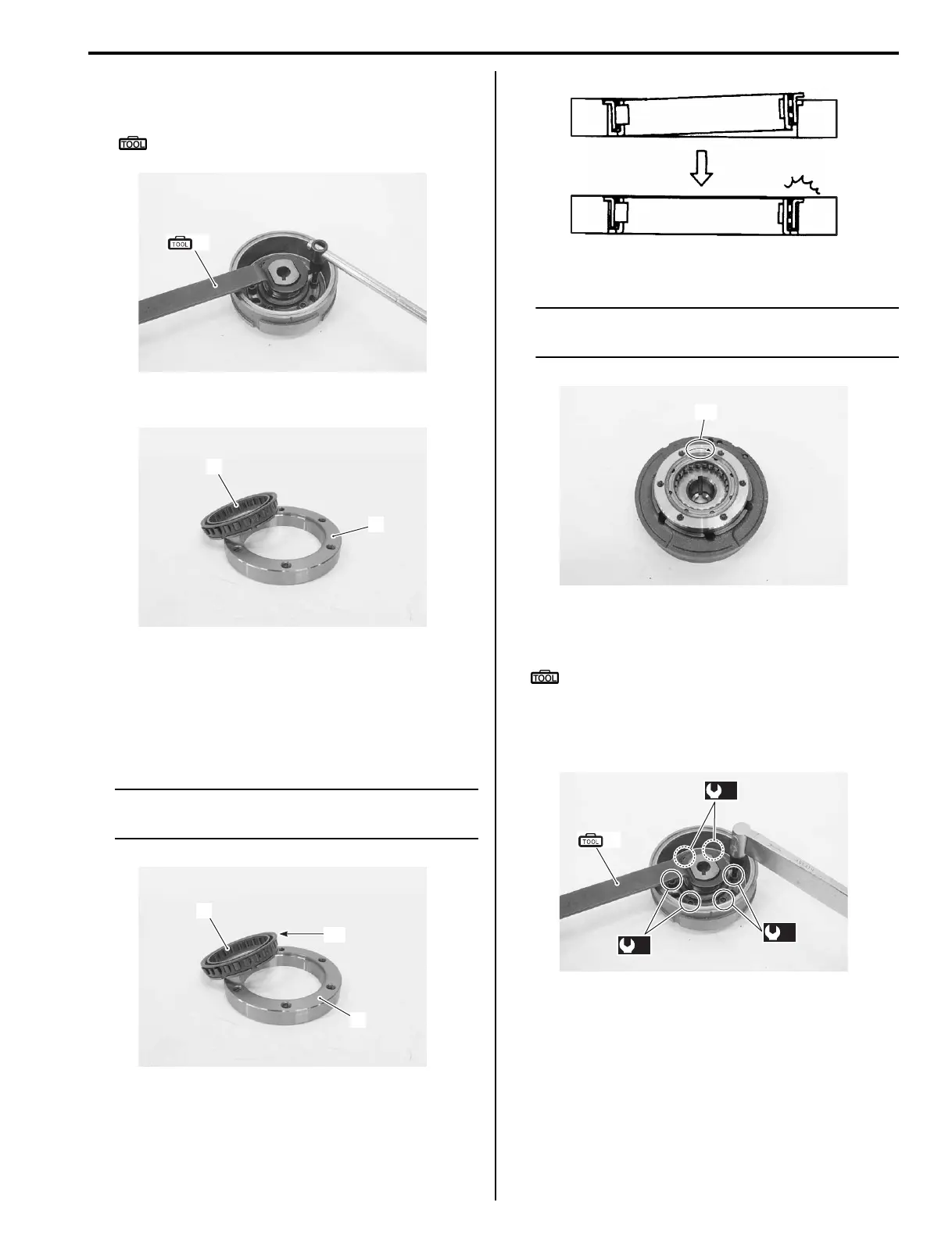

Starting System: 1I-10
6) Hold the generator rotor with the special tool and
remove the starter clutch bolts.
Special tool
(A): 09930–44541 (Rotor holder)
7) Remove the one way clutch (6) from the guide (7).
Installation
Install the starter clutch in the reverse order of removal.
Pay attention to the following points:
• When inserting the one way clutch (1) into the guide
(2), fit the flange “A” in the step of the guide (2).
NOTE
Be sure to seat the flange “A” of the one way
clutch (1) to the guide (2).
• Install the guide to the generator rotor.
NOTE
The arrow mark “B” must face the engine
side.
• Tighten the starter clutch bolts to the specified torque
using the special tool.
Special tool
(A): 09930–44541 (Rotor holder)
Tightening torque
Starter clutch bolt (a): 26 N·m (2.6 kgf-m, 19.0 lb-
ft)
• Install the generator rotor assembly onto crankshaft.
Refer to “Generator Removal and Installation in
Section 1J (Page 1J-5)”.
