3B-9 Differential:
Assembly

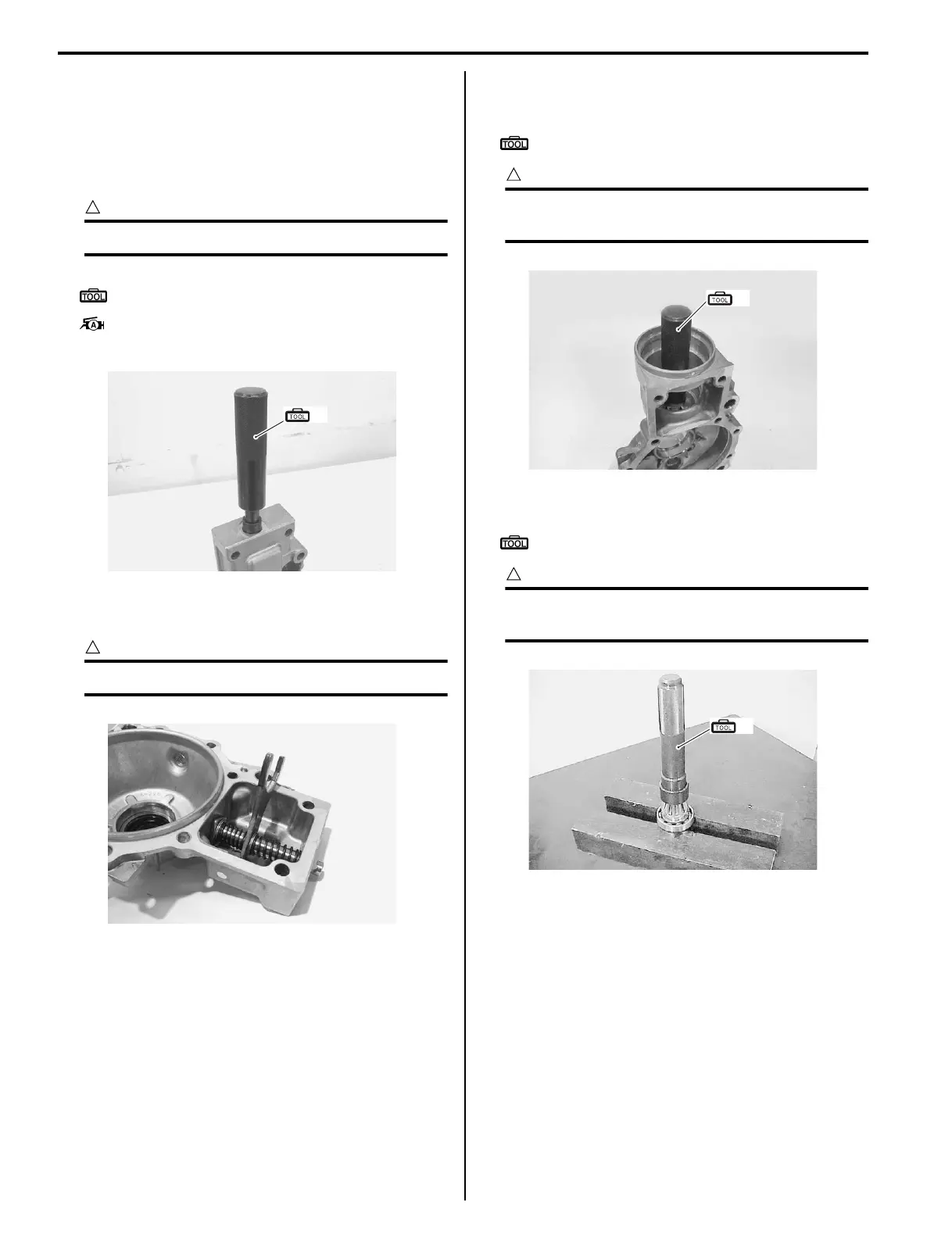

Assemble the front drive (differential) in the reverse
order of disassembly. Pay attention to the following
points:
• Install new shifting fork shaft oil seal with the special
tool, and then apply grease to the seal lip.
CAUTION
!
Replace the removed oil seal with a new one.
Special tool
(A): 09913–70210 (Bearing installer set)
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the 2WD/4WD shifting fork, springs, shaft and
E-rings.
CAUTION
!
Replace the E-rings with new ones.
• Install the bearing into the gear case with the special
tool.
Special tool
(A): 09913–70210 (Bearing installer set)
CAUTION
!
The removed bearing must be replaced with a
new one.
• Install the bearing onto the shaft with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
CAUTION
!
The removed bearing must be replace with a
new one.
(A)
I827H1320027-01
I827H1320115-01
(A)
I827H1320028-01
(A)
I827H1320029-01
