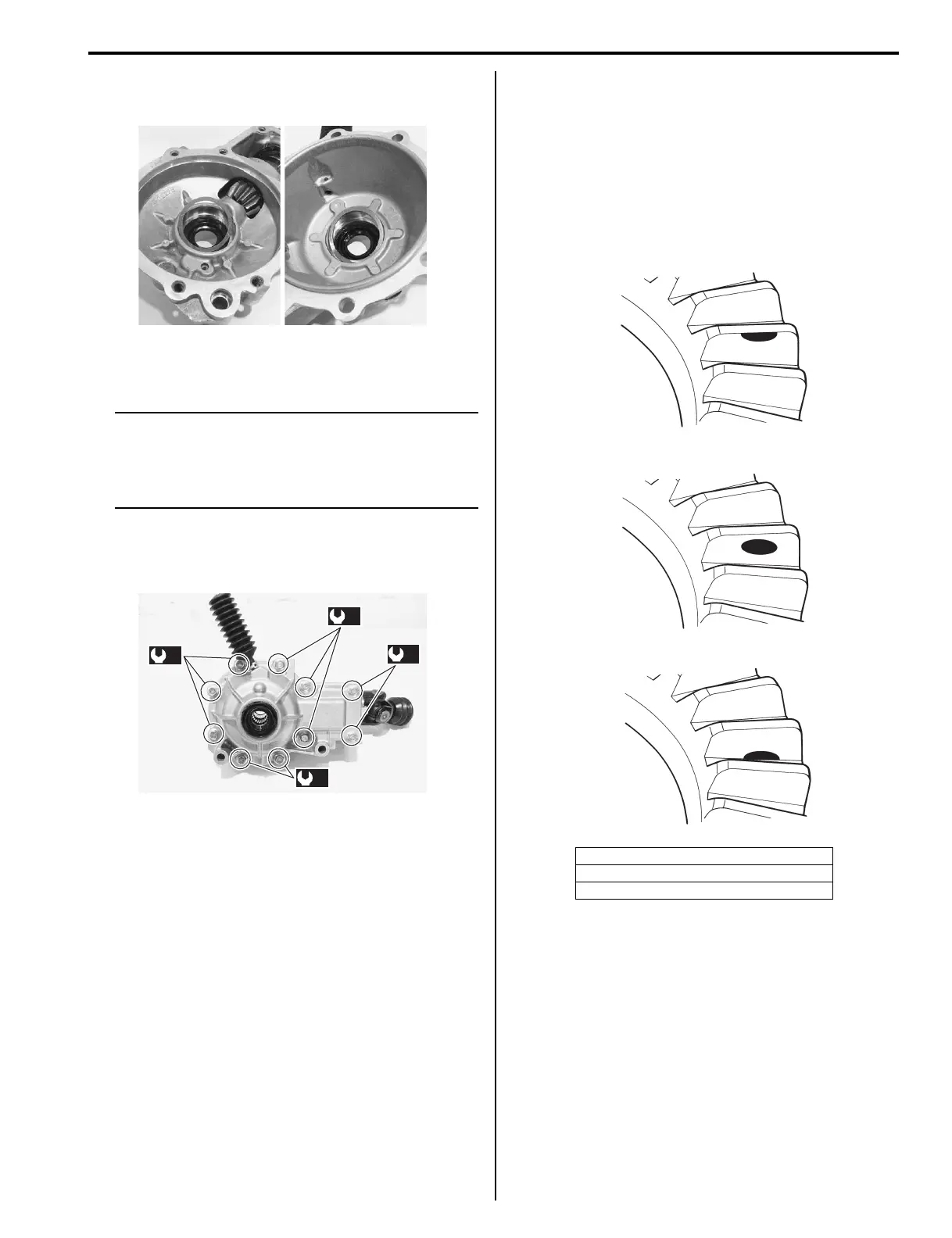

Differential: 3B-18
3) Install the left and right side shims and front drive
(differential) assembly.
4) Install the front drive (differential) case cover and
tighten the bolts to the specified torque diagonally.
NOTE
• Do not apply bond to the mating surface of
the gear case.
• Do not apply thread lock to the case cover
bolts.
Tightening torque
Front drive (differential) gear case cover bolt
(a): 23 N·m (2.3 kgf-m, 16.5 lb-ft)
5) Rotate the front drive (differential) gear several turns
in each direction. This will provide a contact pattern
on the coated teeth of front drive (differential) gear.
6) Remove the front drive (differential) gear and
compare the coated teeth to the examples shown in
[A], [B] and [C]. If tooth contact is found to be
incorrect (example [A] and [C]), the shim must be
changed and the tooth contact should be re-check
until correct (example [B]).
I827H1320062-01
(a)
(a)
(a)
(a)
I827H1320057-01
[A]: Incorrect (Contact at tooth top)
[B]: Correct
[C]: Incorrect (Contact at tooth root)
[A]
[B]
[C]
I831G1320046-01
