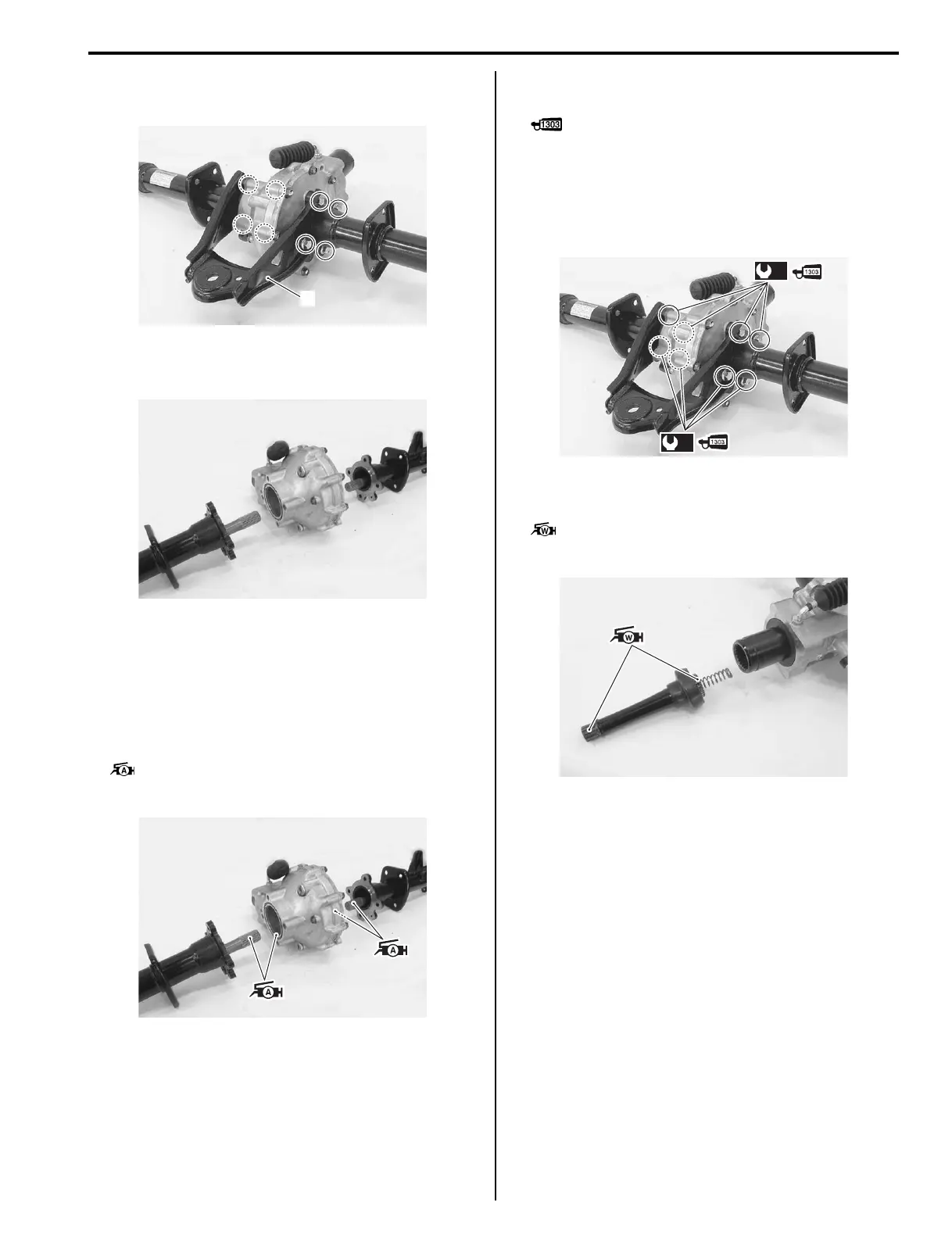

Differential: 3B-22
7) Remove the rear axle housing mounting bolts and
trailer towing (4).
8) Remove the rear axles together with the axle
housings.
Installation
Installation the final gear assembly in the reverse order
of removal. Pay attention to the following points:
• Coat the new O-rings with grease and install them into
the grooves in the gear case and cover.
• Apply grease to the spline of the axles.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Apply thread lock to the rear axle housing mounting
bolts and tighten them to the specified torque.
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
Tightening torque
Rear axle housing mounting bolt (final gear case)
(a): 55 N·m (5.5 kgf-m, 40.0 lb-ft)
• Apply water resistance grease to the splines of the
rear propeller shaft.
: Grease 99000–25160 (Water resistance
grease)
4
I827H1320068-01
I827H1320069-01
I827H1320070-01
(a)
(a)
I827H1320071-01
I827H1320073-01
