3C-11 Transfer:

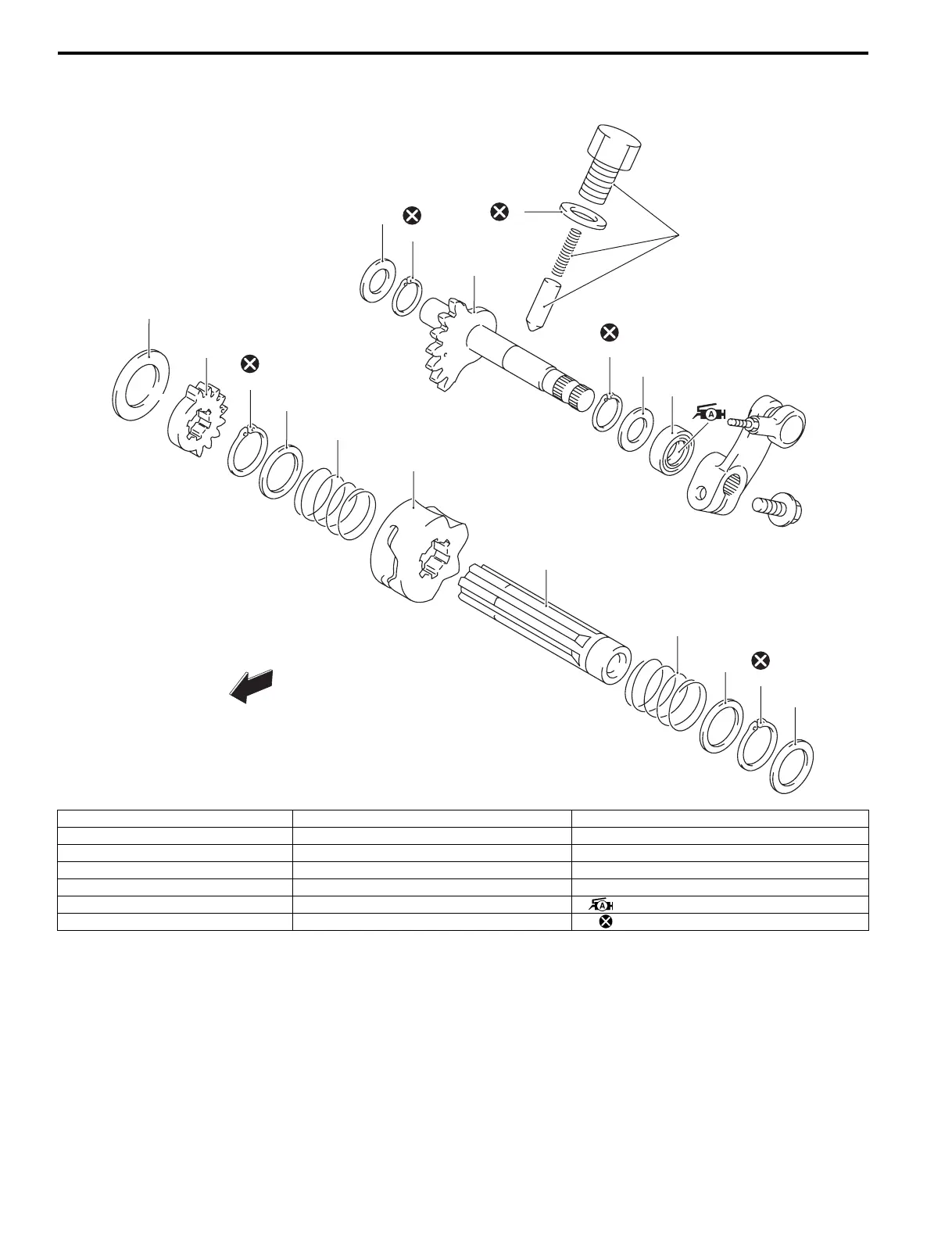

Transfer Gearshift Cam Components (LT-F400/F)
B827H13306019
1
2
3
5
6
7
8
9
10
4
11
12
13
14
15
16
17
18
19
FWD
FWD
I827H1330028-03
1. Transfer gearshift cam stopper set 8. OIl seal 15. Transfer gearshift shaft No. 1
2. Gasket 9. Washer 16. Spring
3. Washer 10. Gearshift cam plate 17. Washer
4. Snap ring 11. Snap ring 18. Snap ring
5. Transfer gearshift shaft No. 2 12. Snap ring 19. Washer
6. Snap ring 13. Washer : Apply grease.
7. Washer 14. Transfer gearshift cam : Do not reuse.
