Suzuki LT-F400F Service Manual

Rear Brakes: 4C-5

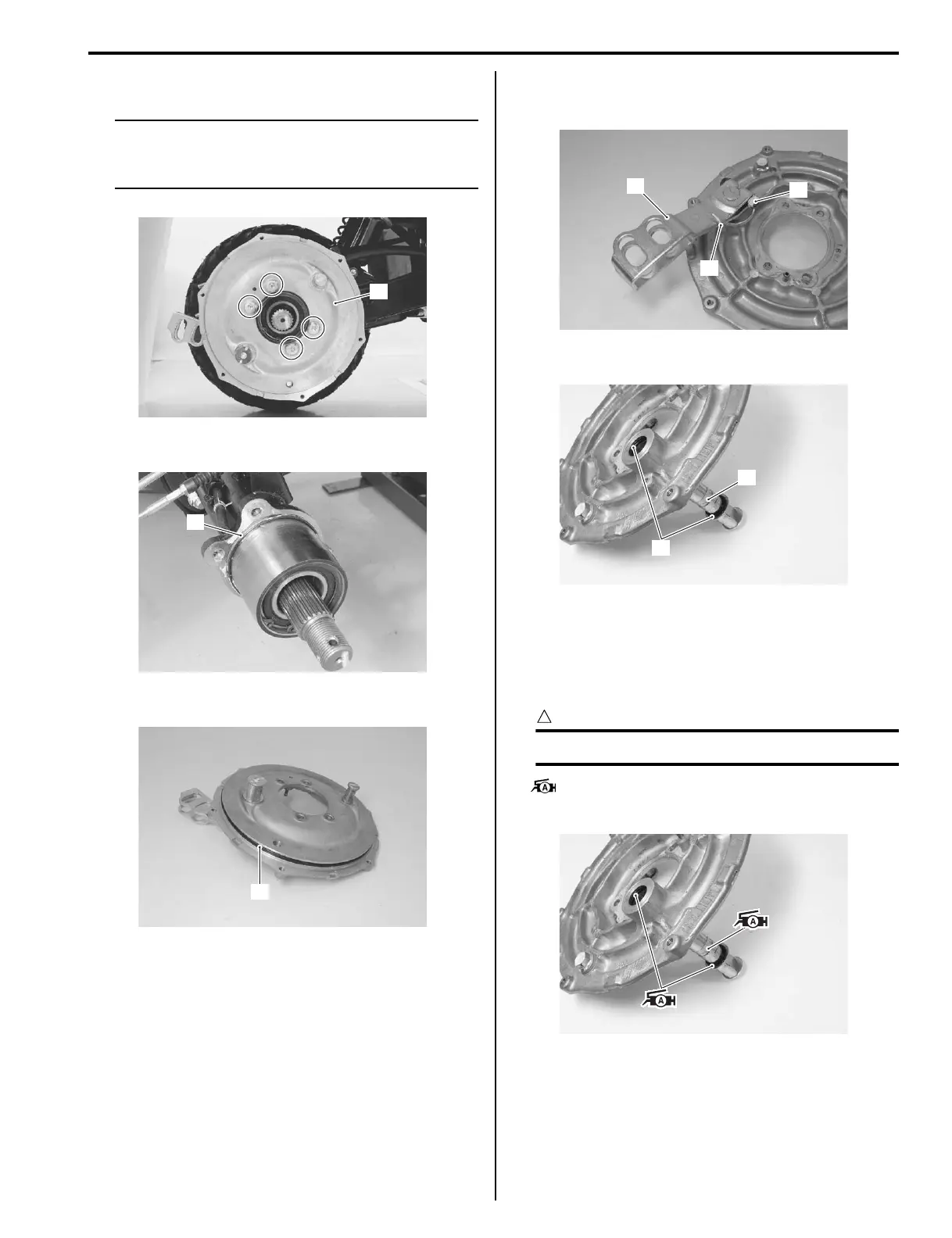

12) Remove the brake anchor panel (10).
NOTE
Do not turn the brake anchor panel around
the rear axle housing to prevent the pipe
from getting damage.
13) Remove the O-ring (11).
14) Remove the O-ring (12).
15) Loosen the brake cam lever bolt and nut (13).
16) Remove the brake cam lever (14) and spring (15).
17) Remove the brake camshaft (16) and O-rings (17).
Assembly
Assemble the rear brake in the reverse order of
disassembly. Pay attention to the following points:
• Apply grease to the O-rings and brake camshaft.
CAUTION
!
Replace the O-rings with new ones.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
10
I827H1430009-02
11
I827H1430010-03
12
I827H1430011-02
13
14
15
I827H1430012-02
16
17
I827H1430013-03
I827H1430014-02
