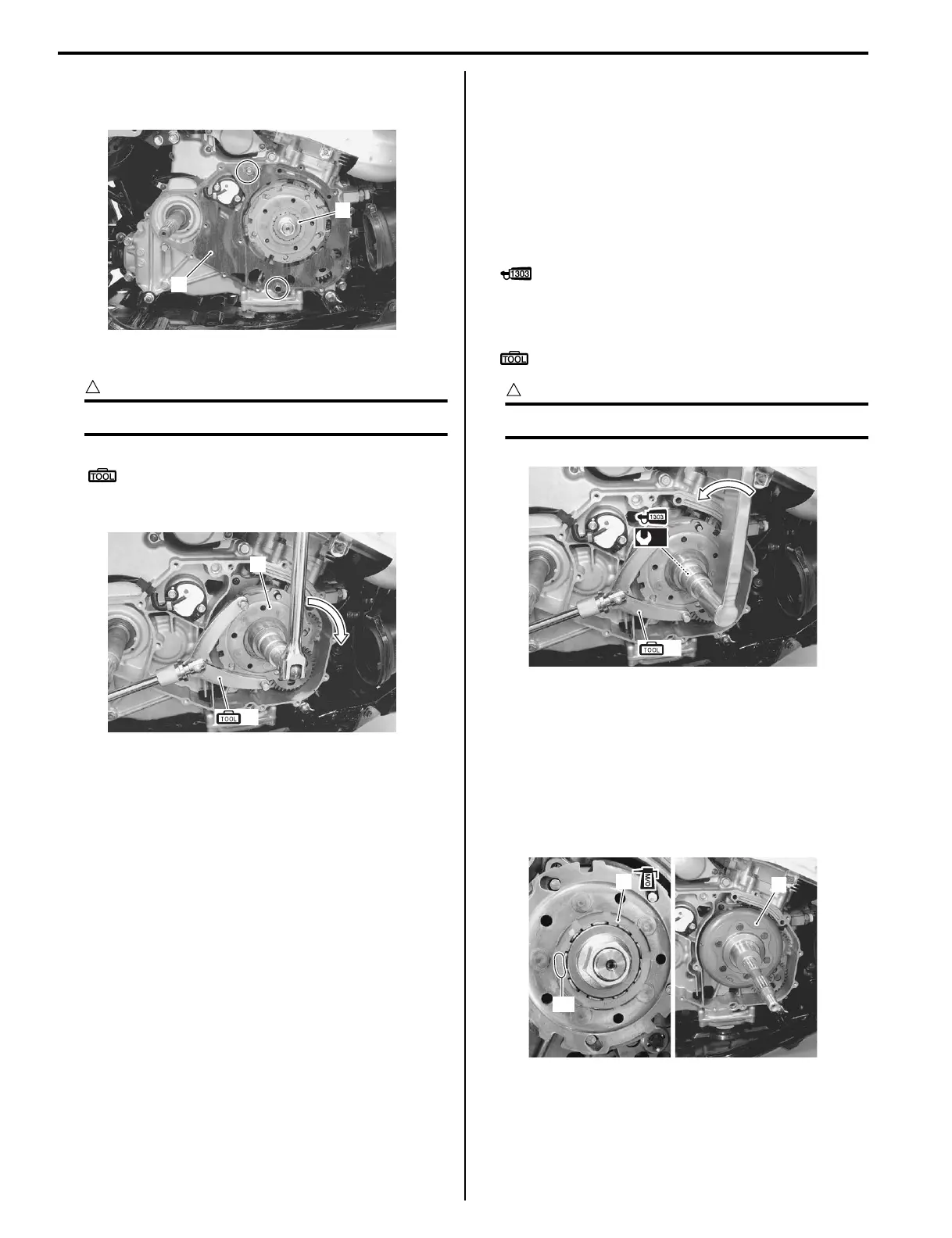

5A-17 Automatic Transmission:
6) Remove the gasket (5) and dowel pins.
7) Remove the one way clutch (6).
8) Remove the clutch shoe nut with the special tool.
CAUTION
!
The clutch shoe nut has left-hand threads.
Special tool
(A): 09930–40113 (Rotor holder)
9) Remove the clutch shoe (7).
Installation
Install the clutch shoe in the reverse order of removal.
Pay attention to the following points:
• Install the clutch shoe assembly.
• Apply thread lock to the clutch shoe nut and tighten it
to the specified torque with the special tool.
Tightening torque
Clutch shoe nut (a): 150 N·m (15.0 kgf-m, 108.5
lb-ft)
: Thread lock cement 99000–32030
(THREAD LOCK CEMENT SUPER 1303 or
equivalent)
Special tool
(A): 09930–40113 (Rotor holder)
CAUTION
!
The clutch shoe nut has left-hand thread.
• Apply molybdenum oil solution to the one way clutch
(1).
M/O: Molybdenum oil (MOLYBDENUM OIL
SOLUTION)
• Install the one way clutch with facing the “OUTSIDE”
letter “A” outside.
• Install the clutch wheel/shaft (2).
6
5
I827H1510055-02
7
(A)
I827H1510056-01
(A)
(a)
I827H1510057-01
“A”
2
1
I827H1510058-02
