Clutch: 5C-4

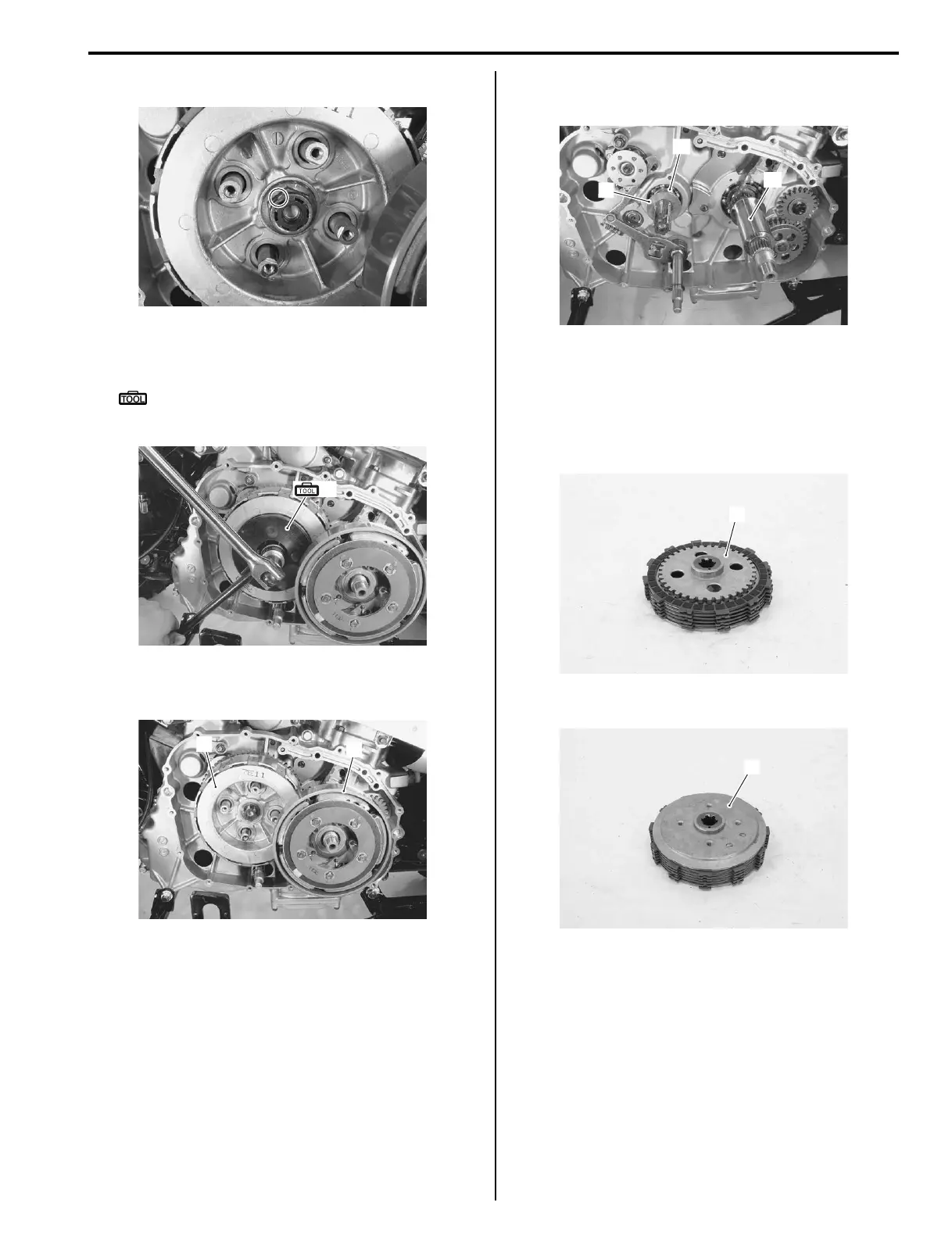

9) Unlock the clutch sleeve hub nut.
10) Remove the clutch sleeve hub nut using the special
tool.
Special tool
(A): 09920–53730 (Clutch sleeve hub
holder)
11) Remove the clutch shoe assembly (7) and primary
driven gear assembly (8).
12) Remove the thrust washer (9), thrust washer (10)
and spacer (11).
Installation
Install the clutch components in the reverse order of
removal. Pay attention to the following points:
• Install the clutch drive plates and driven plates one by
one onto the clutch sleeve hub (1).
• Install the clutch pressure plate (2).
I827H1530008-01
(A)
I827H1530009-01
7
8
I827H1530010-01
9
10
11
I827H1530011-01
1
I827H1530012-01
2
I827H1530013-01
