Steering / Handlebar: 6B-8

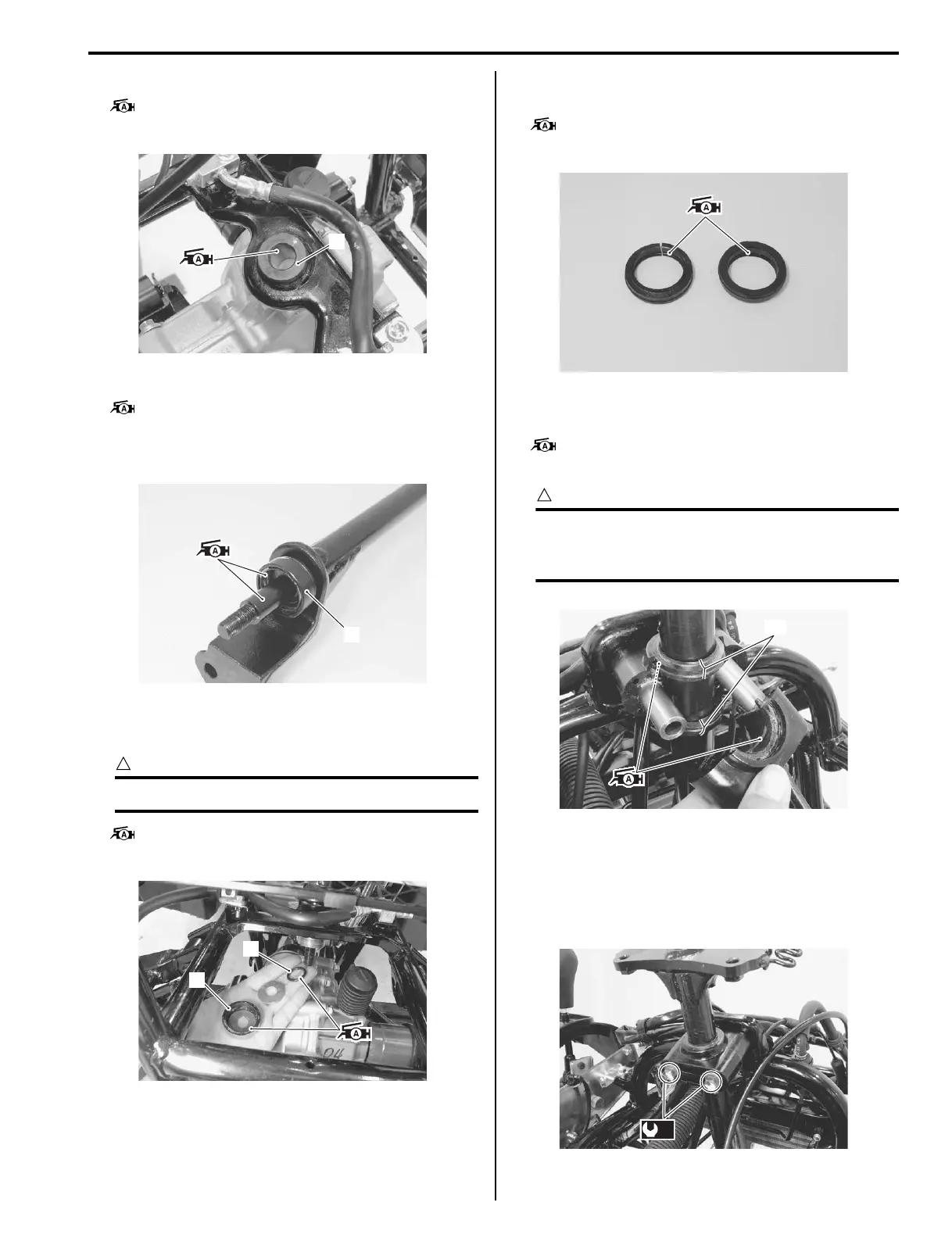

• Apply grease to the steering shaft bushing (1).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Apply grease to the steering shaft and dust seal (2).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the dust seal (2) to the steering shaft.
• Install the steering shaft.
• Apply grease to the O-ring (3) and dust seal (4).
CAUTION
!
Replace the O-ring (3) with a new one.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Apply grease to the dust seals before installing the
steering shaft.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Apply grease to the steering shaft holders before
installing the shaft holders.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
CAUTION
!
To prevent the entry of dirt, the dust seal end
“A” must face rearward when installing the
dust seals to steering shaft.
• Tighten the steering shaft holder bolts to the specified
torque.
Tightening torque
Steering shaft holder bolt (a): 23 N·m (2.3 kgf-m,
16.5 lb-ft)
1
I827H1620030-02
2
I827H1620031-02
3
4
I827H1620032-02
I827H1620033-02
“A”
I827H1620034-03
(a)
I827H1620035-01
