Engine Mechanical: 1D-7

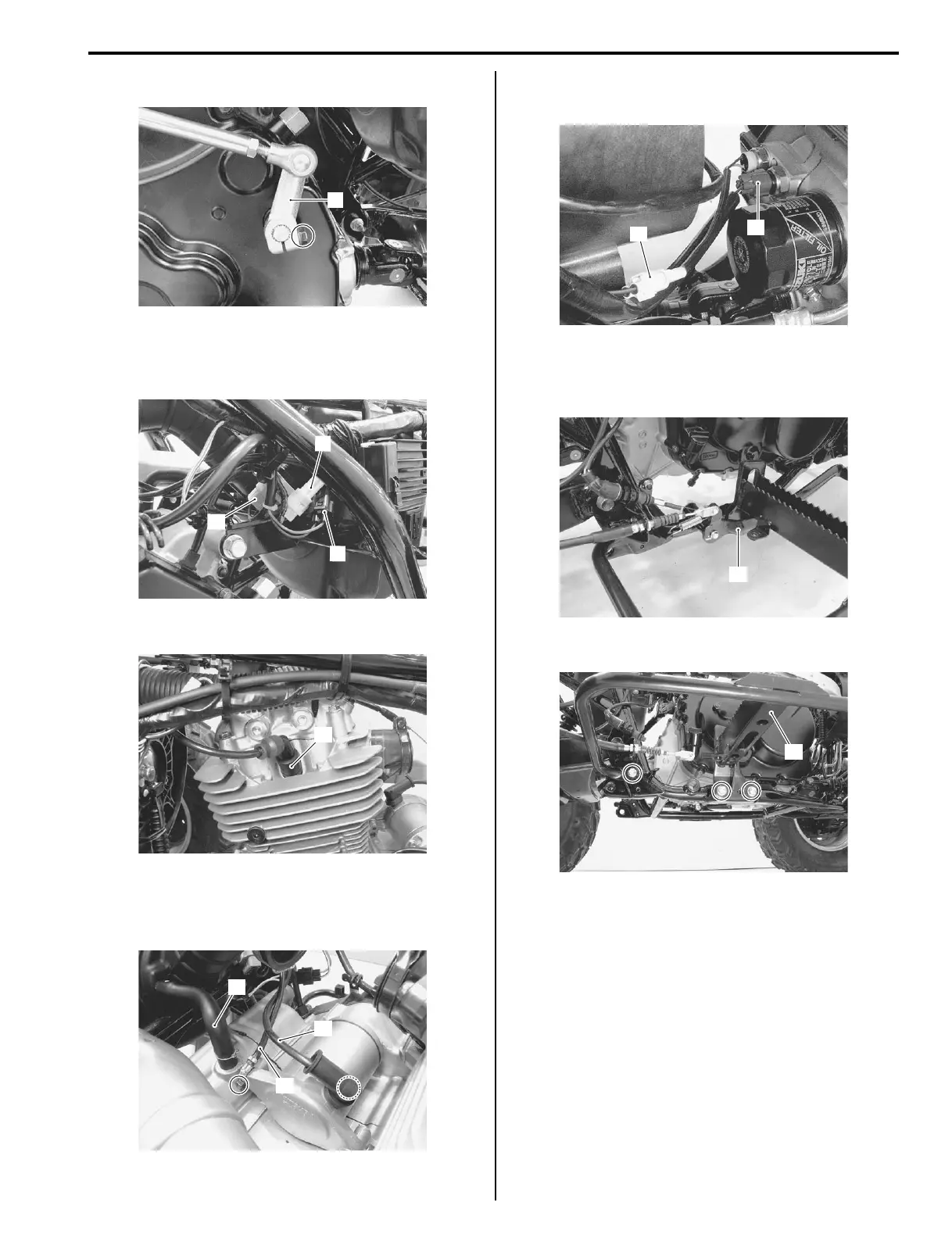

10) Remove the transfer gearshift arm (7).
11) Disconnect the gear position switch lead wire
coupler (8), CKP sensor lead wire coupler (9) and
generator lead wire coupler (10).
12) Disconnect the spark plug cap (11).
13) Disconnect the PCV (breather) hose (12).
14) Disconnect the engine ground lead wire (13) and
starter motor lead wire (14).
15) Disconnect the cooling fan thermo-switch lead wire
coupler (15) and oil temperature switch coupler (16).
16) Remove the brake pedal (17). Refer to “Rear Brake
Pedal Removal and Installation in Section 4A
(Page 4A-12)”.
17) Remove the right footrest (18).
7
I827H1140238-02
8
9
10
I827H1140239-01
11
I827H1140240-01
12
13
14
I827H1140241-02
15
16
I827H1140242-01
17
I827H1140243-01
18
I827H1140244-01
