Suzuki LT-F400F Service Manual

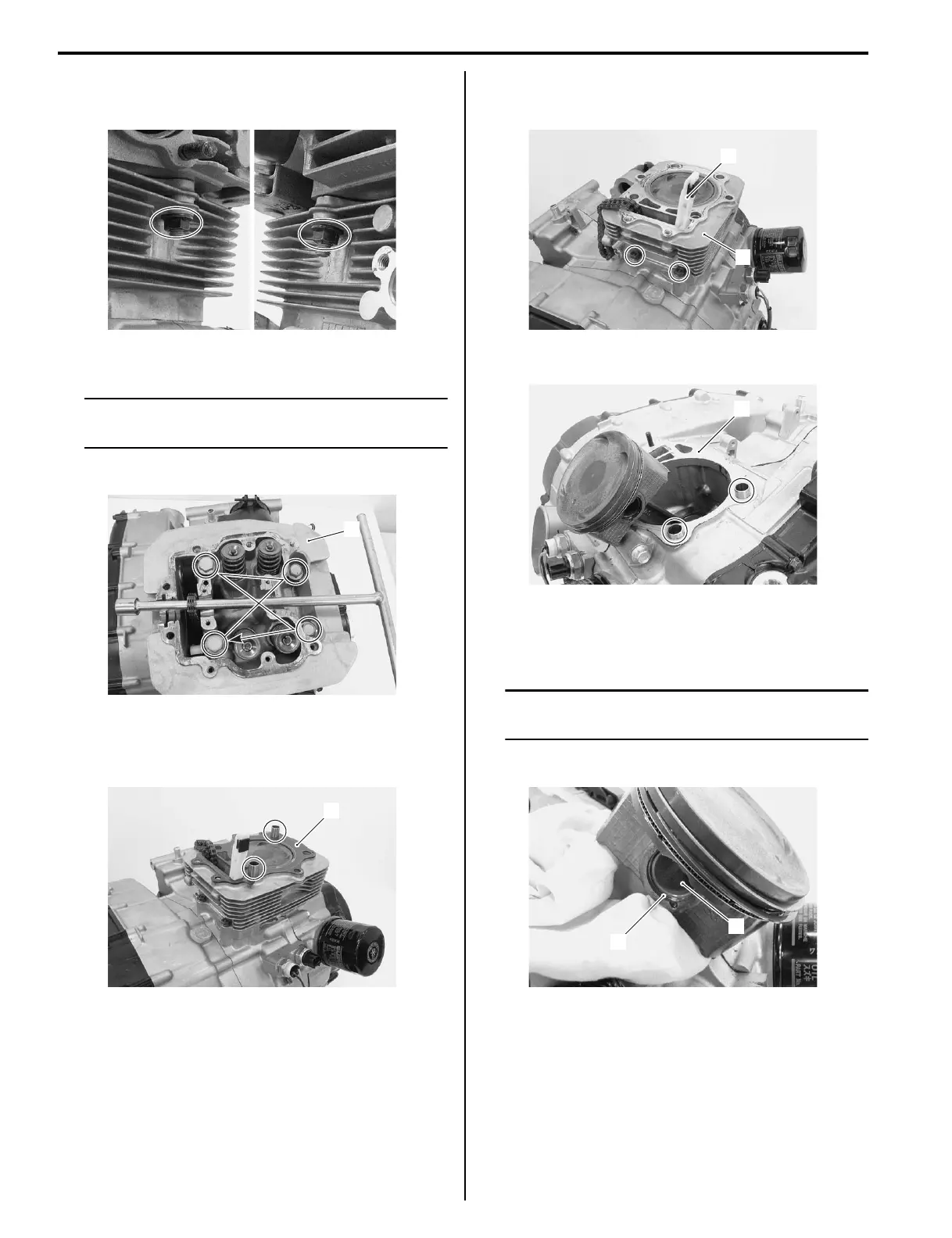

1D-12 Engine Mechanical:
Cylinder Head
1) Remove the cylinder head nuts.
2) Remove the cylinder head bolts.
NOTE
The cylinder head bolts must be loosened
diagonally and evenly.
3) Remove the cylinder head (1).
Cylinder
1) Remove the dowel pins and gasket (1).
2) Remove the cam chain guide (2).
3) Remove the cylinder (3).
4) Remove the dowel pins and gasket (4).
Piston
1) Remove the piston pin circlip (1).
NOTE
Place a rag under the piston so as not to drop
the piston pin circlip into the crankcase.
2) Draw out the piston pin (2) and remove the piston.
I827H1140011-01
1
I827H1140012-02
1
I827H1140013-01
2
3
I827H1140014-02
4
I827H1140015-02
1
2
I827H1140016-01
