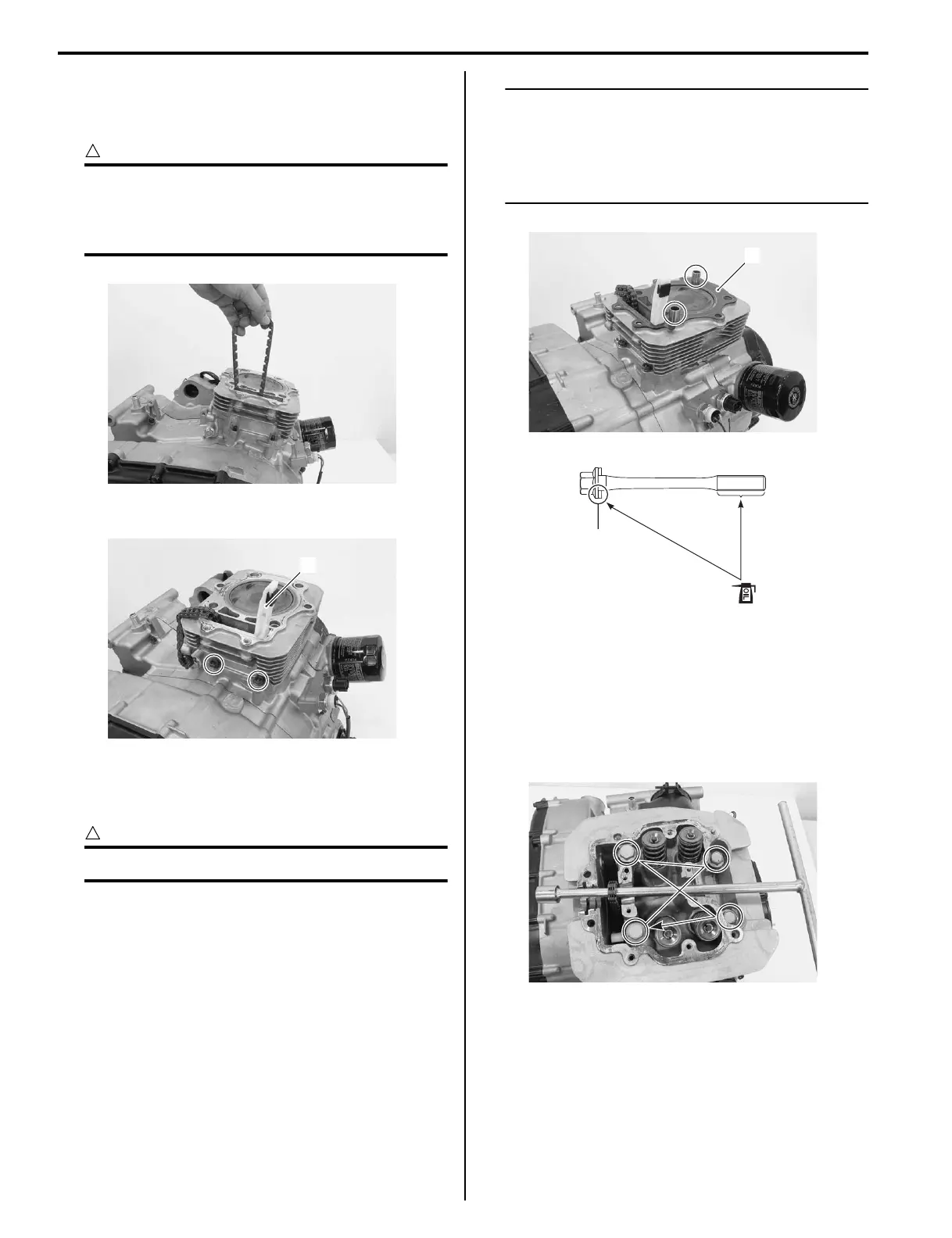

1D-14 Engine Mechanical:
• Hold each piston ring with properly position, insert the
piston into the cylinder.
• Tighten the cylinder base nuts temporarily.
CAUTION
!
When installing the cylinder and cylinder
head, pull the cam chain upward, or the chain
will be caught between the crankcase and
cam drive sprocket.
• Install the cam chain guide (2).
Cylinder Head
• Fit the dowel pins and new cylinder head gasket (1).
CAUTION
!
Use the new gasket to prevent gas leakage.
NOTE
• The rounded side of the washer (2) should
be positioned upside.
• Apply engine oil to the both sides of
washers (2) and thread of the cylinder
head bolts before installing them.
• Install the cylinder head and tighten the cylinder head
bolts diagonally to the specified torque.
Tightening torque
Cylinder head bolt (initial): 25 N·m (2.5 kgf-m,
18.0 lb-ft)
Cylinder head bolt (Final): 37 N·m (3.7 kgf-m, 26.5
lb-ft)
I827H1140020-01
2
I827H1140021-01
1
I827H1140023-01
2
I827H1140224-01
I827H1140022-01
