3-46 ENGINE
REASSEMBLY
Assemble the countershaft and driveshaft in the reverse order of disassembly. Pay attention to the following
points:
NOTE:
* Rotate the bearings by hand to inspect for smooth rotation. Replace the bearings if there is anything
unusual.
* Before installing the gears, apply engine oil to the driveshaft and countershaft.

NOTE:
When reassembling the transmission, attention must be given to the locations and positions of washers and
snap rings. The cross sectional view shows the correct position of the gears, washers and snap rings.
(3-47)

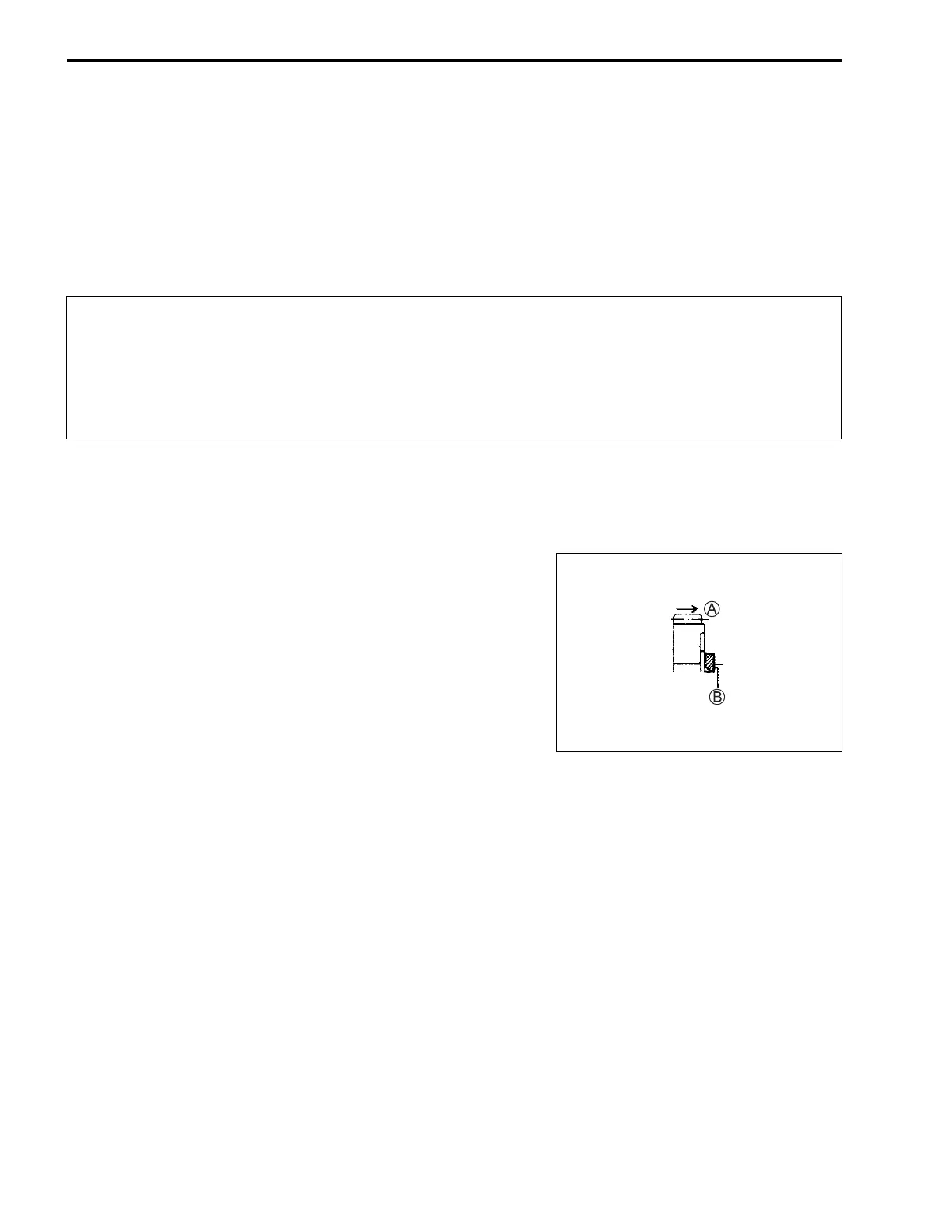

• When installing a new snap ring, pay attention to its direction.
Fit it to the side where the thrust is as shown in the illustration.
A Thrust
B Sharp edge
* Never reuse a snap ring. After a snap ring has been removed from a shaft, it should be dis-
carded and a new snap ring must be installed.
* When installing a new snap ring, do not expand the end gap larger than required to slip the
snap ring over the shaft.
* After installing a snap ring, make sure that it is completely seated in its groove and securely
fitted.

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
