Suzuki TU250X User Manual

ENGINE 3-47

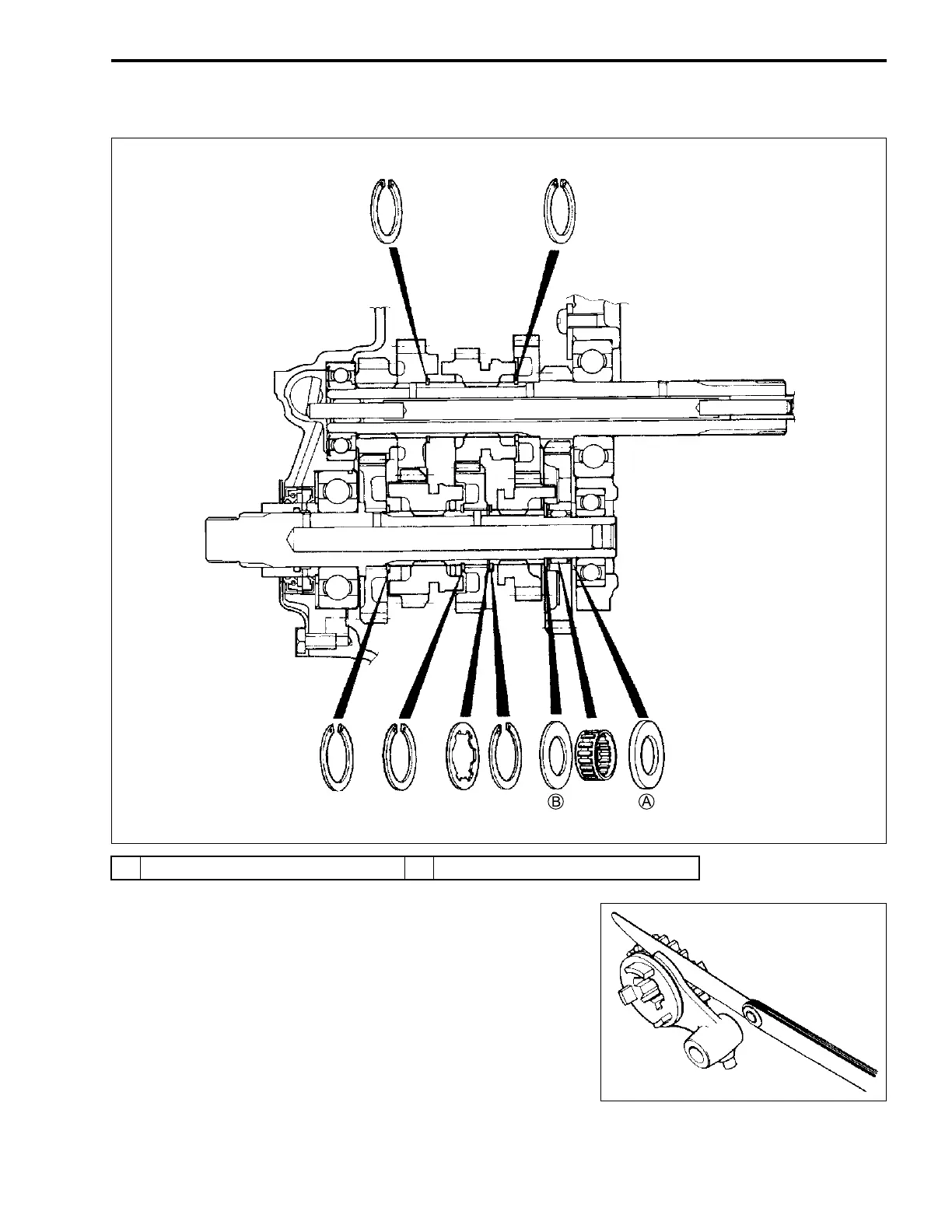

TRANSMISSION PARTS LOCATION
GEARSHIFT FORK TO GROOVE CLEARANCE
Using a thickness gauge, check the gearshift fork clearance in
the groove of its gear.
The clearance for each gearshift fork plays an important role in
the smoothness and positiveness of the shifting action.
 Shift fork to groove clearance
Service Limit (No.1, 2, 3): 0.60 mm (0.024 in)
 09900-20803: Thickness gauge
If the clearance checked is noted to exceed the limit specified,
replace the fork or its gear, or both.
A 2 mm (0.08 in) B 1 mm (0.03 in)

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
