Suzuki VLR1800 Service Manual

1A-67 Engine General Information and Diagnosis:

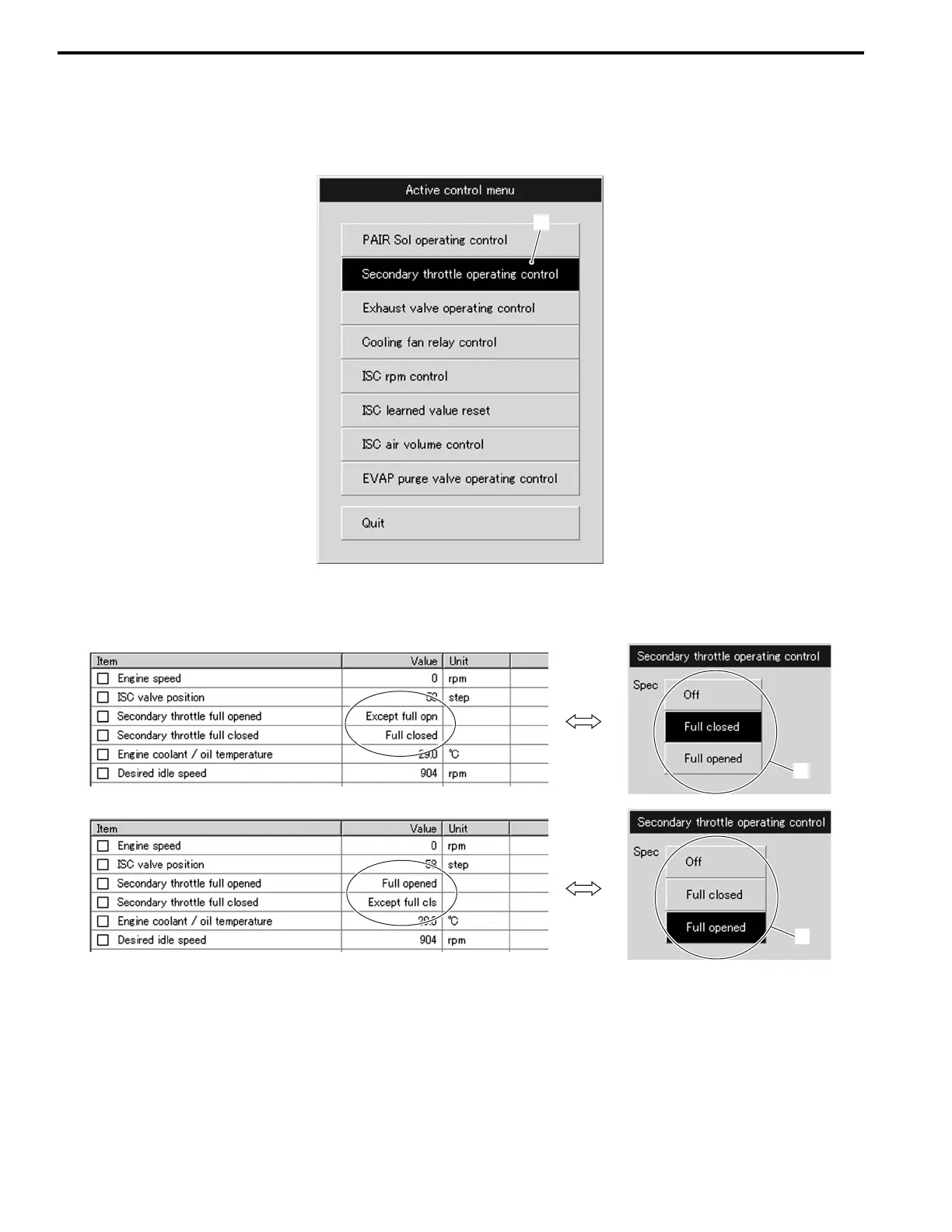

Active Control Inspection
1) Set up the SDS tool. (Refer to the SDS operation manual for further details.)
2) Turn the ignition switch ON.
3) Click “Secondary throttle operating control” (1).
4) Click each button (2).
At this time, if an operation sound is heard from the STVA, the function is normal.
1
I822H1110060-01
2
2
I822H1110061-01

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
