Suzuki VLR1800 Service Manual

Wheels and Tires: 2D-3

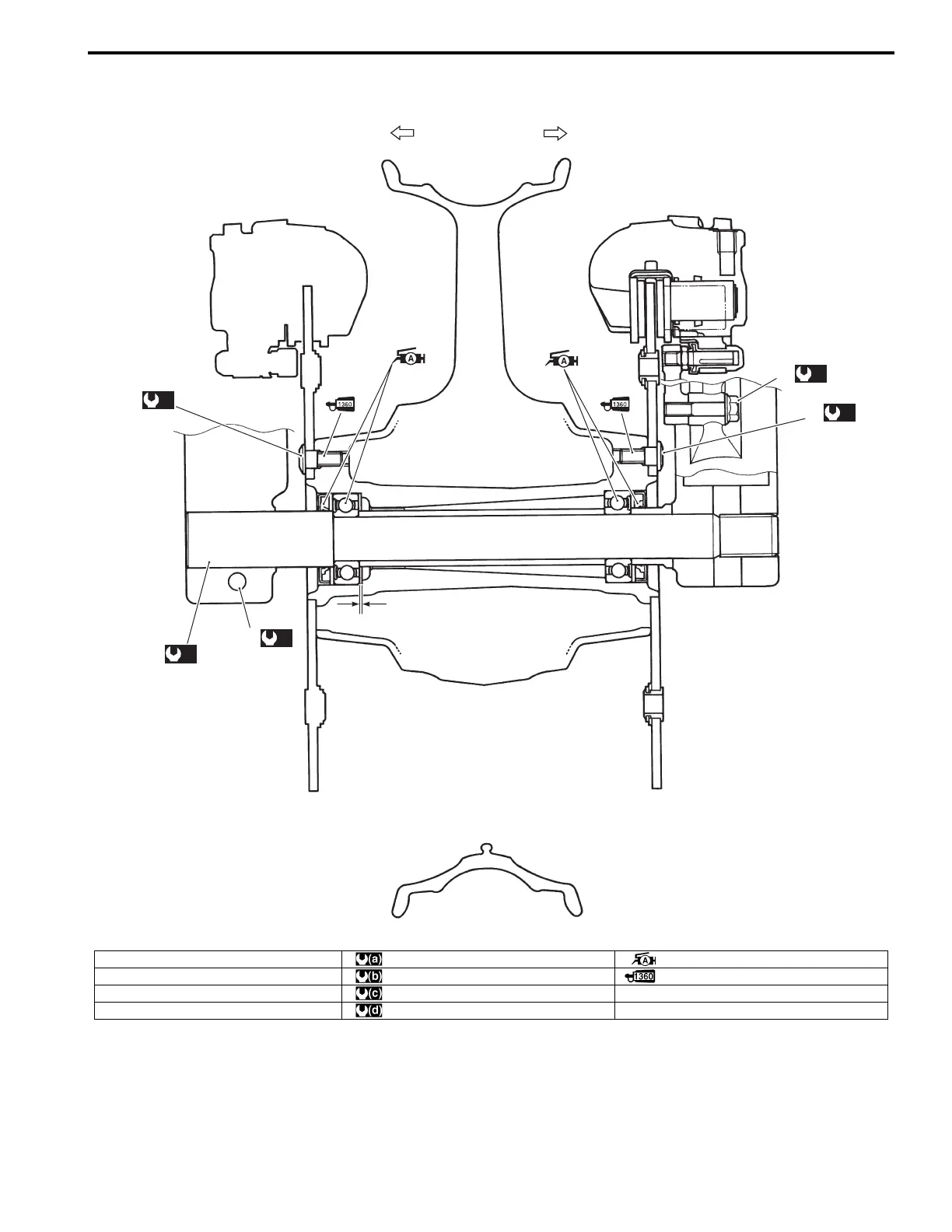

Front Wheel Assembly Construction
B822H12406002
LH
RH
(b)
“a”
(a)
1
(d)
3
(a)
1
(c)
2
I822H1240030-04
1. Brake disc bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft) : Apply grease.
2. Brake caliper mounting bolt : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft) : Apply thread lock to the thread part.
3. Front axle pinch bolt : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
“a”: Clearance : 33 N⋅m (3.3 kgf-m, 24.0 lb-ft)

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
