Suzuki VLR1800 Service Manual

1A-27 Engine General Information and Diagnosis:
DTC “C12” (P0335): CKP Sensor Circuit Malfunction
B822H11104010
Detected Condition and Possible Cause

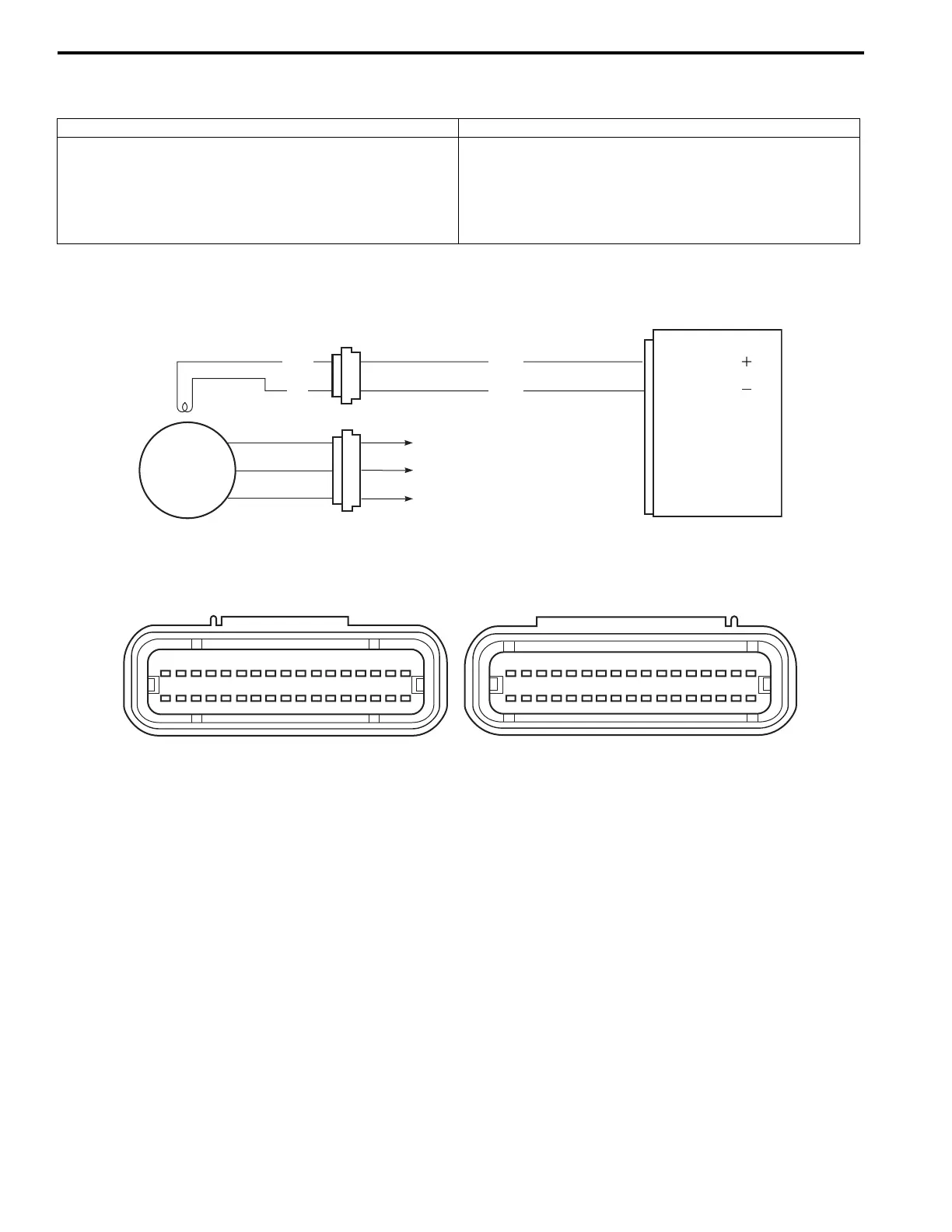

Wiring Diagram
ECM coupler (Harness side)
Detected Condition Possible Cause
The signal does not reach ECM for 3 sec. or more, after
receiving the starter signal.
• Metal particles or foreign material being stuck on the
CKP sensor and rotor tip.
• CKP sensor circuit open or short.
• CKP sensor malfunction.
• ECM malfunction.
Generator
ECM
CKP sensor
CKPS
To the regulator/rectifier
CKPS
G/Bl
G/W
Bl
G
14
31
I822H1110009-02
1 2 3 4 5 6 7 8 9 10 11121314151617
18
18
18 19 20 21 22 23 26 2724 25 28 29 30 31 32 33 34
35
36
37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
53 54 55 56 57 58 59 60 61 62 63 6764 65 66 68
68
6852
52
52
I822H1110010-01

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
