Brake Control System and Diagnosis: 4A-9

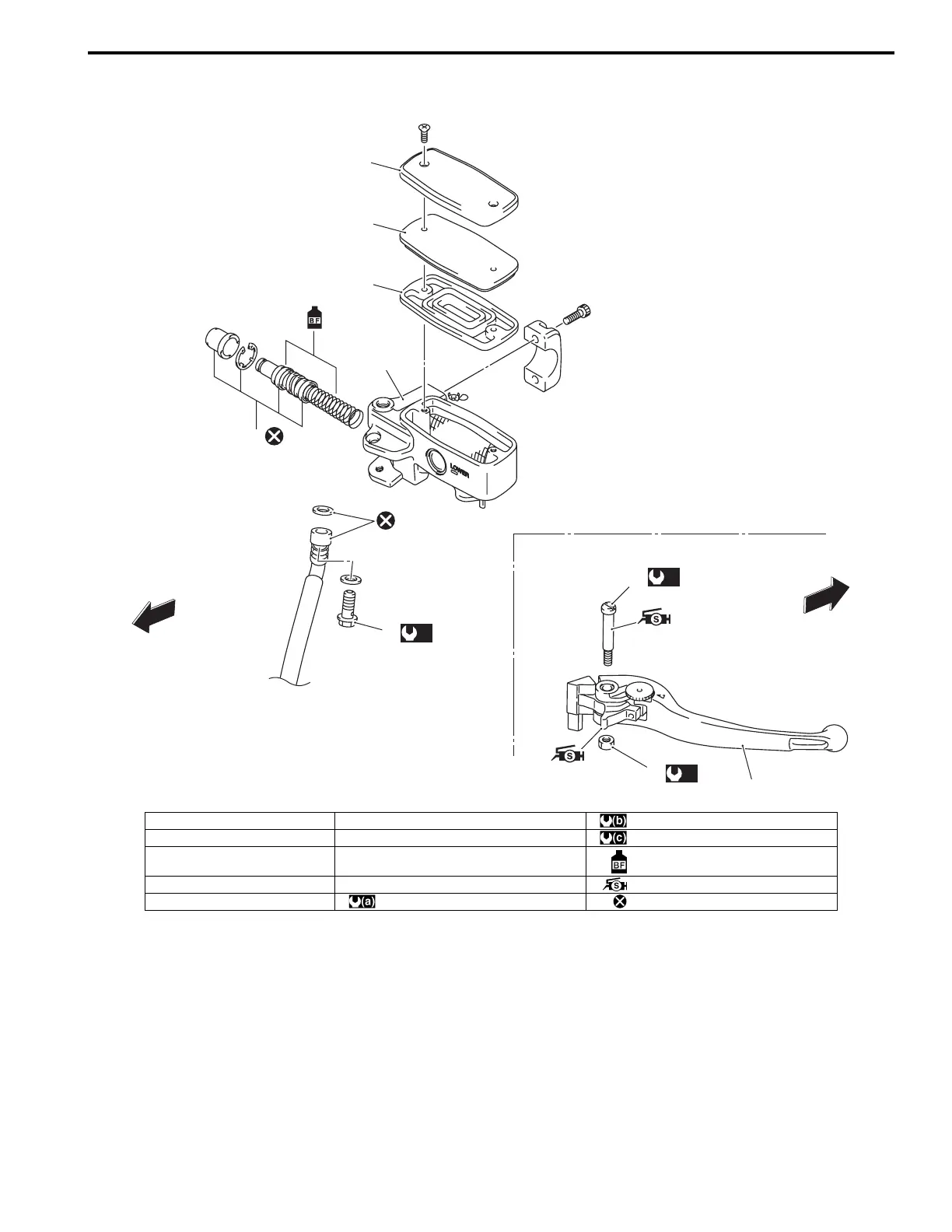

Front Brake Master Cylinder Components
B822H14106011
FWD
FWD
5
1
2
3
4
(a)
6
(b)
8
FWD
FWD
(c)
9
7
I822H1410055-01
1. Reservoir cap 6. Brake hose union bolt : 1 Nâ‹…m (0.1 kgf-m, 0.7 lb-ft)
2. Plate 7. Brake lever : 6 Nâ‹…m (0.6 kgf-m, 4.5 lb-ft)
3. Diaphragm 8. Brake lever pivot bolt : Apply brake fluid.
4. Master cylinder 9. Brake lever pivot bolt lock-nut : Apply silicone grease.
5. Piston/Cup set : 23 Nâ‹…m (2.3 kgf-m, 16.5 lb-ft) : Do not reuse.
