Suzuki VLR1800 Service Manual

Lighting Systems: 9B-7

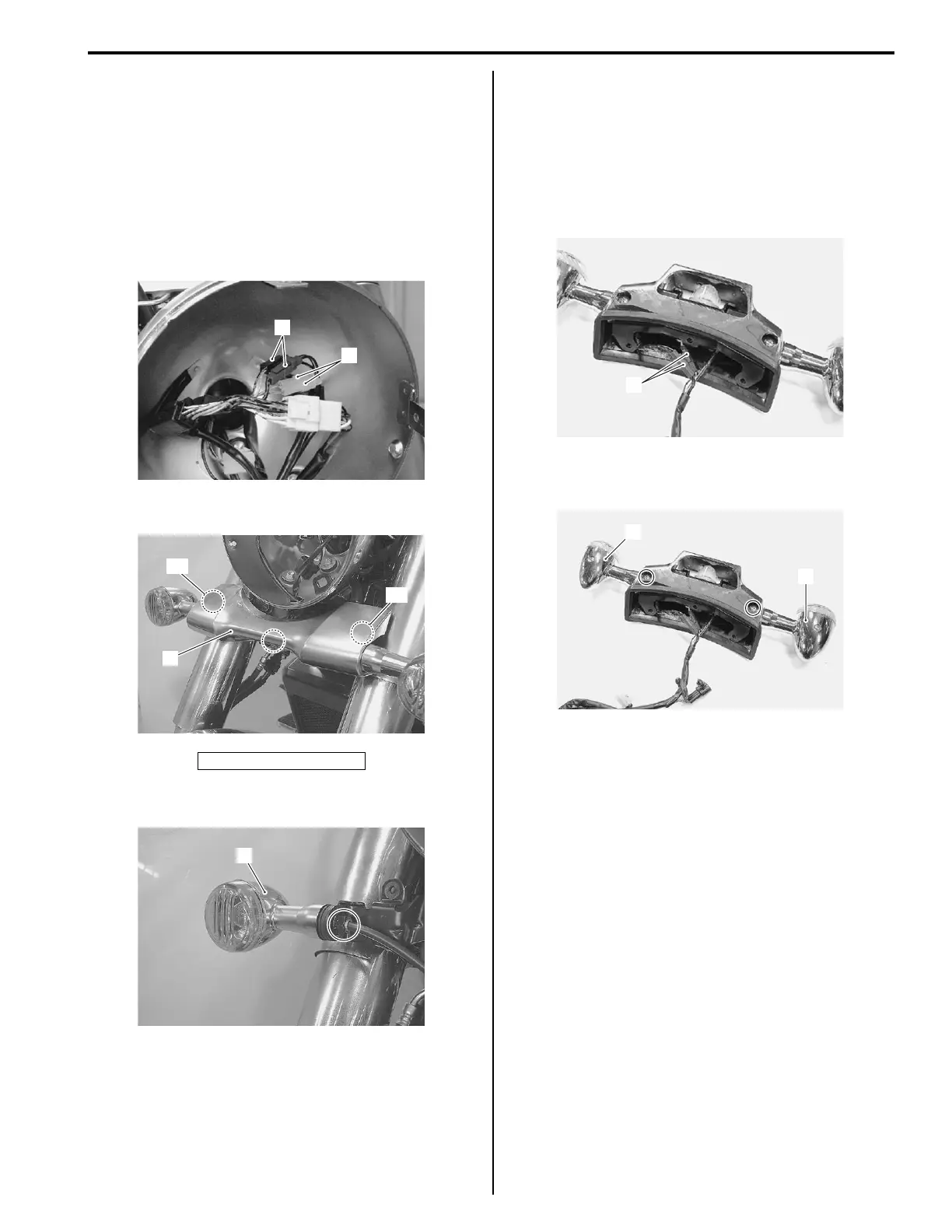

Front Turn Signal Light Removal and
Installation
B822H19206013
Removal
1) Remove the headlight assembly. Refer to “Headlight
Removal and Installation (Page 9B-2)”.
2) Disconnect the turn signal light lead wire couplers
(1).
3) Disconnect the position light lead wire coupler (2)
(For E-03, 28, 33).
4) Remove the front turn signal light cover (3).
5) Remove the turn signal light (4).
Installation
Install the front turn signal light in the reverse order of
removal.
Rear Turn Signal Light Removal and Installation
B822H19206014
Removal
1) Remove the rear fender. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.
2) Remove the turn signal light (1) and disconnect the
turn signal light coupler (RH: Black, LH: Gray) (2).
3) Remove the turn signal lights (3) by removing the
screws.
Installation
Install the rear turn signal light in the reverse order of
removal.
“A”: Hooked position
2
1
I822H1920016-02
3
“A”
“A”
I822H1920017-03
4
I822H1920031-02
2
I822H1920018-01
3
3
I822H1920019-01
