Ignition System: 1H-5
Ignition Coil Removal and Installation
B822H11806009
Removal
1) Turn the ignition switch OFF.
2) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation in Section 1G (Page 1G-8)”.
3) Remove the frame head cover. Refer to “Exterior
Parts Removal and Installation in Section 9D
(Page 9D-3)”.
4) Disconnect the reservoir hose and mounting bolt (1).
5) Loosen the water hose clamp and remove the
condition hose (2) along with radiator conduction.
6) Disconnect the ignition coil lead wires (3).
7) Remove the ignition coil (For #2 cylinder) (4) by
disconnecting the high tension cord.
8) Remove the battery carrier. Refer to “Battery /
Battery Holder Removal and Installation in Section
1J (Page 1J-11)”.
9) Disconnect the ignition coil read wires (5) and
disconnect the high tension cord.
10) Remove the ignition coil (For #1 cylinder) (6).
Installation
Install the ignition coils in the reverse order of removal.
Pay attention to the following points:
• Route the each wiring harness properly. Refer to
“Wiring Harness Routing Diagram in Section 9A
(Page 9A-7)”.
• Install the radiator conduction and conduction hose.
Refer to “Water Hose Routing Diagram in Section 1F
(Page 1F-3)”.
• Pour engine coolant. Refer to “Cooling System
Inspection in Section 0B (Page 0B-15)”.

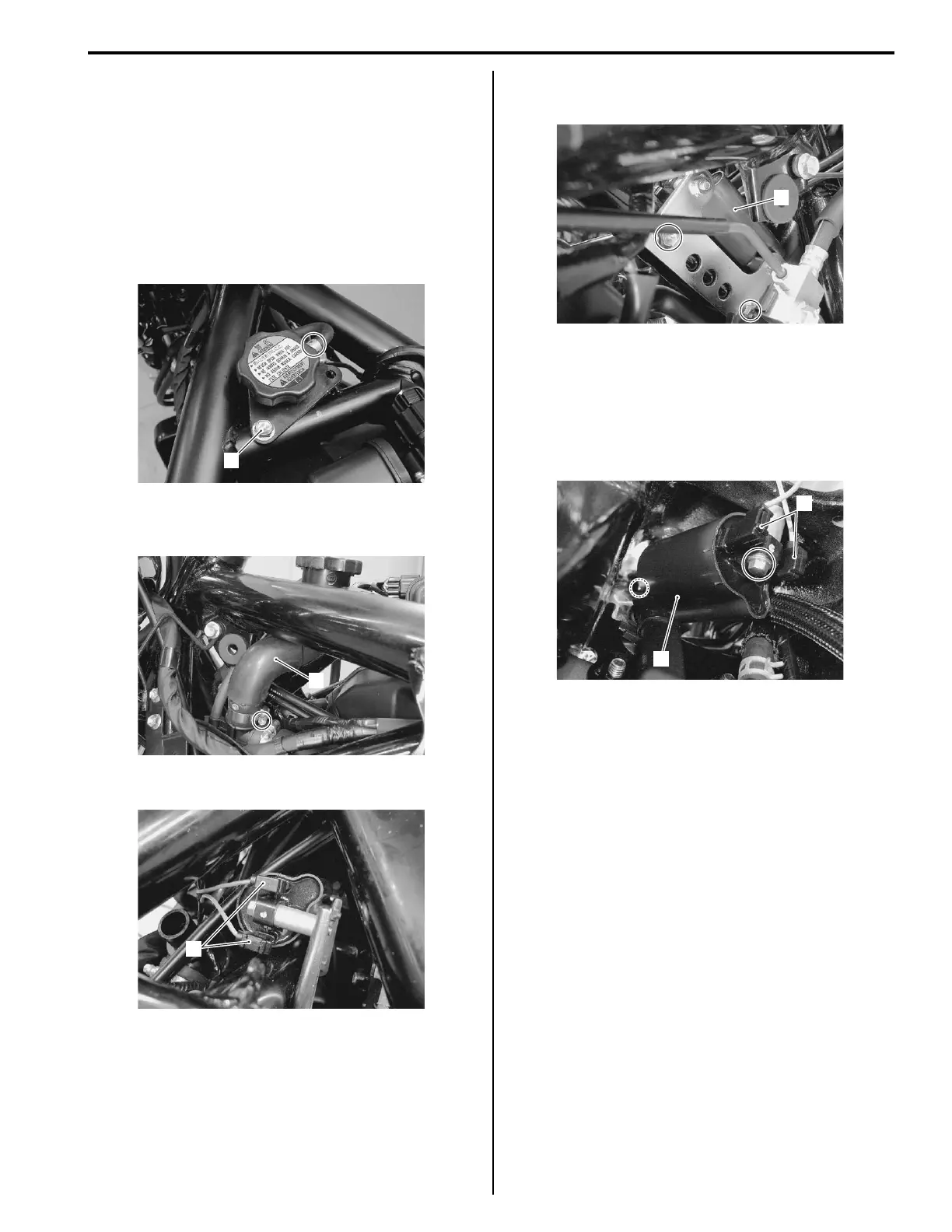

1
I822H1180005-01
2
I822H1180006-01
3
I822H1180007-01
4
I822H1180008-01
5
6
I822H1180009-01
