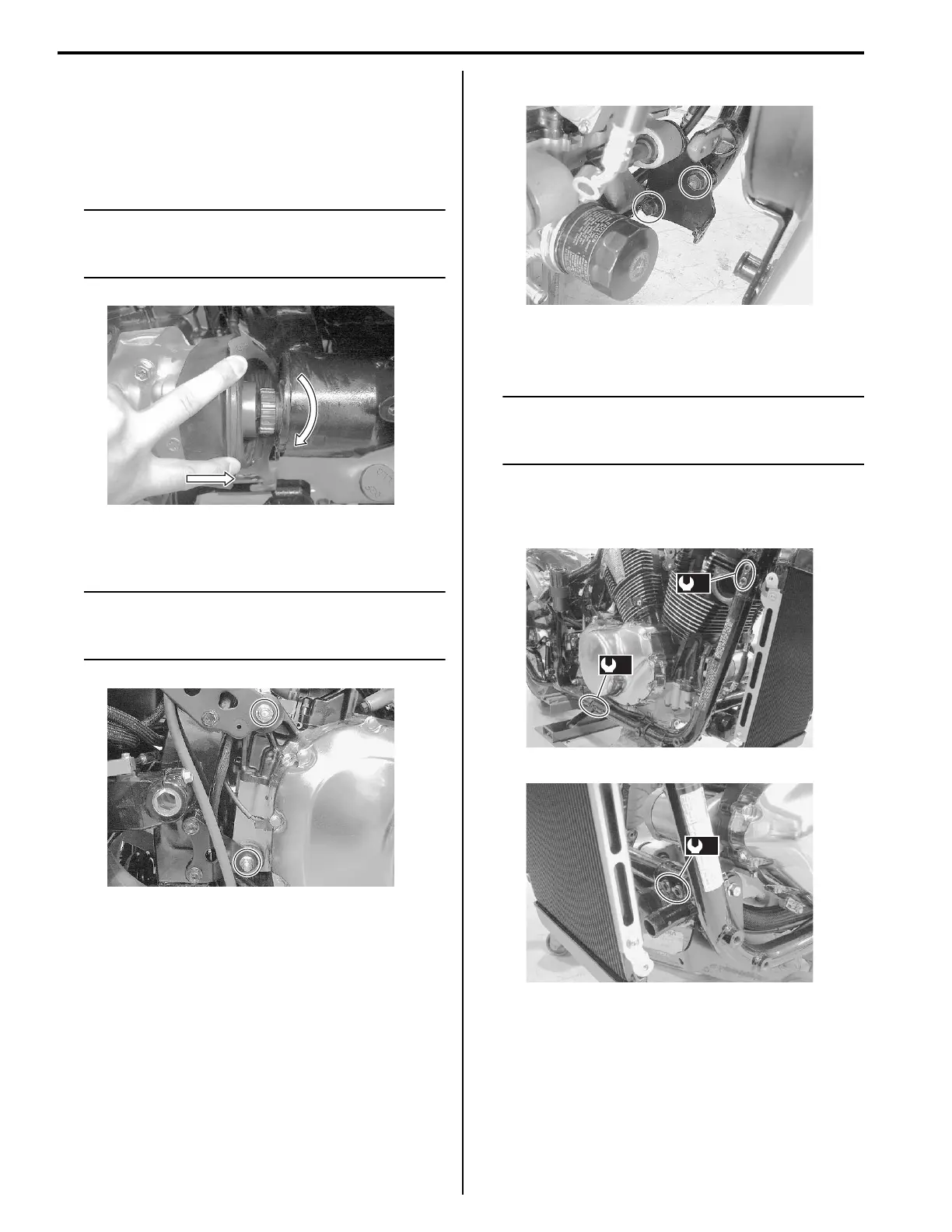

1D-23 Engine Mechanical:
Engine Assembly Installation
B822H11406061
Reinstall the engine in the reverse order of engine
removal. Pay attention to the following points:
• Install the driven bevel gear coupling to the universal
joint.
NOTE
When installing the driven bevel gear
coupling, align the splines by turning the rear
wheel slowly by hand.
• Insert the two mounting bolts from left side, and
tighten their nuts.
NOTE
The engine mounting nuts are self-locking.
Once the nuts have been removed, they are
no longer of any use.
• Tighten the engine mounting bracket bolts.
• Install the frame down tube (1).
• Tighten the bolts and nuts to the specified torque.
NOTE
The frame down tube nuts are self-locking.
Once the nuts have been removed, they are
no longer of any use.
Tightening torque
Frame down tube bolt (a): 50 N·m (5.0 kgf-m, 36.0
lb-ft)
I822H1140394-01
I822H1140392-01
I822H1140395-02
(a)
(a)
I822H1140396-02
(a)
I822H1140397-02
To Next Page
