Engine Mechanical: 1D-22

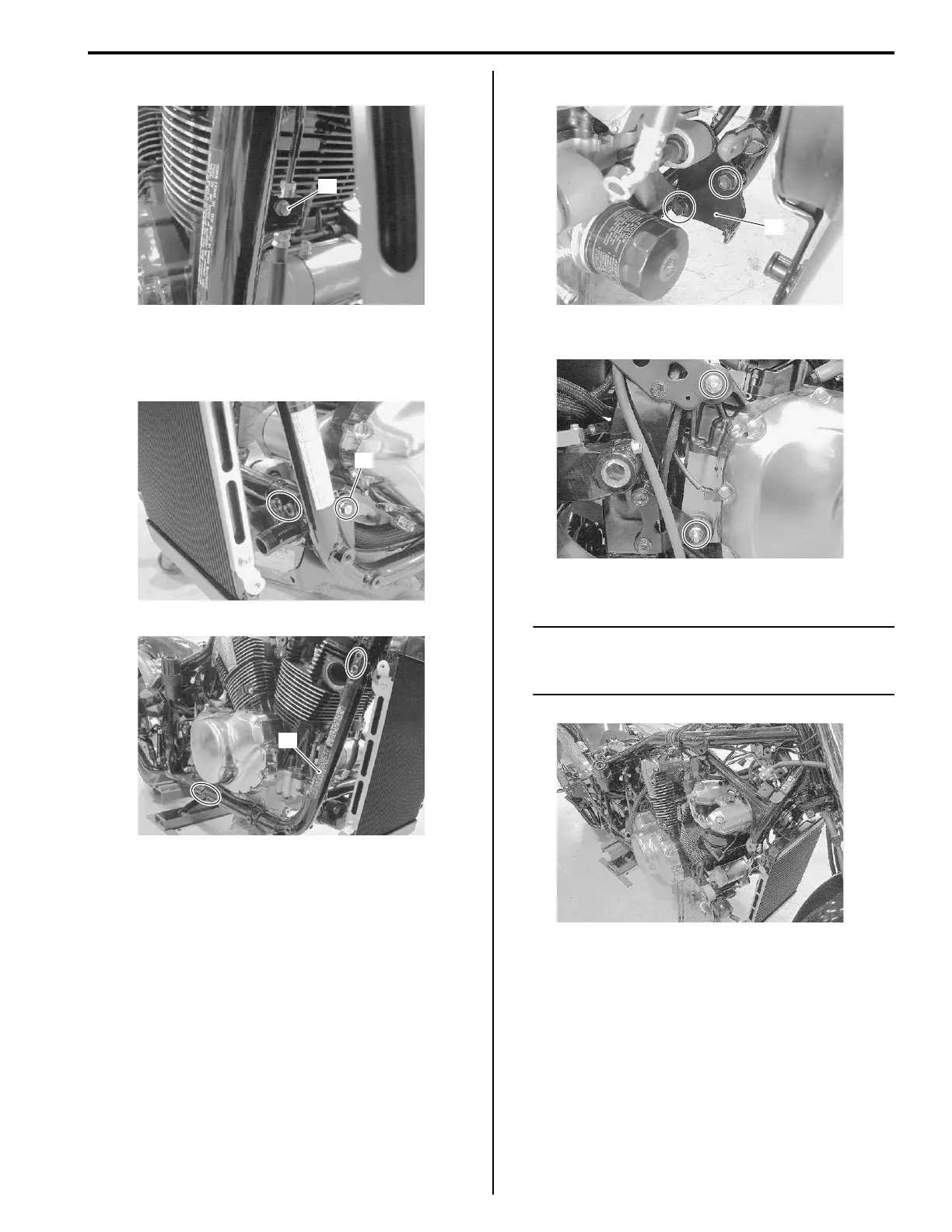

29) Remove the rear brake hose clamp bolt (25).
30) Remove the engine mounting bolt and nut (26).
31) Remove the frame down tube (27) by removing their
bolts and nuts.
32) Remove the engine bracket (28).
33) Remove the engine mounting bolts and nuts.
34) Remove the engine assembly.
NOTE
Care should be taken not to drop the engine
accidentally when the engine mounting bolts
and nuts are removed.
25
I822H1140388-01
26
I822H1140389-01
27
I822H1140390-01
28
I822H1140391-01
I822H1140392-01
I822H1140393-01

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
