1A-71 Engine General Information and Diagnosis:
1 6) Disconnect the ECM coupler. Refer to “ECM Removal
and Installation in Section 1C (Page 1C-1)”.

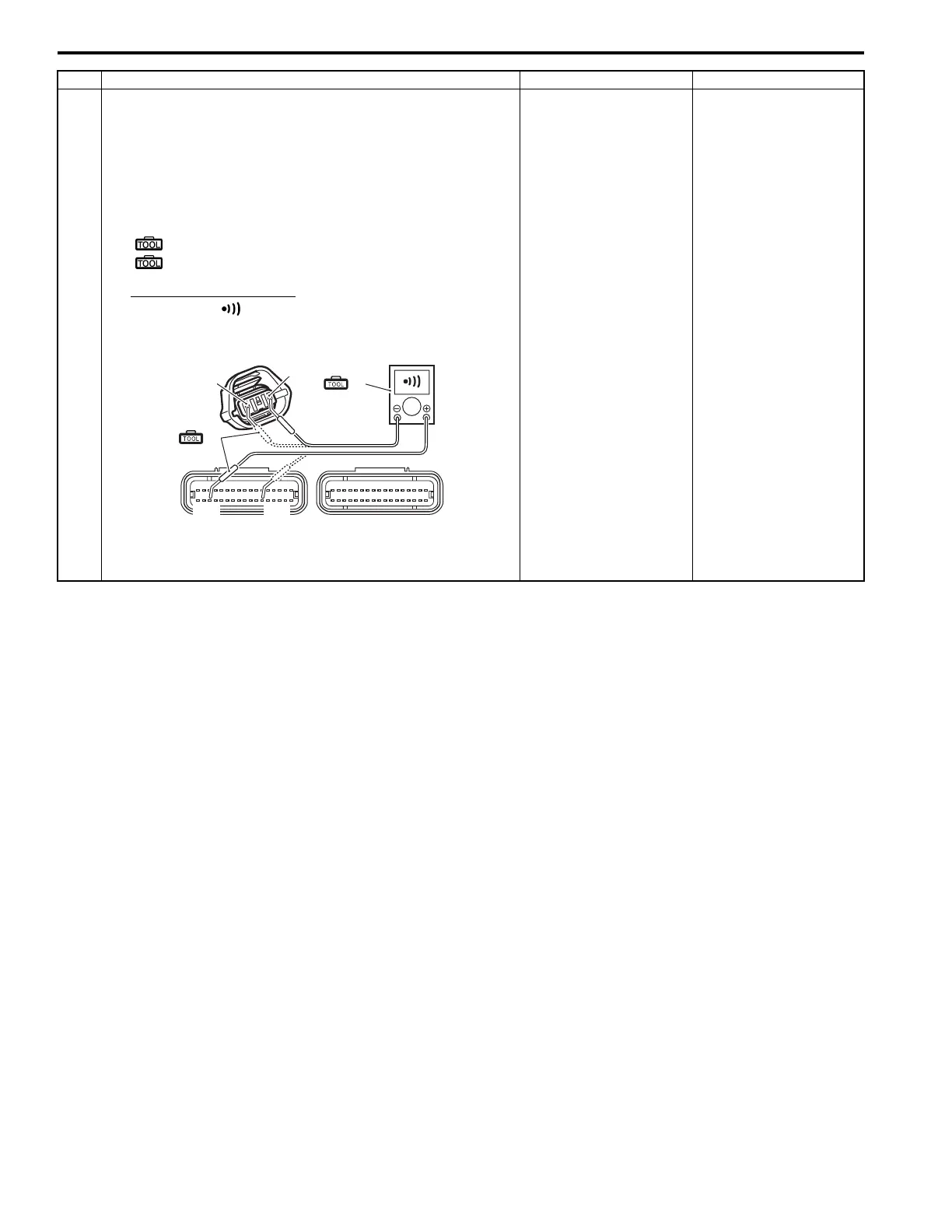

7) Check the continuity between the Y/W wire “A” and
terminal “20”.
Also, check the continuity between the B/Br wire “C” and
terminal “29”.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
(B): 09900–25009 (Needle pointed probe set)
Tester knob indication
Continuity ( )
ECM couplers (Harness side)
Is the continuity OK?
Go to Step 3. Y/W wire shorted to
VCC, or B/Br wire open.
Step Action Yes No
(Black)
(Gray)
(A)
(B)
“C”
“A”
“20”
“29”
I822H1110067-01
