Engine General Information and Diagnosis: 1A-94

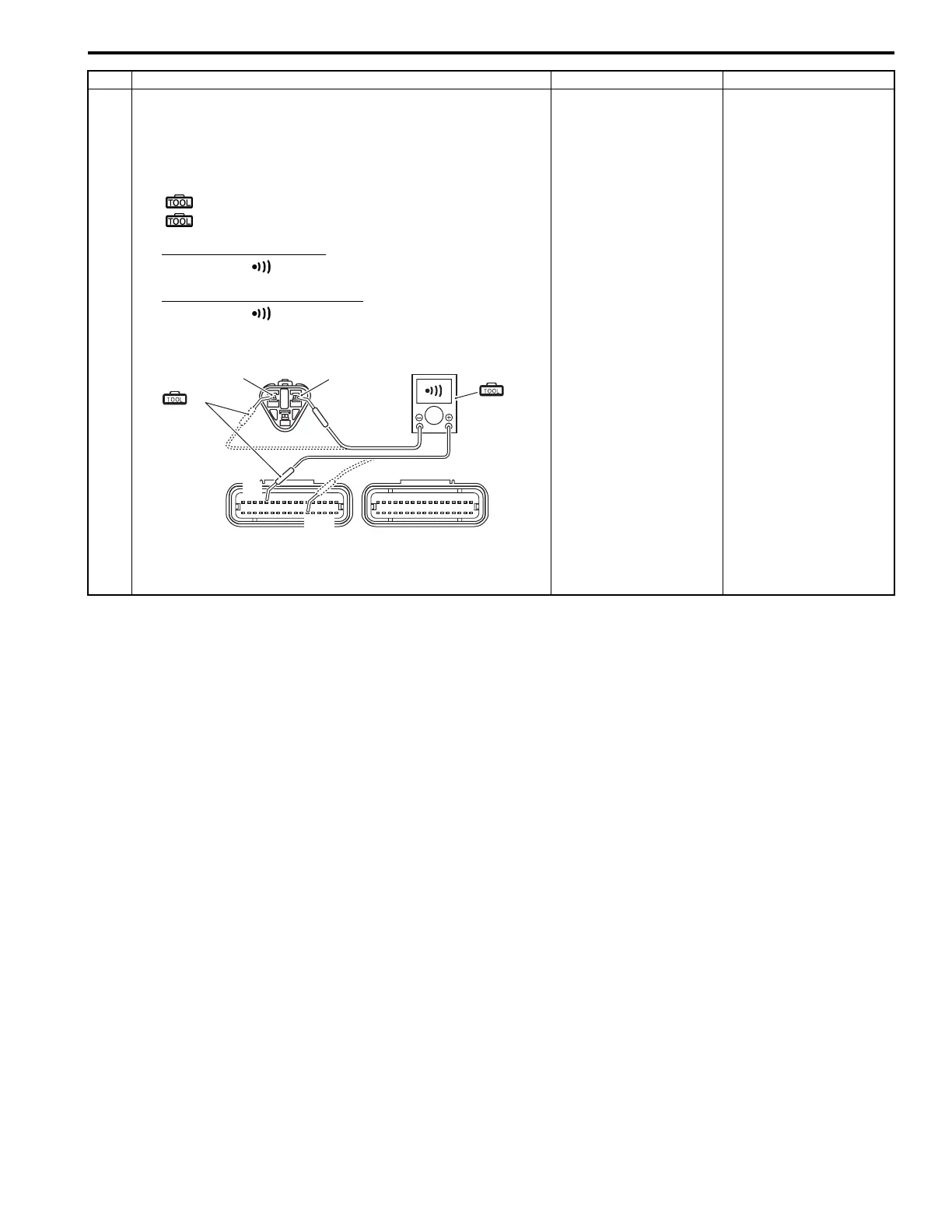

1 7) Check the continuity between Y wire “A” and terminal
“5”.
Also, check the continuity between B/Br wire “B” and
terminal “29”.
Special tool
: 09900–25008 (Multi-circuit tester set)
: 09900–25009 (Needle pointed probe set)
Tester knob indication
Continuity ( )
EXCVA lead wire continuity
Continuity ( )
ECM couplers (Harness side)
Is the continuity OK?
Go to Step 4. Lbl wire shorted to VCC,
or B/Br wire open.
Step Action Yes No
(Black) (Gray)
(A)
(B)
“29”
“5”
“A”
“B”
I822H1110107-01
