Suzuki VLR1800 Service Manual

Engine General Information and Diagnosis: 1A-98

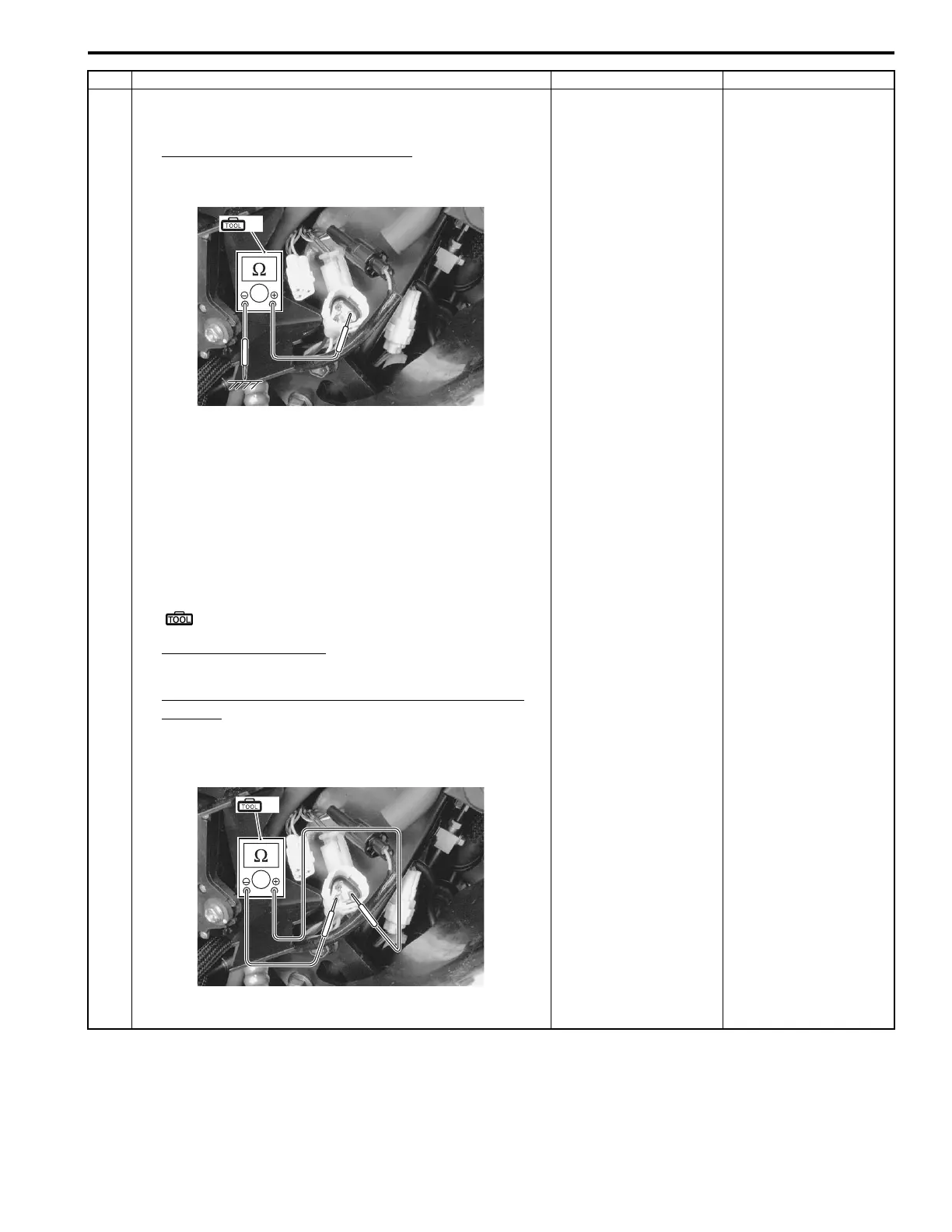

3 1) Turn the ignition switch OFF.
2) Check the continuity between Y wire and ground.
EXCVA position sensor continuity
∞ Ω (Infinity)
3) If OK, then measure the EXCVA position sensor
resistance.
4) Connect the EXCVA position sensor coupler and set the
EXCVA to adjustment position. Refer to “EXCVA / EXCV
Cable Removal and Installation in Section 1K (Page 1K-
4)”.
5) Disconnect the EXCVA position sensor coupler and
measure the resistance (between Y and W wires).
Special tool
(A): 09900–25008 (Multi-circuit tester set)
Tester knob indication
Resistance (Ω)
EXCVA position sensor resistance at adjustment
position
Approx. 3.1 kΩ
((+) Y – (–) W)
Is the resistance OK?
Go to Step 4. Replace the EXCVA
with a new one.
Step Action Yes No
(A)
I822H1110112-01
(A)
I822H1110113-01
