Suzuki VLR1800 Service Manual

Engine General Information and Diagnosis: 1A-100

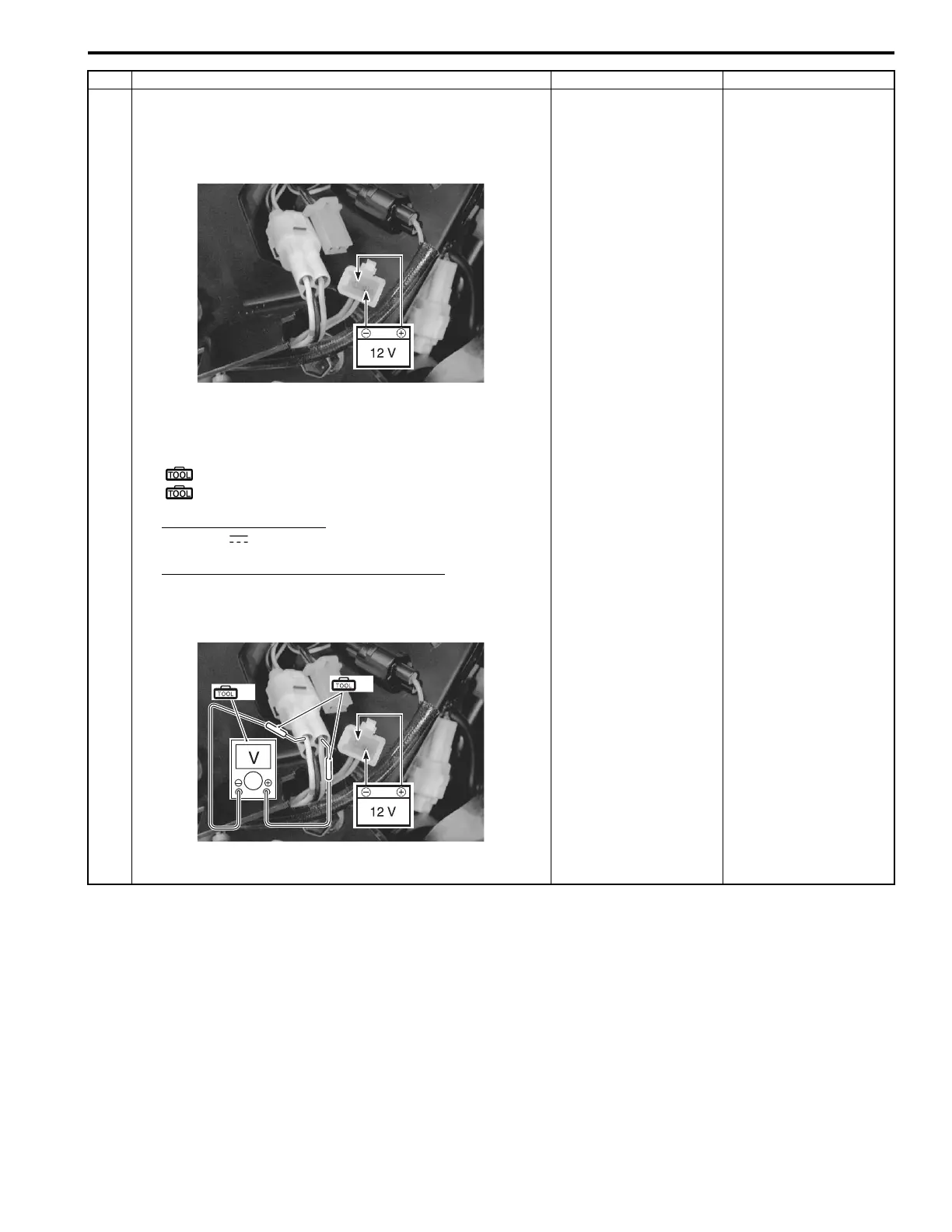

4 8) Then, to set the EXCV to fully opened position, apply 12
V to the terminals oppositely.
Positive wire – Gr wire terminal
Negative wire – P wire terminal
9) Measure the EXCVA position sensor output voltage at
EXCV fully opened position.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
(B): 09900–25009 (Needle pointed probe set)
Tester knob indication
Voltage ( )
EXCVA position sensor output voltage
EXCV is fully opened: 3.5 – 4.5 V
((+) Y – (–) W)
Is the voltage OK?
Replace the ECM with a
known good one, and
inspect it again.
Go to Step 5.
Step Action Yes No
I822H1110115-01
(A)
(B)
I822H1110116-01

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
