0A-7 General Information:
Component Location

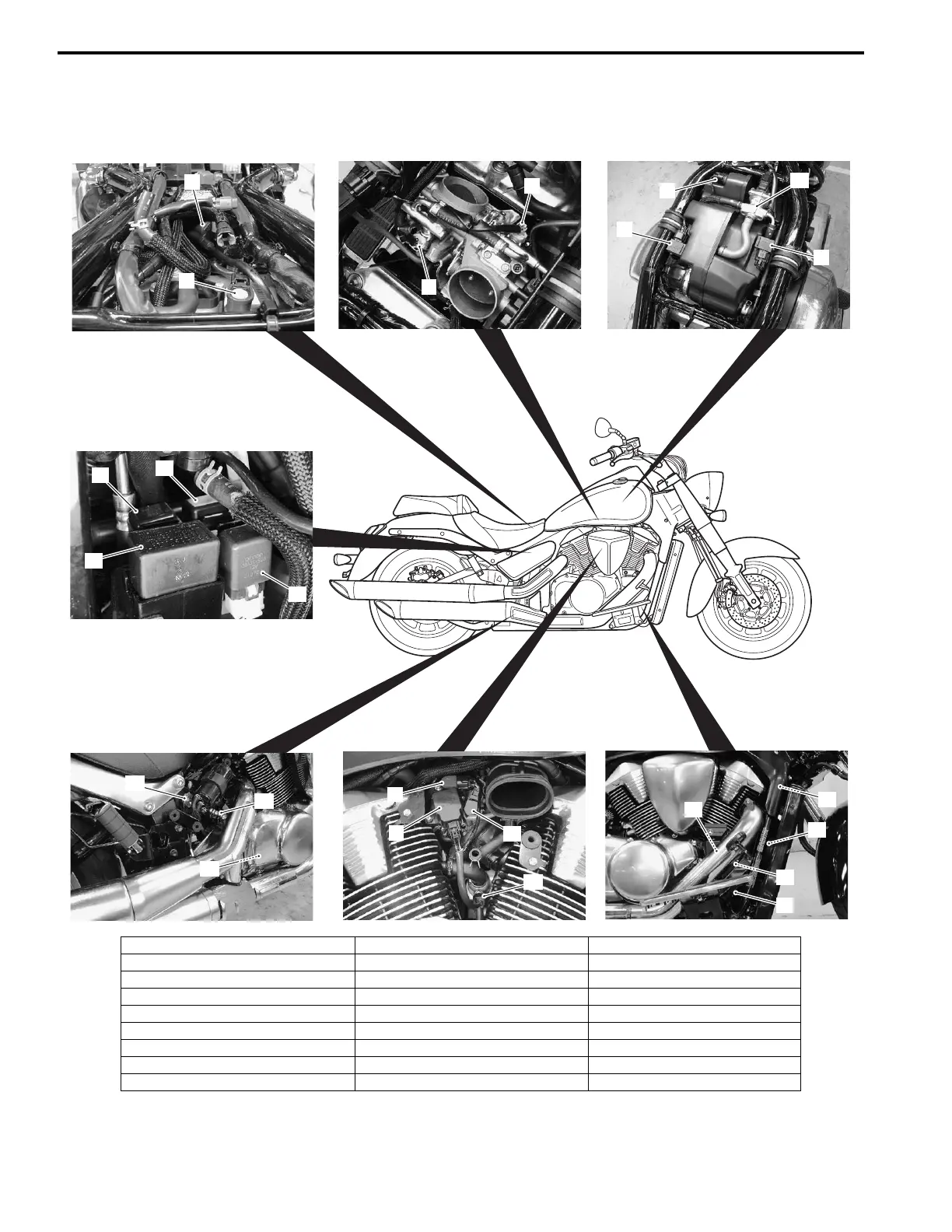

Electrical Components Location
B822H10103001
7
5
4
3
6
2
1
23
12
13
18
11
19
8
9
22
10
21
12
20
14
15
16
17
I822H1010007-03
1. IAP sensor (#2) 10. TP sensor 19. Rear brake switch
2. IAP sensor (#1) 11. Starter motor 20. GP switch
3. Fuel injector (#1) 12. O2 sensor (For E-02, 19, 24, 33) 21. EXCV actuator
4. Fuel injector (#2) 13. Horn 22. ECT sensor
5. Ignition coil (#1) 14. Turn signal/Side-stand relay 23. ISC valve
6. IAT sensor 15. Fuel pump relay
7. Ignition coil/Plug cap (#1) 16. Headlight relay
8. STP sensor 17. Cooling fan relay
9. STV actuator 18. Cooling fan
