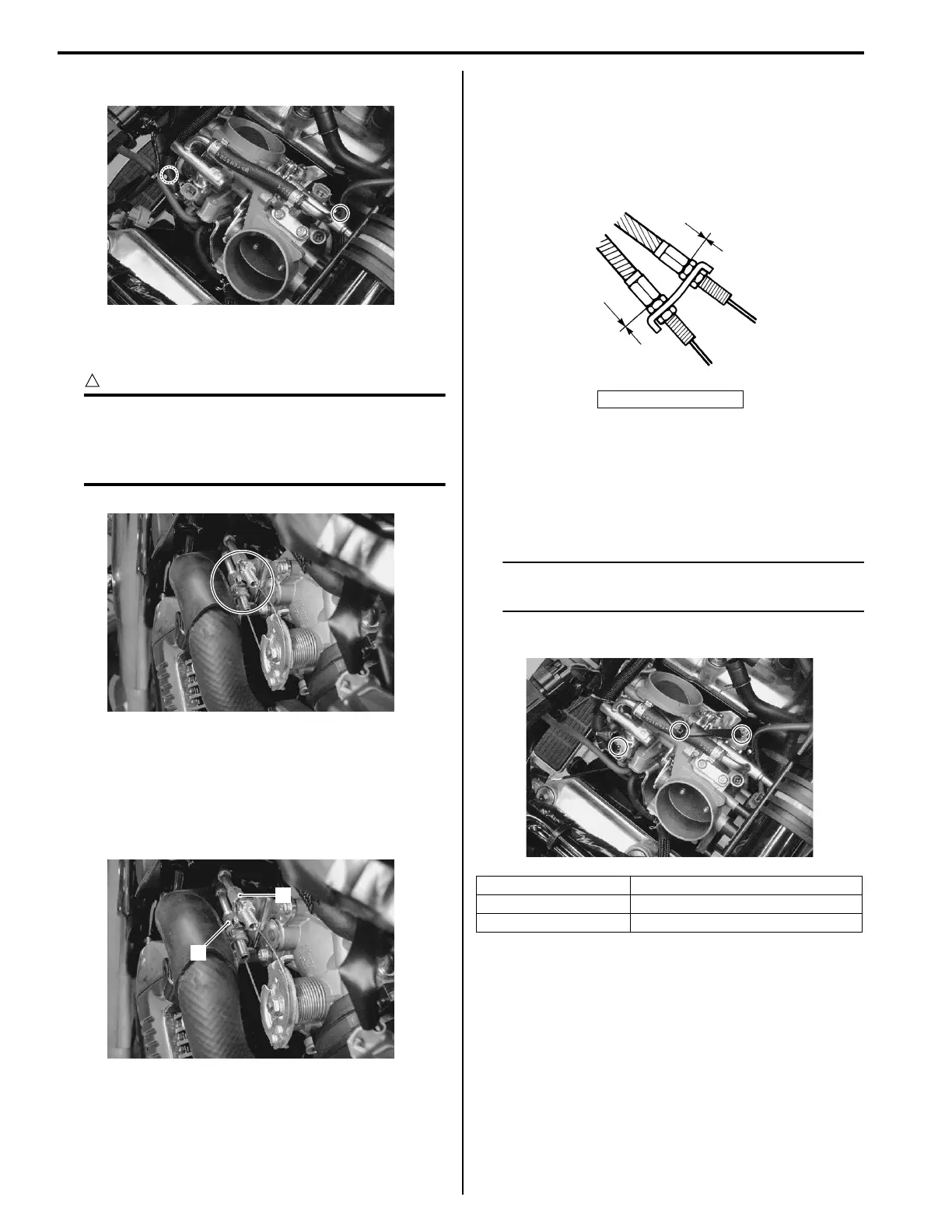

1D-11 Engine Mechanical:
7) Loosen the throttle body clamp screws.
8) Disconnect the throttle cables from the throttle body
and remove the throttle body assembly.
CAUTION
!
After disconnecting the throttle cables, do
not snap the throttle valve from the open to
full close. It may cause damage to the throttle
valve and throttle body.
Installation
Install the throttle body in the reverse order of removal.
Pay attention to the following points:
• Connect the throttle pulling cable (1) and throttle
returning cable (2) to the throttle body.
• Tighten the throttle body clamp screws. Refer to
“Throttle Body Construction (Page 1D-9)”.
• Loosen each throttle cable lock-nut.
• Turn in each throttle cable adjuster fully and locate
each outer cable so that the clearance “a” is 0 mm (0
in).
• Tighten each lock-nut.
• Adjust the throttle cable play. Refer to “Throttle Cable
Play Inspection and Adjustment in Section 0B
(Page 0B-14)”.
• Connect the fuel injector couplers.
NOTE
Make sure that each coupler is installed in
the correct position.
• Connect the clamp.
I822H1140013-02
I822H1140014-01
1
2
I822H1140015-01
“a”: 0 mm (0 in)
Coupler Wire color
Front Y/R and Gr/B
Rear Y/R and Gr/W
“a”
“a”
I822H1140016-01
I822H1140017-01
To Next Page
