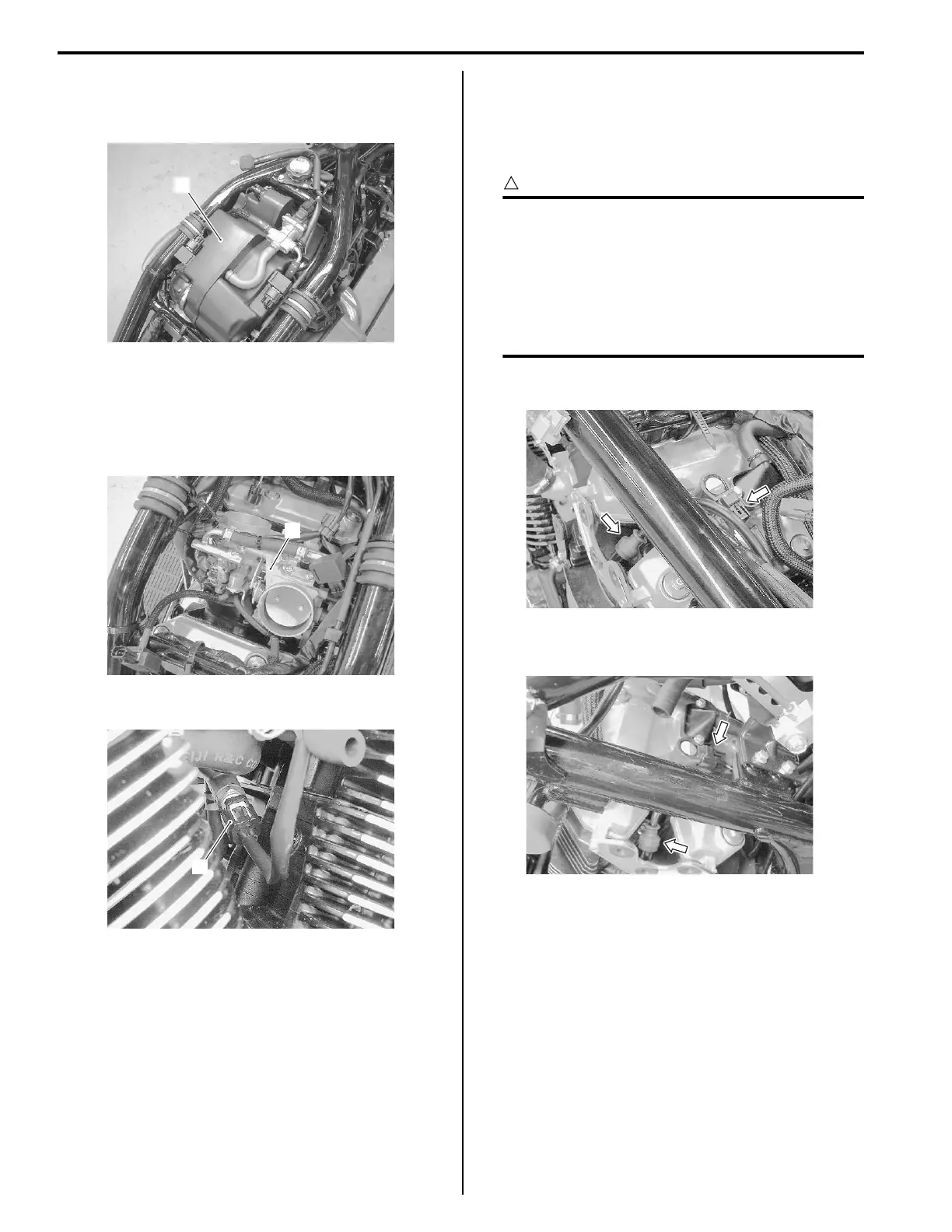

1D-19 Engine Mechanical:
7) Remove the air cleaner chamber (1). Refer to “Air
Cleaner Chamber Removal and Installation
(Page 1D-6)”.
8) Remove the exhaust pipes and mufflers. Refer to
“Exhaust Pipe / Muffler Removal and Installation in
Section 1K (Page 1K-9)”.
9) Remove the throttle body (2). Refer to “Throttle Body
Removal and Installation (Page 1D-10)”.
10) Disconnect the ECT sensor coupler (3).
11) Disconnect the ignition coil/plug cap lead wire
couplers and remove the ignition coils/plug caps.
Refer to “Ignition Coil / Plug Cap and Spark Plug Cap
Removal and Installation in Section 1H (Page 1H-
4)”.
CAUTION
!
Do not remove the ignition coil/plug cap
before disconnecting its coupler.
Do not pry up the ignition coil/plug cap
with a screw driver or a bar to avoid its
damage.
Be careful not to drop the ignition coil/plug
cap to prevent its short or open circuit.
#1 Cylinder
#2 Cylinder
1
I822H1140365-01
2
I822H1140366-01
3
I822H1140367-01
I822H1140368-01
I822H1140369-01
