Suzuki VLR1800 Service Manual

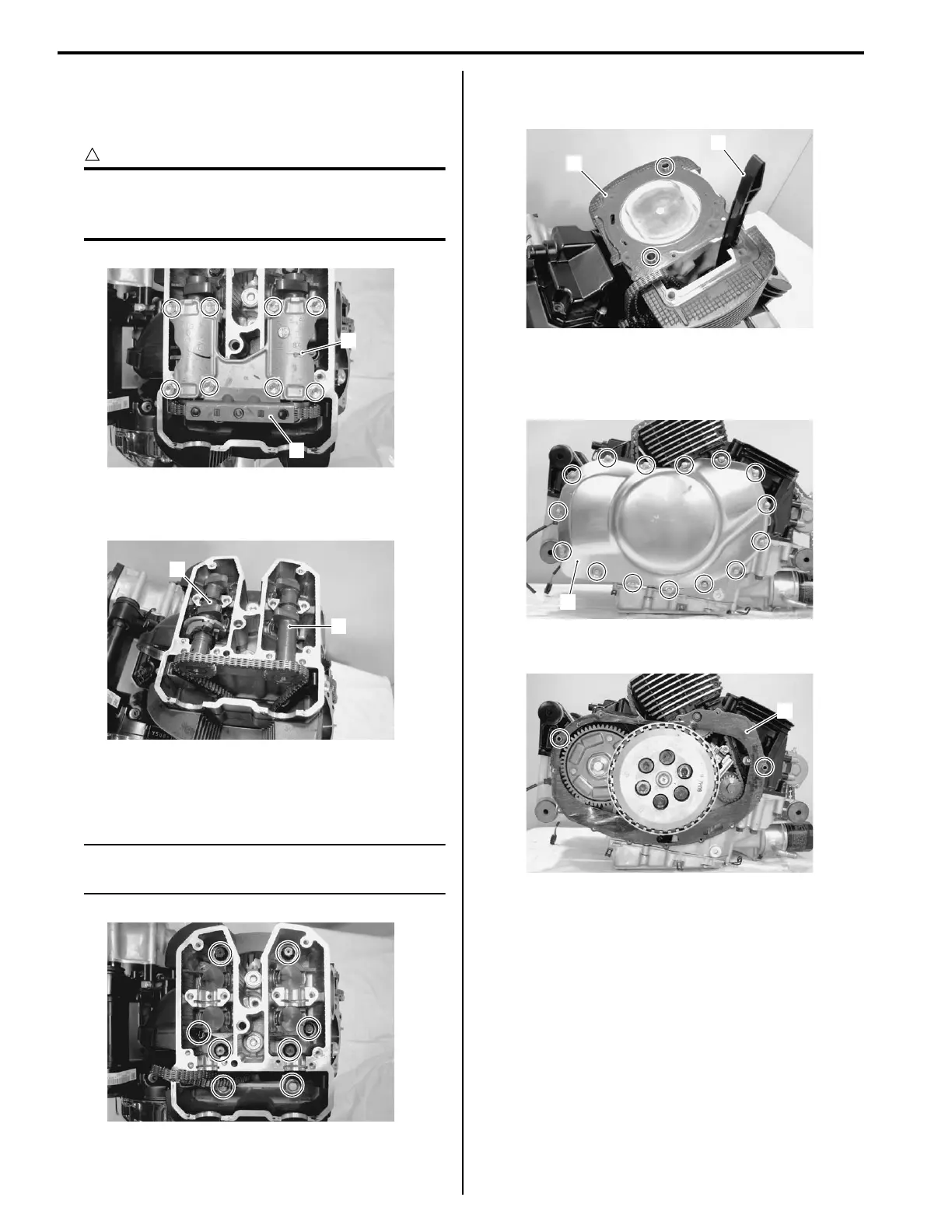

1D-29 Engine Mechanical:
4) Remove the cam chain guide No. 3 (3).
5) Remove the camshaft journal holder (4).
6) Remove the dowel pins.
CAUTION
!
Be sure to loosen the camshaft journal
holder bolts evenly by shifting the wrench in
the descending order of numbers.
7) Remove the intake camshaft (5) and exhaust
camshaft (6).
Rear Cylinder Head
1) Remove the rear cylinder head.
NOTE
Loosen the cylinder head bolts little by little
diagonally with the smaller sizes first.
2) Remove the rear cylinder gasket (1) and dowel pins.
3) Remove the rear cam chain guide No. 2 (2).
Clutch Cover
1) Remove the clutch cover (1).
2) Remove the dowel pins and gasket (2).
4
3
I822H1140060-01
5
6
I822H1140061-01
I822H1140062-01
1
2
I822H1140063-01
1
I822H1140336-01
2
I822H1140337-01

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
