Suzuki VLR1800 Service Manual

1D-67 Engine Mechanical:

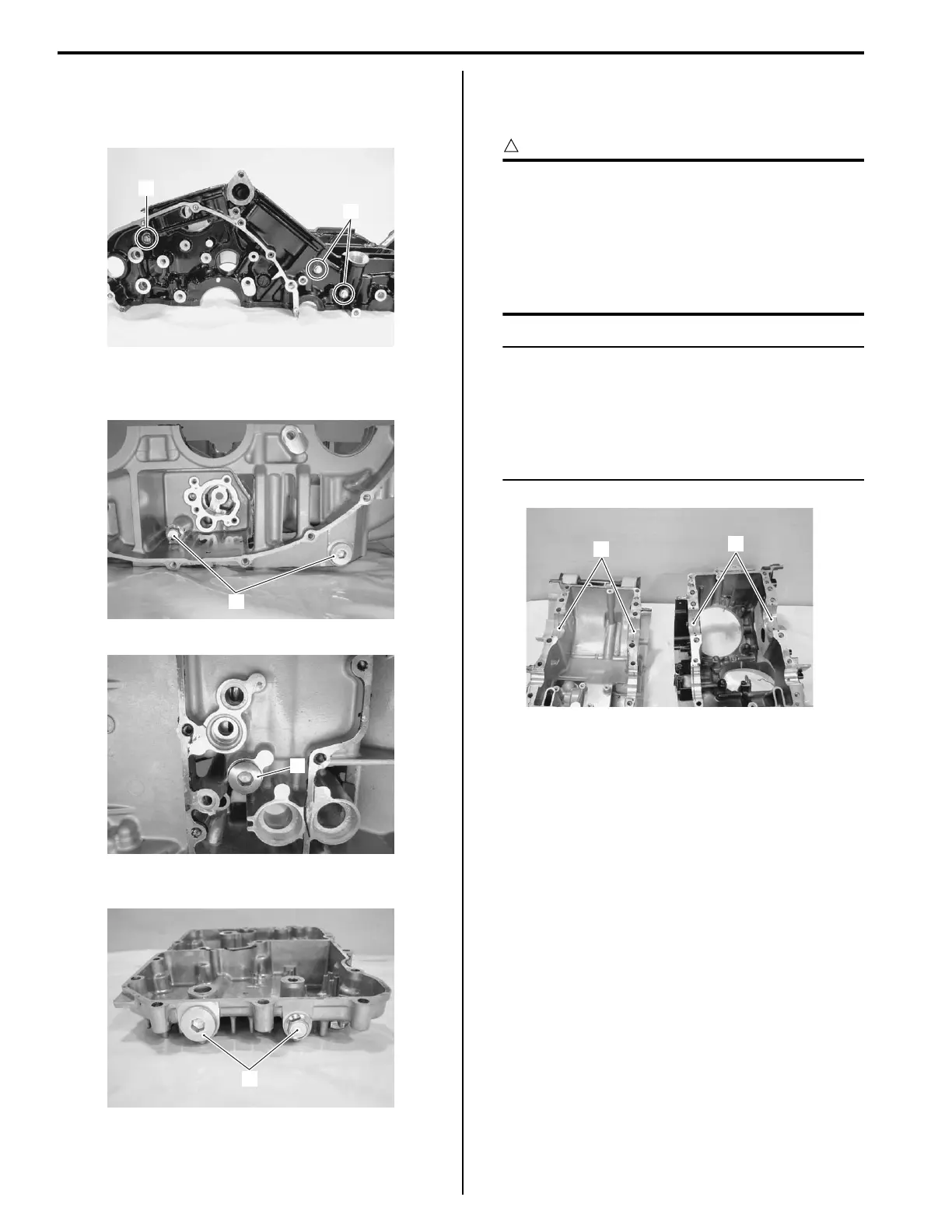

Oil Gallery Plug
1) Remove the oil gallery plugs (1) from the upper
crankcase.
2) Remove the oil gallery plugs (2) from the lower
crankcase.
3) Remove the oil gallery plugs (3) from the oil pan.
Crankshaft Journal Bearing
Remove the crankshaft journal bearings (1), upper and
lower.
CAUTION
!
• When removing the crankshaft journal
bearings, be careful not to scratch the
crankcase and the crankshaft journal
bearings.
• Do not touch the bearing surfaces with
your hands. Grasp the bearings by their
edges.
NOTE
• Do not remove the crankshaft journal
bearings unless absolutely necessary.
• Make a note of where the crankshaft
journal bearings are removed from so that
they can be reinstalled in their original
positions.
1
1
I822H1140206-01
2
I822H1140207-01
2
I822H1140208-01
3
I822H1140209-01
1
1
I822H1140210-01

Suzuki VLR1800 Specifications

General

Manufacturer	Suzuki
Model	VLR1800
Compression Ratio	10.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed
Category	Cruiser
Displacement	1783 cc
Ignition	Electronic ignition (Transistorized)
Final Drive	Shaft
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Single disc
Ground Clearance	140 mm
Seat Height	705 mm
